Vascular Graft Tunneler Instrumentation
Getinge's Tunneler Instrumentation is designed to minimize tunnel size to meet graft diameter, resulting in a smaller tunnel and less soft tissue trauma compared to larger diameter sheath systems. [1]
The Vascular Graft Tunneling System is designed to create a subcutaneous tunnel for the placement of a vascular graft in both peripheral and AV access applications. While the Tunneler System can be used with a graft that does not feature a Slider Graft Deployment System (GDS). The Tunneler System and its components are made of surgical-grade stainless steel and are designed for multiple reuse when properly maintained.

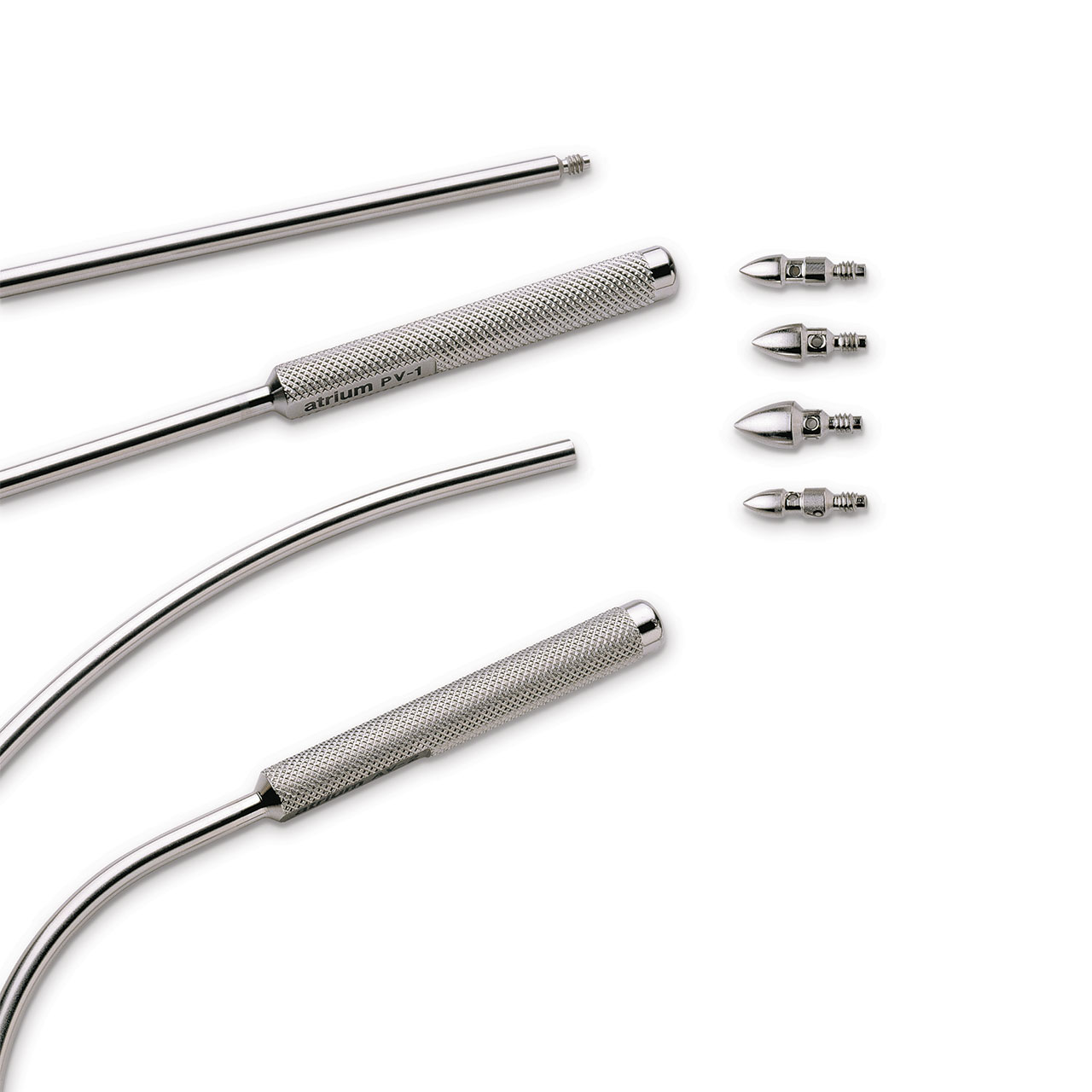

The Tunneler System comes with 4 Tunneler rod configurations to accommodate both AV Access loop graft placement and bypass graft placement.
The Tunneler System is designed to interface with the SLIDER GDS and:
- minimize tunnel size to meet graft diameter, resulting in a smaller tunnel and less soft tissue trauma compared to larger diameter sheath systems. [1]

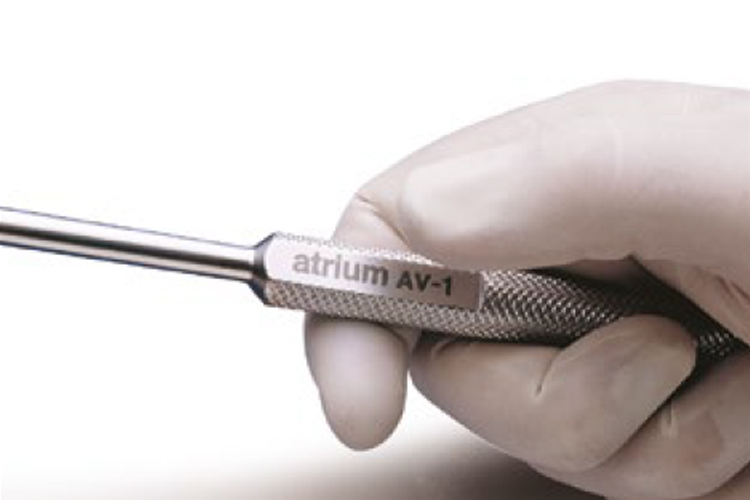

- Tunneler rod handles are knurled for better gripping and are equipped with a direction tab to increase control in tunnel placement.

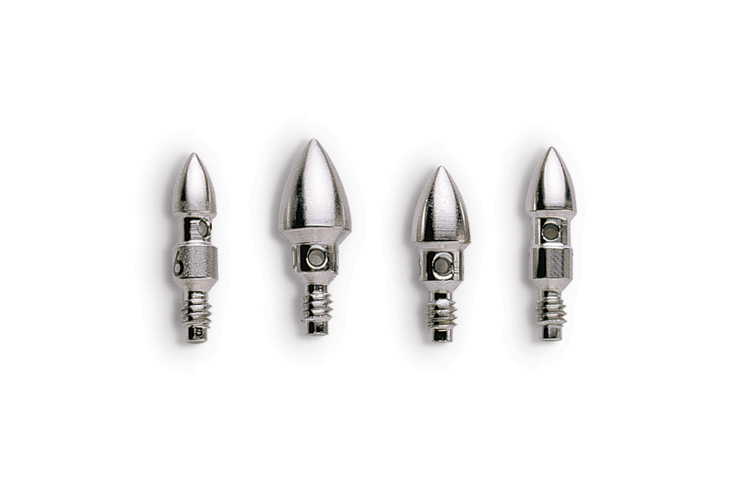

An assortment of blunt and pointed tips are available.
Peer reviewed published data supporting the clinical benefits observed by physicians who have used the Vascular Graft Tunneling System is available upon request. [1]

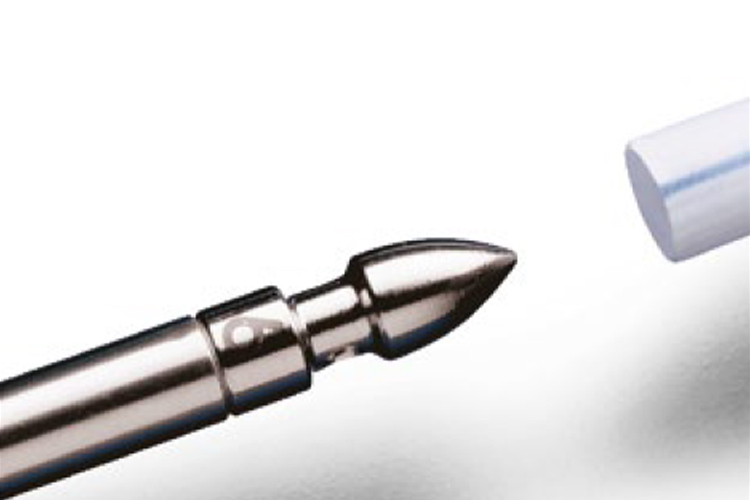

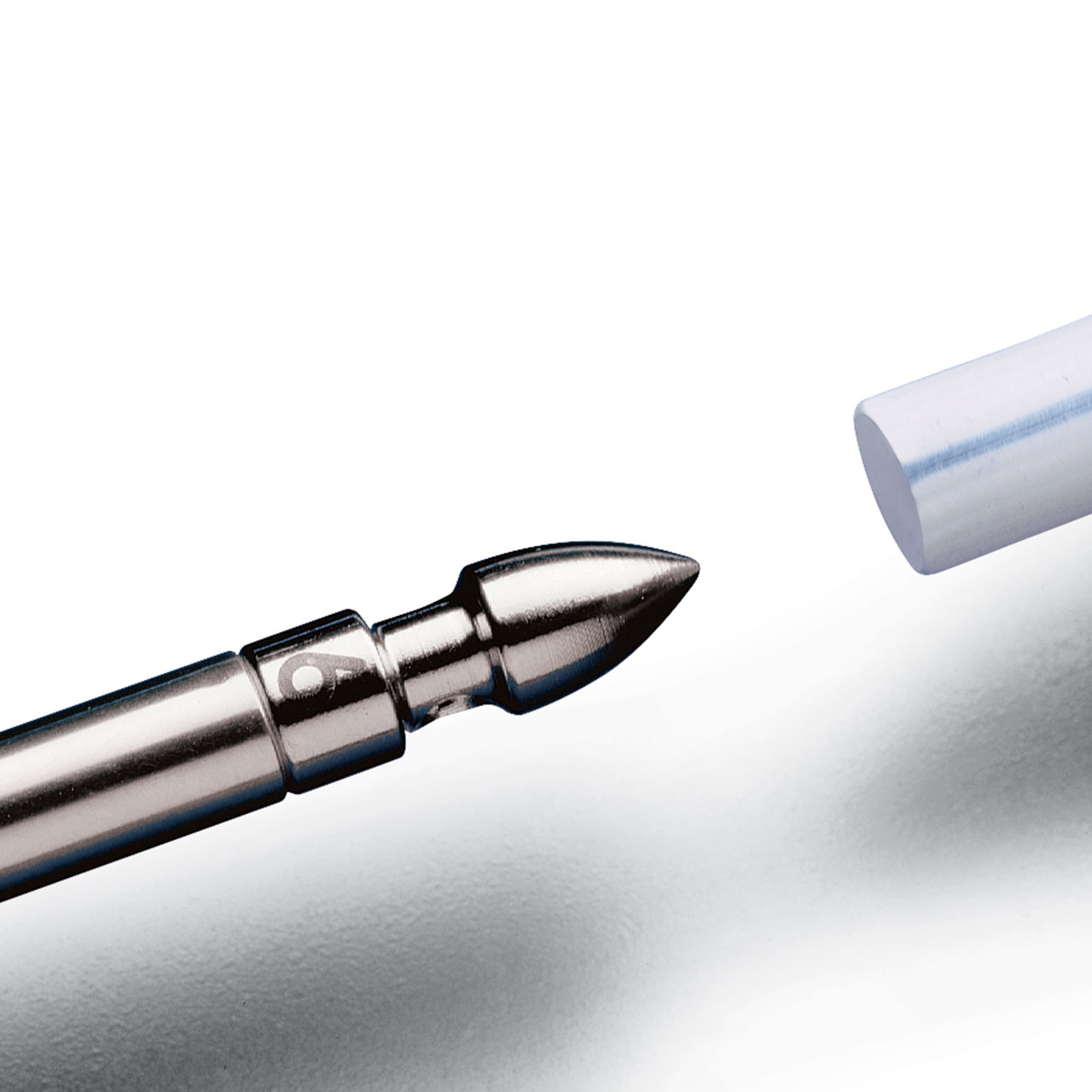

Tunneling tips feature a large grasping area for easier manipulation.
Creates a tighter tunnel to match graft diameter.
Unique thumb tab provides directional control.
Vascular Graft Tunneler Instrumentation
| Product | Description | Reference |
| AV-1, Vascular graft tunneler rod | 26 cm Length with 50º curve (Stainless Steel) | 26012 |
| AV-2, vascular graft tunneler rod | 27 cm Length with 180º curve (Stainless Steel) | 26013 |
| PV-1, Vascular graft tunneler rod | 33 cm Length with 12º curve (Stainless Steel) | 26014 |
| PV-2, Vascular graft tunneler rod | 58 cm Length with 24º curve (Stainless Steel) | 26015 |
| Vascular graft tunneler instrumentation set w/tray | 2 AV Tunnelers, 2 PV Tunnelers, Set of 8 Tips, 2 per size: 6 mm, 7 mm, 8 mm, 10 mm | 26026 |
| Vascular graft tunneler instrumentation tray | 26027 |
Vascular Graft Tunneler Rod Tips (4 mm)
| Product | Description | Reference |
| Vascular graft tunneler tips (4 mm) | Set of 2 | 26018 |
| Vascular graft tunneler tips (5 mm) | Set of 2 | 26019 |
| Vascular graft tunneler tips (6 mm) | Set of 2 | 26007 |
| Vascular graft tunneler tips (7 mm) | Set of 2 | 26008 |
| Vascular graft tunneler tips (8 mm) | Set of 2 | 26009 |
| Vascular graft tunneler tips (10 mm) | Set of 2 | 26010 |
| Set of 8 size vascular graft tunneler tips | 2 per size: 6 mm, 7 mm, 8 mm, 10 mm | 26006 |
| Vascular graft tunneler blunt tips (6 mm) | Set of 2 | 26021 |
| Vascular graft tunneler blunt tips (7 mm) | Set of 2 | 26022 |
| Vascular graft tunneler blunt tips (8 mm) | Set of 2 | 26023 |
| Vascular graft tunneler blunt tips (10 mm) | Set of 2 | 26024 |
