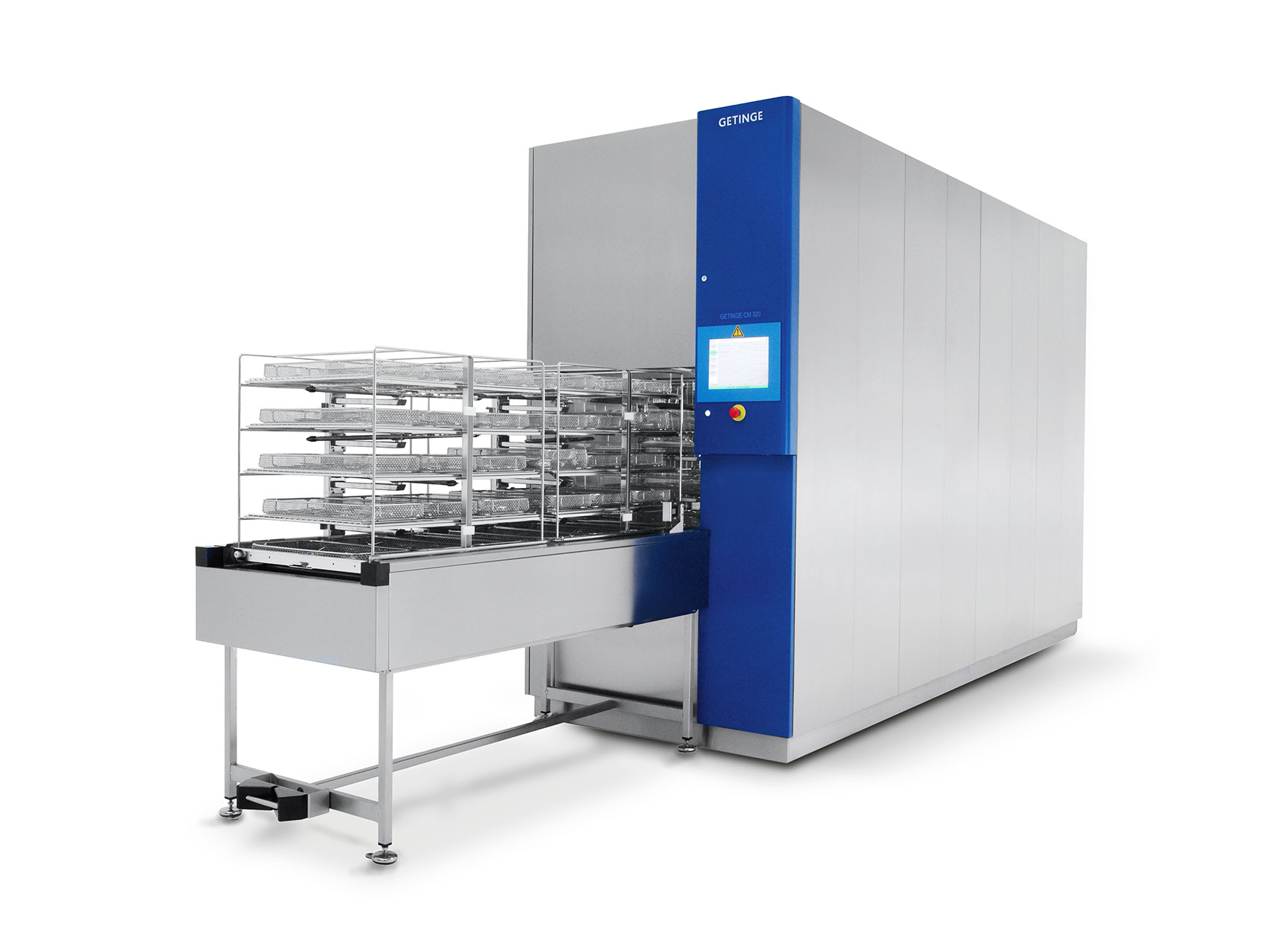

Getinge CM320-series
Taking hygiene to a completely new level
Getinge CM 320-series is a reliable, high-performance multi-chamber washer-disinfector that combines high capacity with a compact design. Thanks to its modular design and a broad range of accessories, it is easily adaptable to your needs.
High capacity and throughput
Load capacity 15 DIN-trays
Superior automation and reliability
Built for hygiene
Modular design
Small footprint
Technical data
Measurements - internal
| Chamber volume (gross) | L / Cu ft | 710 / 25.07 |
| Chamber volume (effective) | L / Cu ft | 351 / 12.4 |
| Chamber width (effective) | mm / in | 650 / 25.59 |
| Chamber depth (effective) | mm / in | 810 / 31.89 |
| Chamber height (effective) | mm / in | 667 / 26.26 |
| DIN 1/1* trays/load | pcs | 15 |
| SPRI I** trays/load | pcs | 10 |
| * = DIN 1/1 = 480x250x50mm | ||
| **=SPRI / ISO =450x340x70mm |
Measurements - external
| Width | mm / in | 1245 / 49.21 |
| Width (service access door) | mm / in | 1880 / 74 |
| Height | mm / in | 2425 / 95.5 |
| Length 2 modules* | mm / in | 2020 / 79.5 |
| Length 3 modules | mm / in | 2982 / 117.4 |
| Length 4 modules | mm / in | 3944 / 155.28 |
| * = Not available in the US. |
The external width of the CM320 depends on the chosen operator panel variant.
For more detailed technical data and dimensions, please contact your Getinge representative.
Built-in flexibility
Modularity enables machine designs with 2–4 chambers, depending on capacity and throughput requirements.
