Maquet Magnus OR Table System

Combining modularity, flexibility and ergonomics

The Maquet Magnus surgical table is the culmination of Getinge’s knowledge, resources and expertise, providing state-of-the art technology for optimized workflows and improved patient safety in the operating room.

With the Maquet Magnus OR Table System, you can streamline your OR workflows right from the beginning
Thanks to a wide variety of modules, the Maquet Magnus OR Table System can be set up easily for all kinds of surgical interventions.
Maquet Magnus offers unique X-ray conditions and ensure clear access to the operating field.

One solution for all surgical needs

The superb Maquet Magnus Operating Table System is the result of systematic improvements to offer the best support for the patient and surgical team. Maquet Magnus offers unique X-ray conditions and ensure clear access to the operating field.

  • Extreme flexibility and stability
  • Extreme modularity
  • Ergonomic working conditions
  • Innovative transfer concept
  • User-friendly control units

İlgili ürünler

Extreme flexibility and stability

The Maquet Magnus Table Column enables extreme positions and optimum access. Its slope saddle technology allows for inclination angles up to 80° with simultaneous tilt angles of up to 45°. It ensures stable lateral tilt and provides optimum radioscopy conditions as well as free access to the surgical field, with a corresponding working radius.

Extreme modularity

Thanks to a wide variety of modules, the Maquet Magnus OR Table System can be set up easily for all kinds of surgical interventions. Due to its extreme working radius, Maquet Magnus achieves a position where the patient is almost “floating", providing optimum radioscopy possibilities and free access to the surgical field from all directions.

Ergonomic working conditions

With its extreme height adjustment, Maquet Magnus contributes to relaxed working conditions while standing or sitting, even during longer operations.

Innovative transfer concept

Thanks to battery equipped transporter the patient can be arranged in treatment position in the induction area on the operating table top, and transferred directly into the OR.

User-friendly control units

The hand control fitted with a display and self-explanatory icon keys. Up to ten different patient positions can be stored and recalled from the integrated program memory. The display, which is available in various language versions, provides useful status information and indicates possible operating faults. The backlit key panel ensures comfortable and safe working in a darkened operating theatre.

Maquet Magnus as a part of the new transport system PILOT

Seamless transfer without repositioning

Maquet Magnus is part of the new transport system PILOT. This patient-centered transfer system eliminates the barriers to using intraoperative whole-body angio, CT, and MR imaging at any point during the procedure. The patient can be transferred seamlessly throughout the entire hospital and between imaging modalities without repositioning.

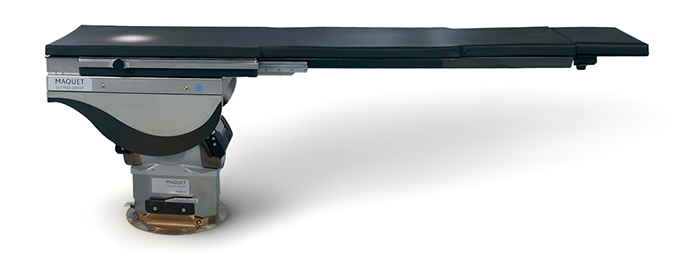

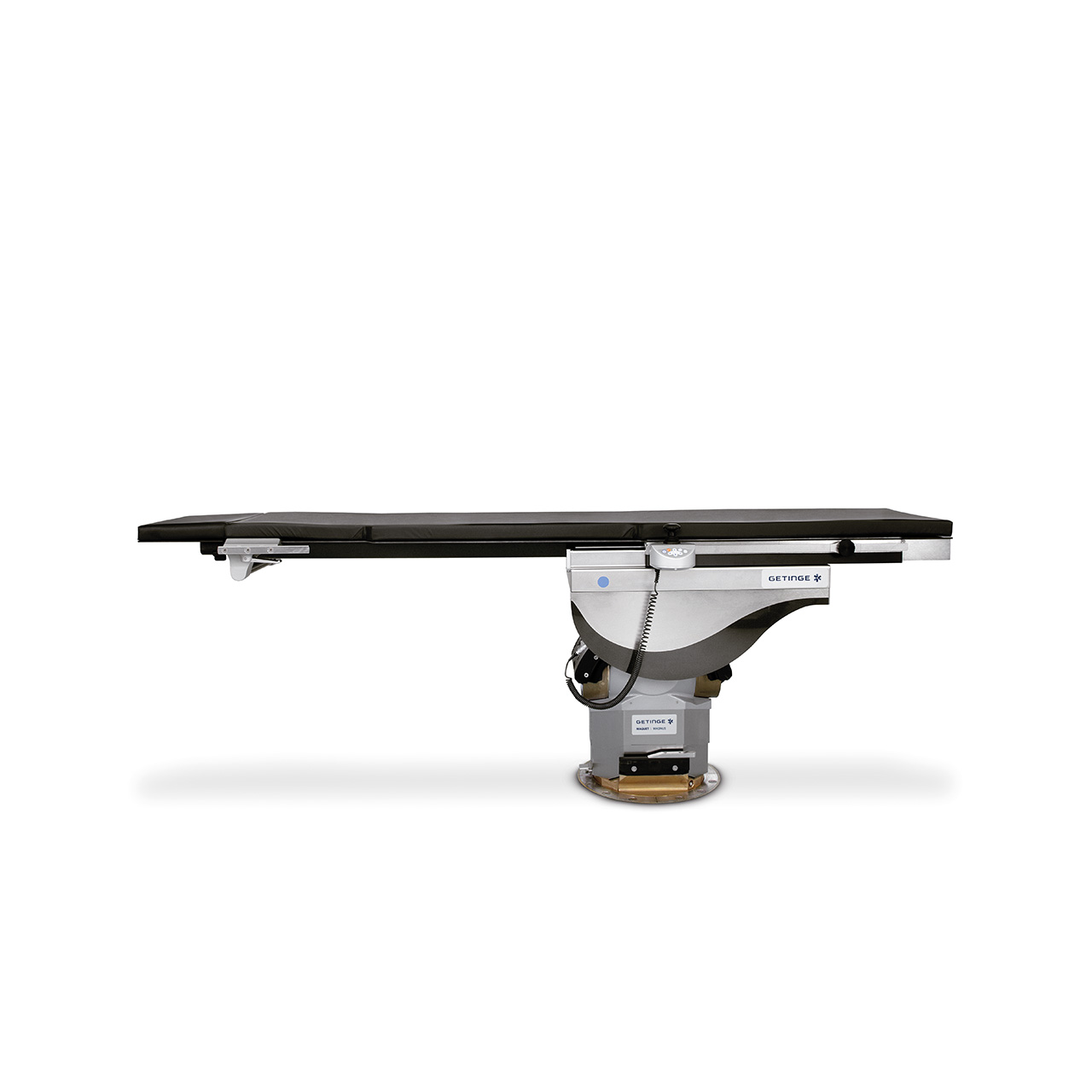

Carbon fiber table tops

In addition to the modular universal table top, the Maquet Magnus product range also includes the carbon fiber table tops. These plates are made of radiolucent carbon fiber composite material, which allows a 360 ° imaging without metal elements that could influence the image. Depending on the model, the longitudinal adjustment can give up to 2150 mm of available, radiolucent length, (including radiolucent head rest, 300 mm long). With the  motorized lateral adjustment, also used in direct combination with the motorized longitudinal adjustment, body structures can be monitored in the image intensifier without having to change the C-arm, e.g. for angiography. The carbon fiber table tops of Maquet Magnus are ideally suited to the Hybrid OR. Synchronized movements of x-ray equipment and Maquet Magnus improve radiological results due to the retention of the isocentre.

magnus operating table
Magnus Operating Table Positioning

Maquet Magnus is made for perfect positioning

Maquet Magnus is suitable for all surgical interventions. Because of its perfect height adjustment, the operating table helps surgeons to relax during their work, whether sitting or standing. Wide adjustment ranges, especially for Trendelenburg and lateral tilt, simplify and optimize patient positioning.

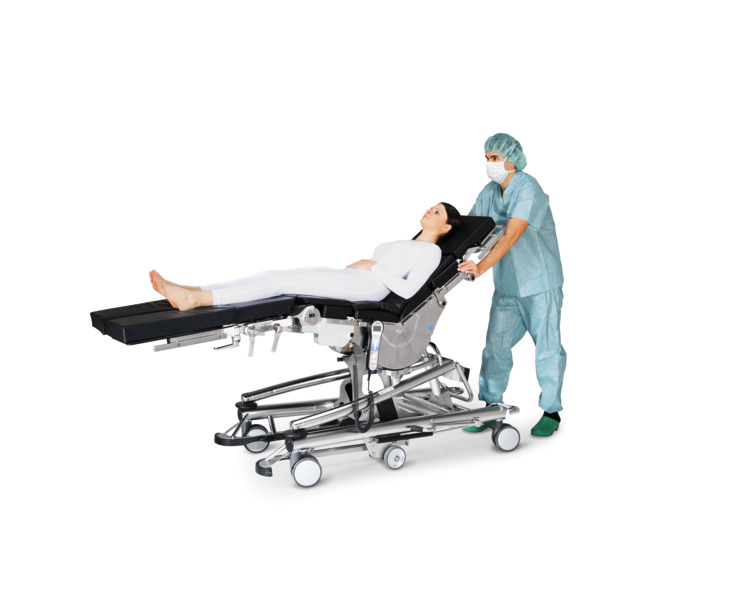

Maquet Magnus Patient Transport

Innovative positioning concept

The patient can already be positioned on the table top in the induction area. Thanks to battery equipped Maquet Magnus Transporter the patient is transferred in treatment position on the table top directly from the induction area into the OR.

magnus operating table table in operating room

Carbon fiber plate for lithotomy position

The carbon fiber lithotomy plate extends the use of the Maquet Magnus Operating Table, supporting minimally invasive surgery (MIS) in the lithotomy position. With a large imaging range, the lithotomy plate improves visibility throughout the abdomen, from the pelvis to the liver.

Enhanced intraoperative visibility can improve patient outcomes for gynecology, urology, and oncology procedures. A cut out area improves access to the pelvic area for easier access during surgery, improving ergonomic positioning for the surgical staff. Existing Getinge accessories are compatible with the lithotomy plate.

With the Maquet Magnus OR Table System, you can streamline your OR workflows right from the beginning

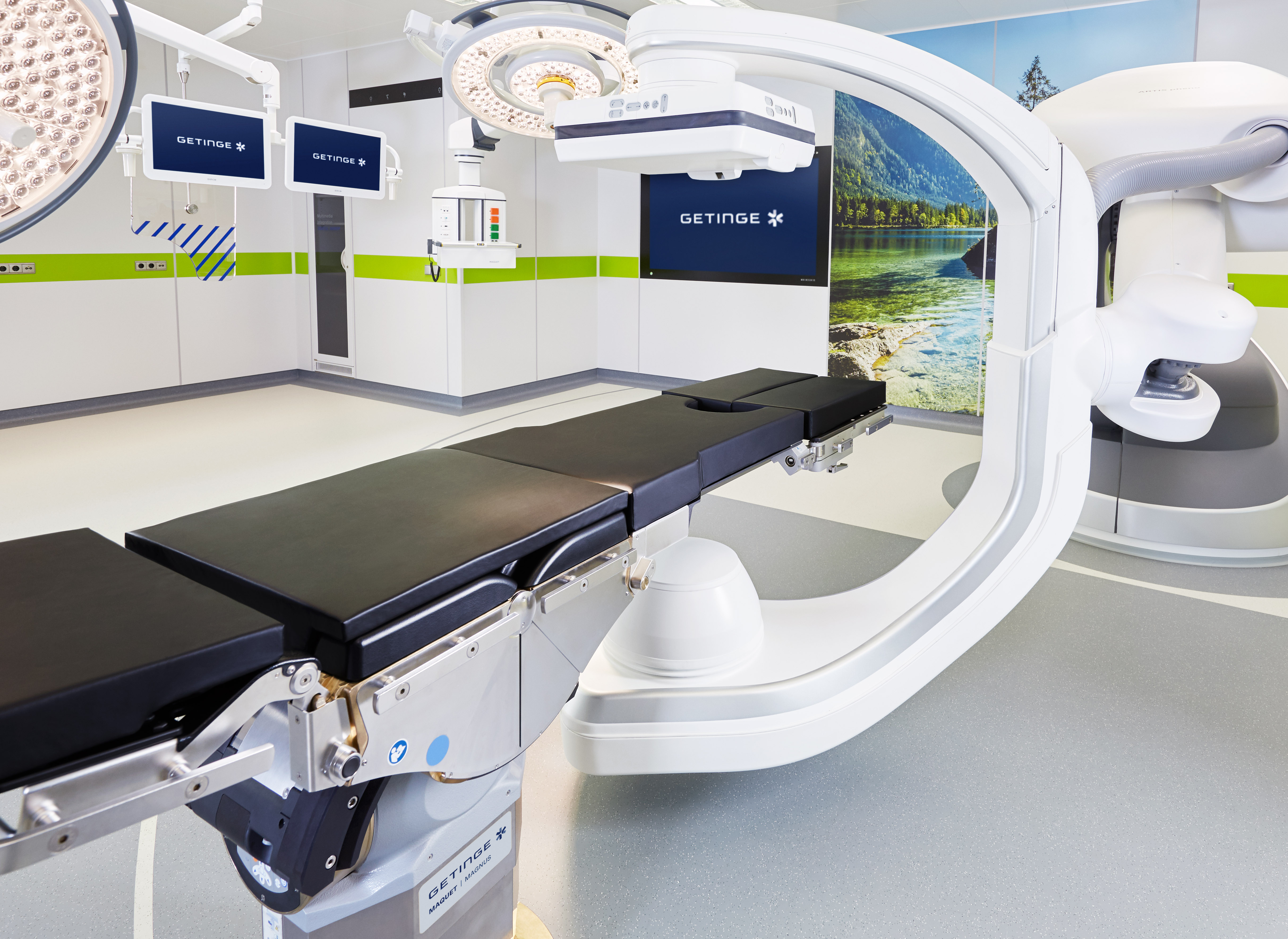

Interventions in the Hybrid OR

The carbon-fiber table top of Maquet Magnus supports interventions in endovascular and cardiovascular surgery as well as in interventional radiology, orthopedics and traumatology. The table top provides 360° radiolucency and therefore gives optimum X-ray access. When deployed for interdisciplinary use, the diagnostic requirements of neurosurgery, orthopedics and traumatology are also covered. Available interfaces to common imaging partners offer perfect synchronization with imaging equipment.

Patient positioning with Maquet Magnus

Optimal combination of functionality and comfort for all surgical interventions

The modular design of the Maquet Magnus OR Table System makes it the perfect choice for any surgical setup. Its functionalities, accessories and broad range of positional options make both micro-surgical and complex interventions significantly easier and more f lexible. Its perfect height adjustment, precise and controlled table movements, slope and tilt function, and large working radius offer you maximum comfort and access while operating.

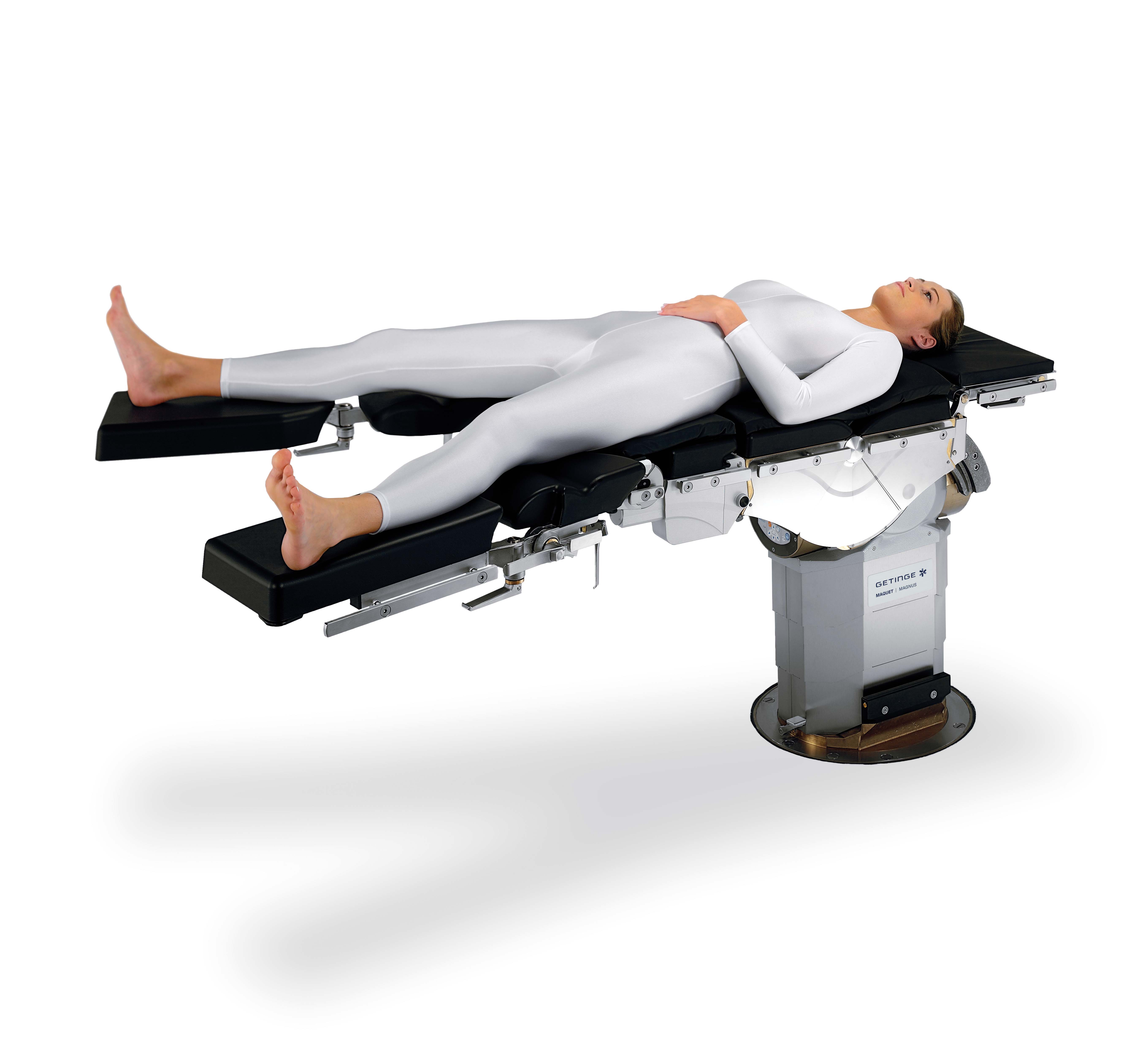

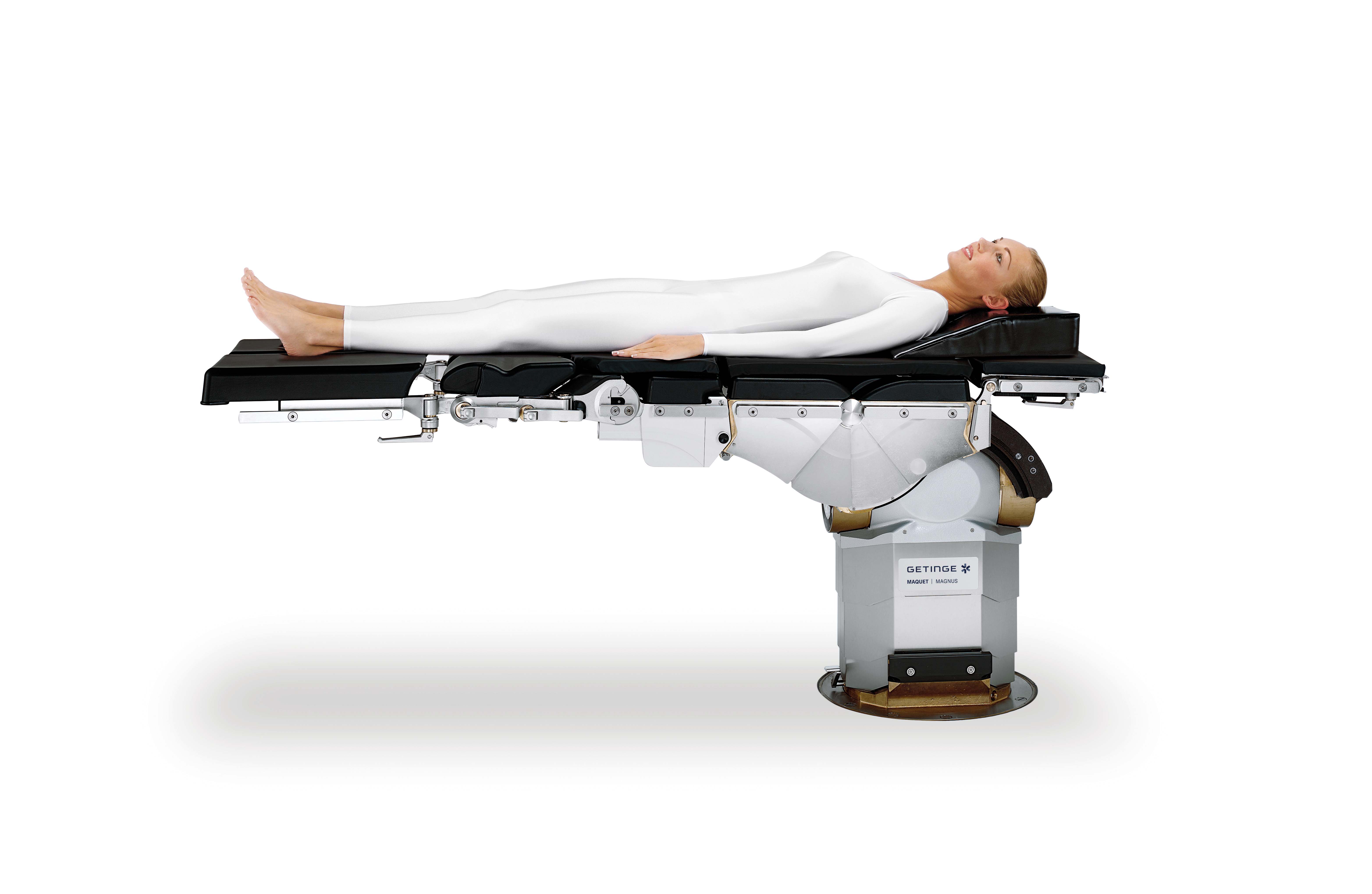

Supine position wih maximum caudal working radius

Supine position with maximum caudal working radius

Laparoscopic and conventional cholecystectomy: optimum access to the operating field

Laparoscopic and conventional cholecystectomy: optimum access to the operating field

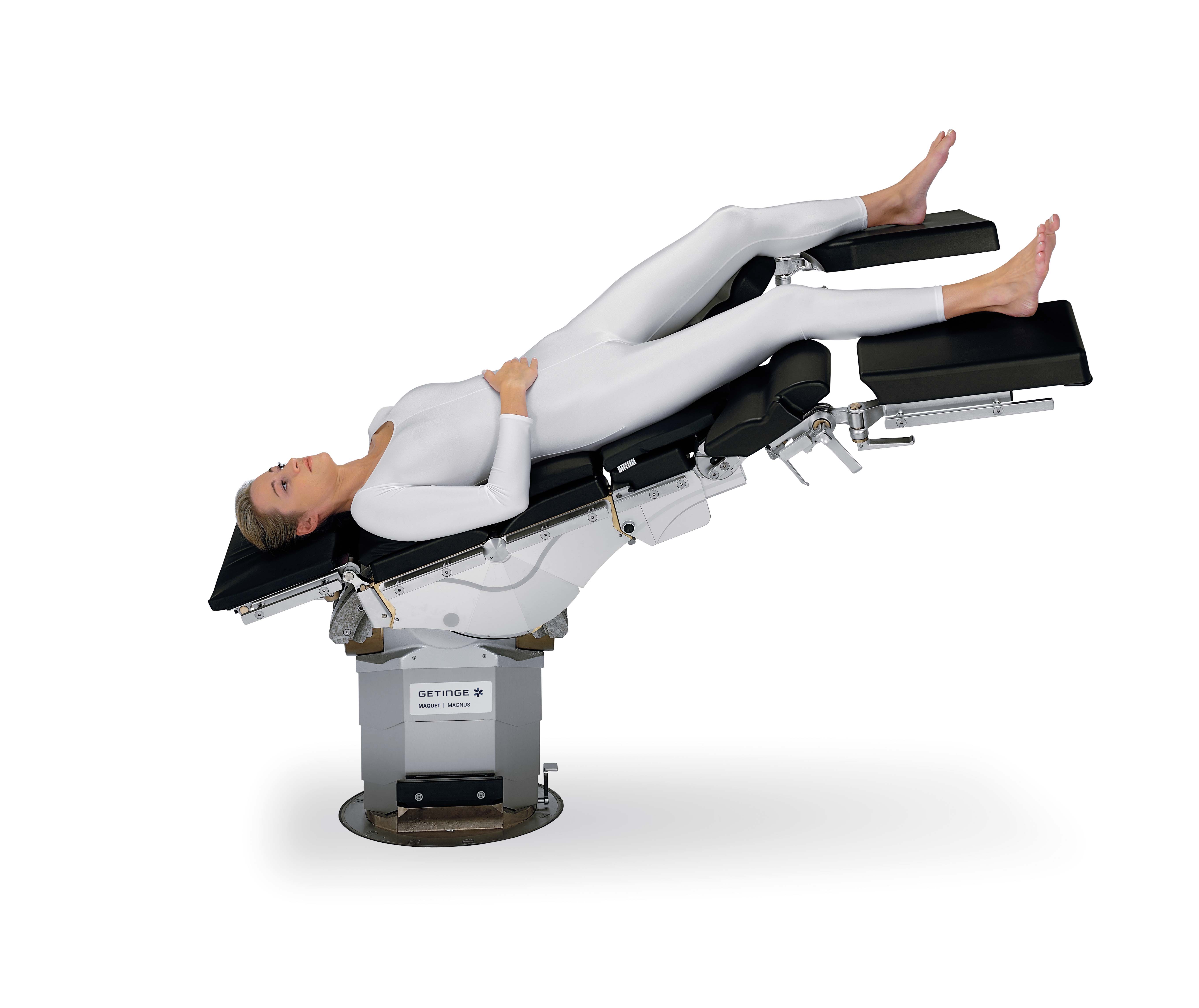

Maximum head down position up to 80° with simultaneous lateral tilt up to 45°

Maximum head down position up to 80° with simultaneous lateral tilt up to 45°

Position with optimised gravity, e. g. for bariatric surgery

Position with optimised gravity, e. g. for bariatric surgery

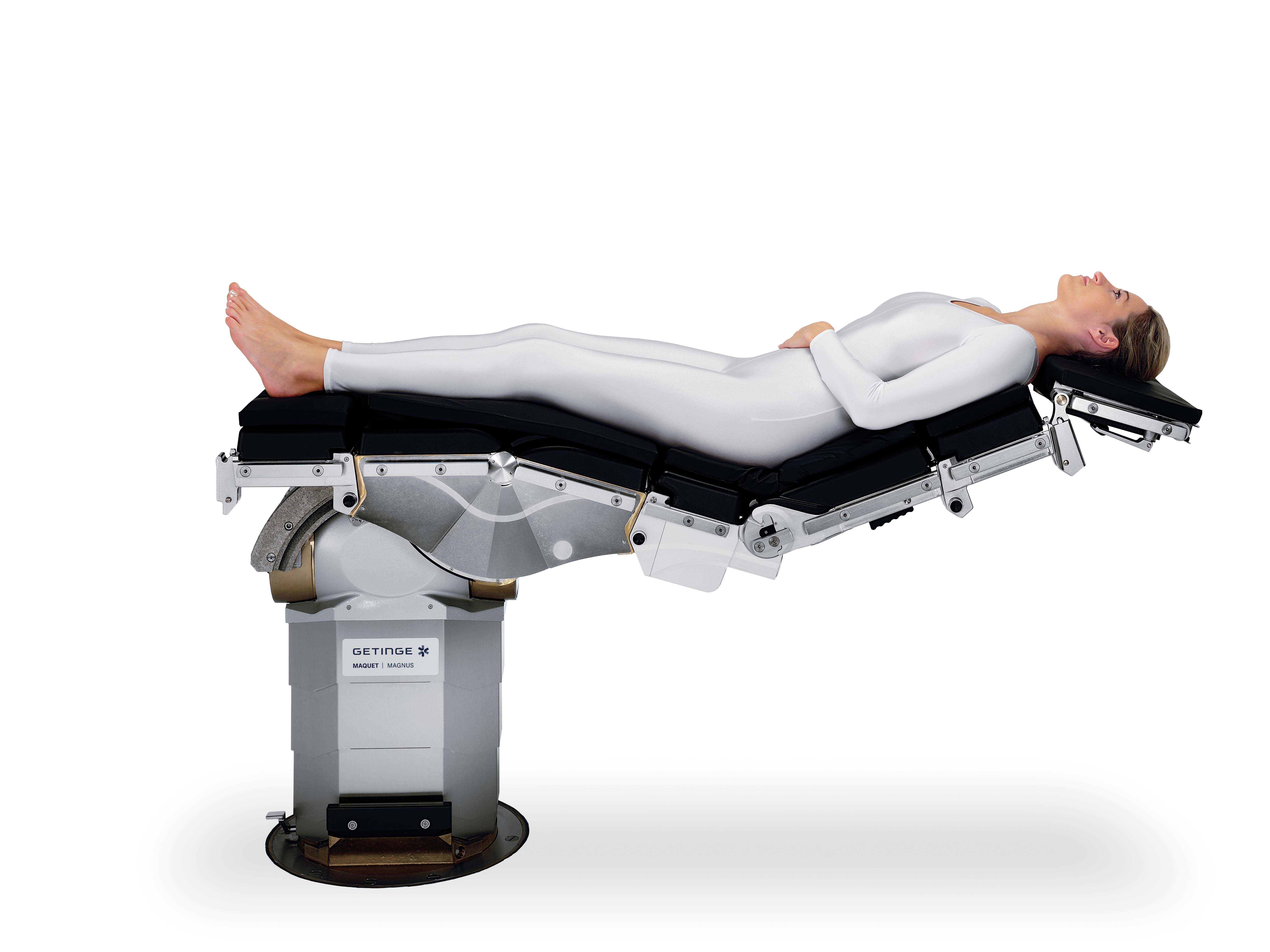

Thyroid surgery with well exposed neck

Thyroid surgery with well exposed neck

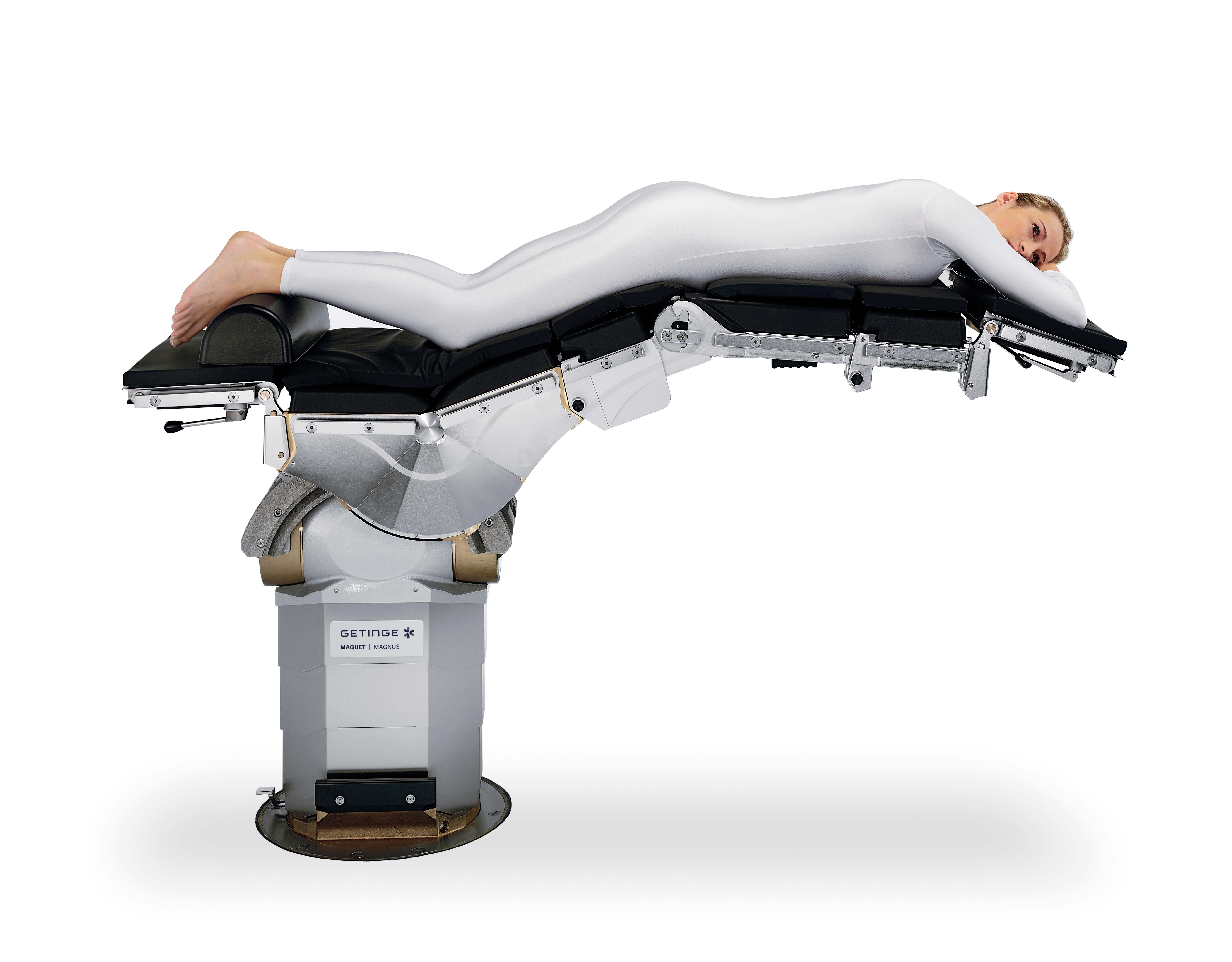

Spinal surgery in prone position with optimum access for the c-arm

Spinal surgery in prone position with optimum access for the c-arm

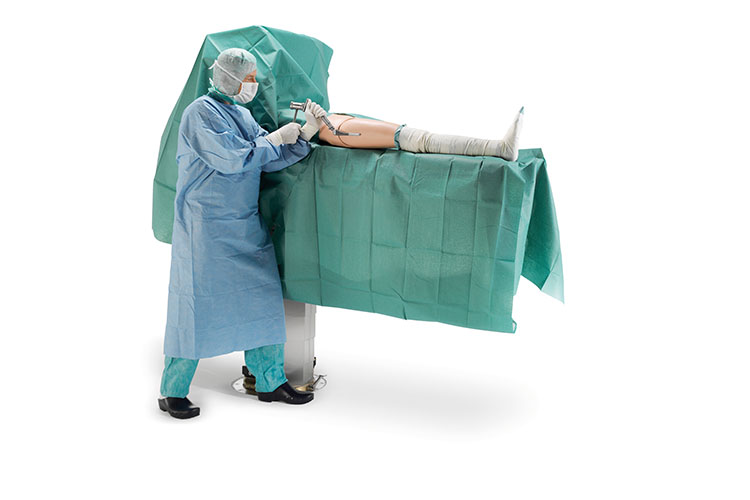

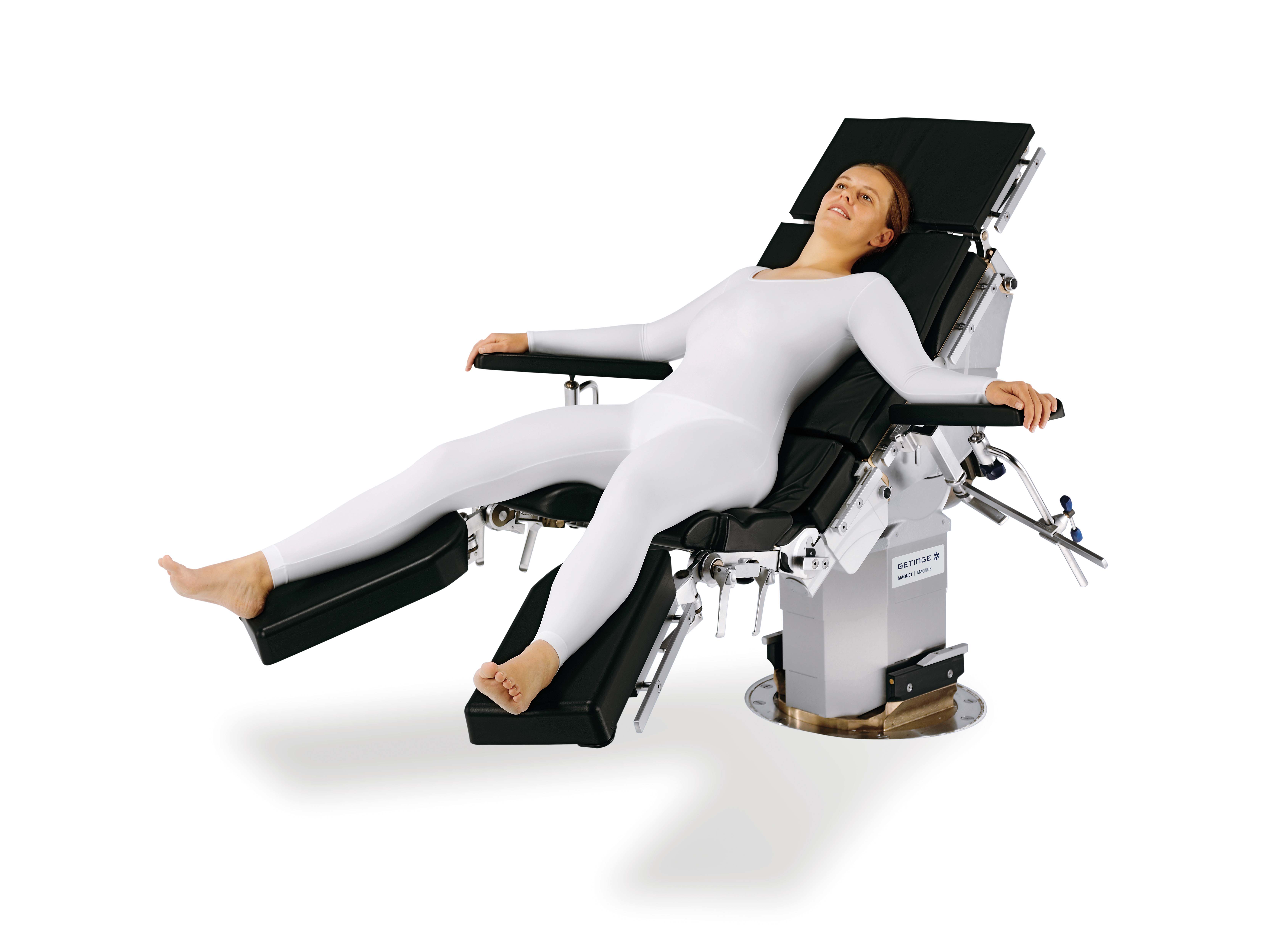

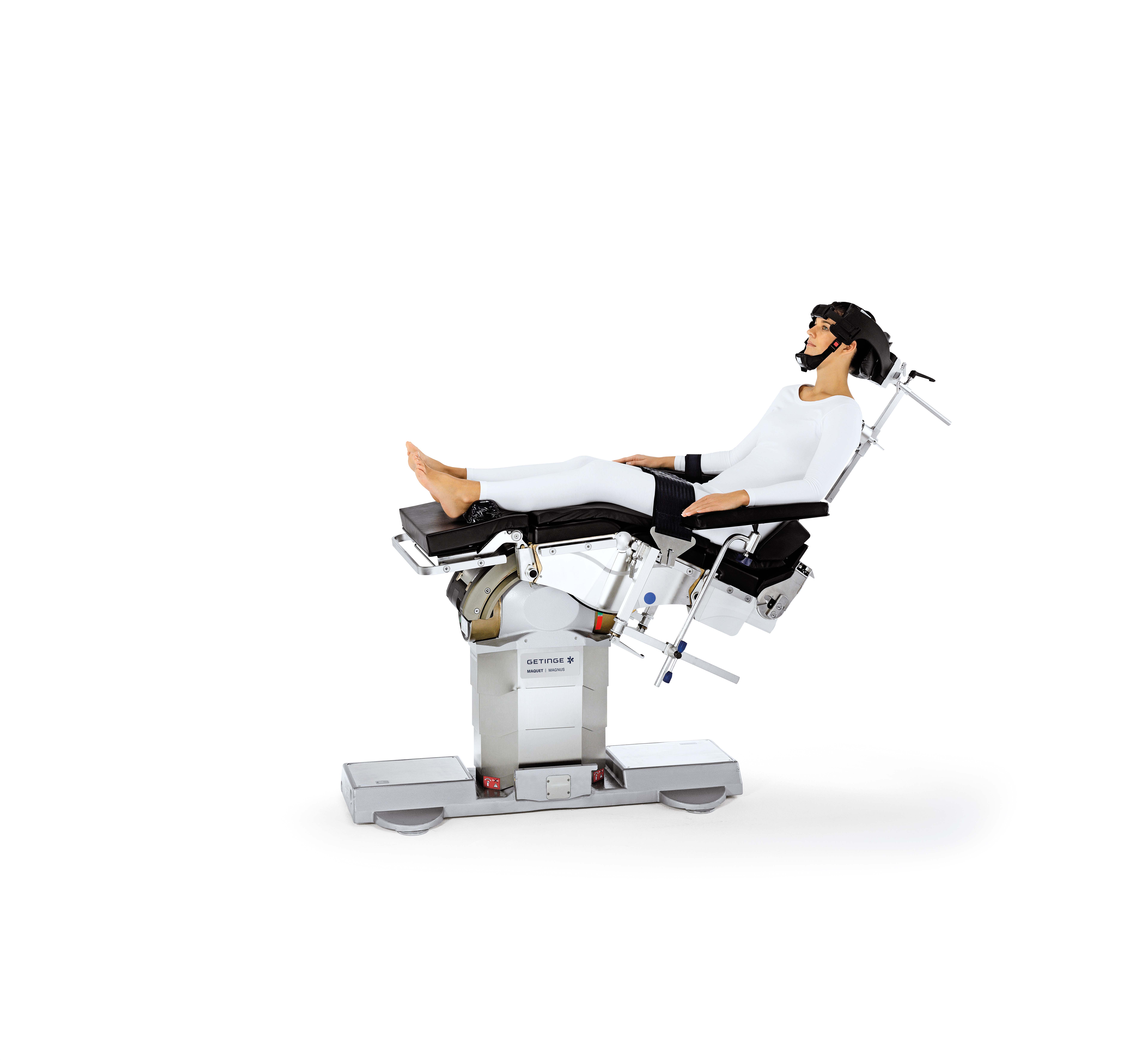

Shoulder surgery in beach chair position

Shoulder surgery in beach chair position

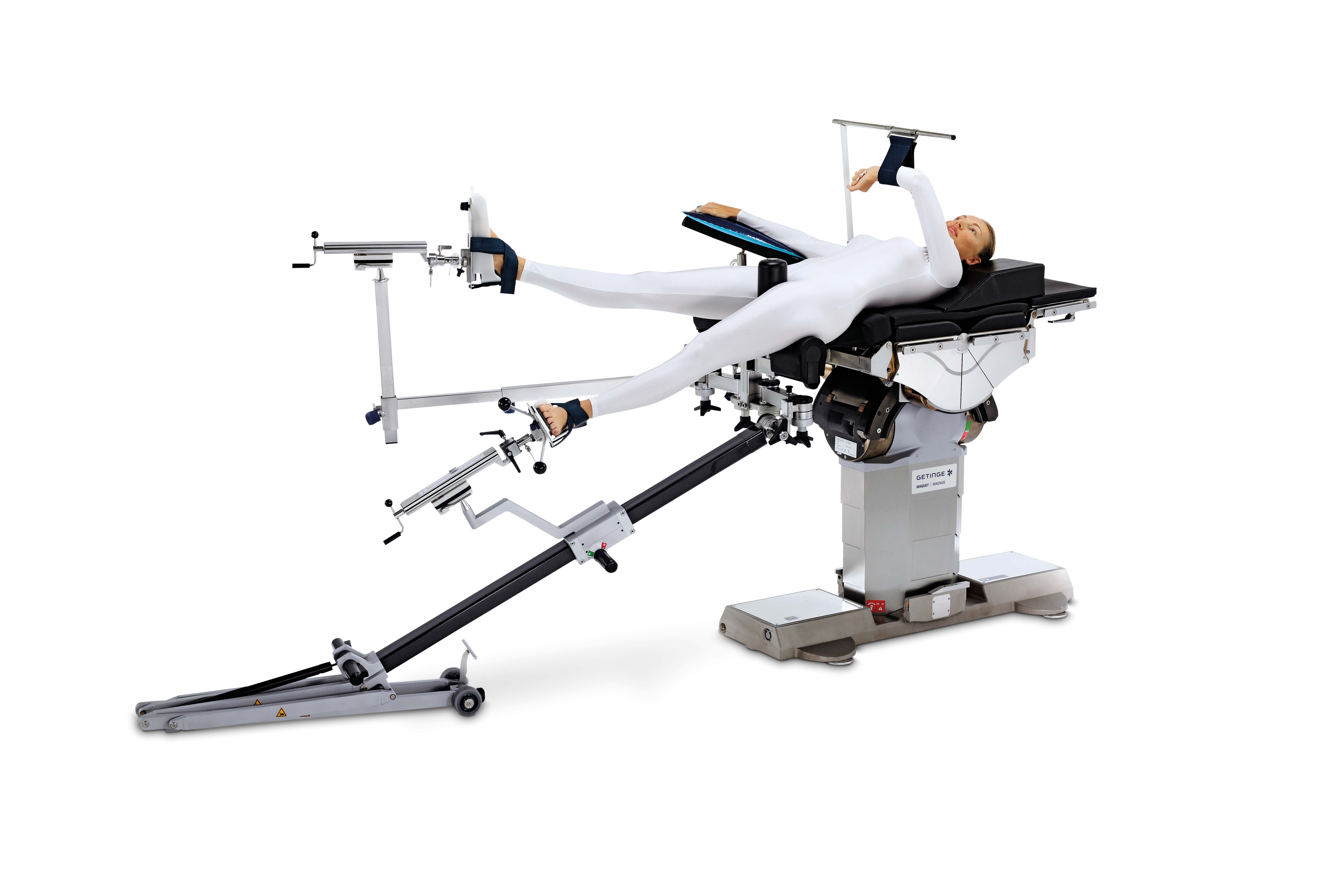

Minimally invasive total hip replacement with extension device

Minimally invasive total hip replacement with extension device
