Maquet Yuno II
Advanced surgical workflows in Orthopaedics, Traumatology and Neurology
Proper positioning can make all the difference, enabling less invasive techniques that can help to improve patient outcomes and accelerate recovery. With Maquet Yuno II, Getinge is able to fully support specialised Orthopaedics, Traumatology and Neurology applications.
Yuno II how to attach Carbon Bars

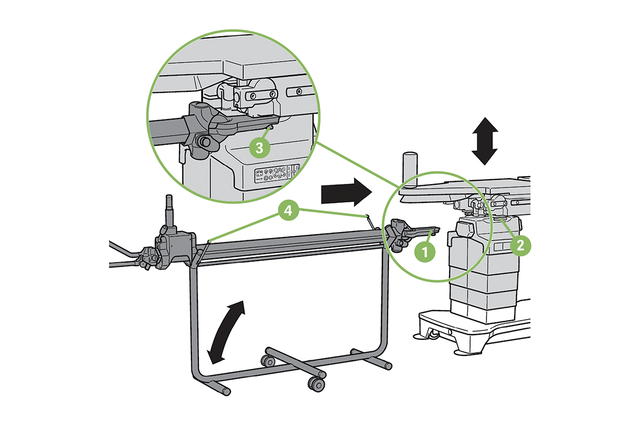

Mounting the traction bar (1007.40A0)
Prerequisites:
The OR table is locked (LOCK).
OR table is neither inclined nor tilted laterally.
The extension plate is mounted to the OR table.
- Simultaneously press and hold the buttons [LEVEL] + [UP] on the control device.
- The OR table is adjusted to the appropriate height to mount the traction bar. - Move the traction bar on the bar trolley with the mounting point guide 1 at the front, to the desired mounting point 2 of the OR table.
- Insert the mounting point guide of the traction bar completely onto the mounting point of the OR table without tilting.
- The traction bar engages audibly at two lock-in positions.
- Locking bolt is engaged 3.
- The traction bar is locked. - Check the firm seating by pulling the traction bar.
- Release both securing straps 4 on the bar trolley.
- The traction bar can be lifted from the bar trolley.

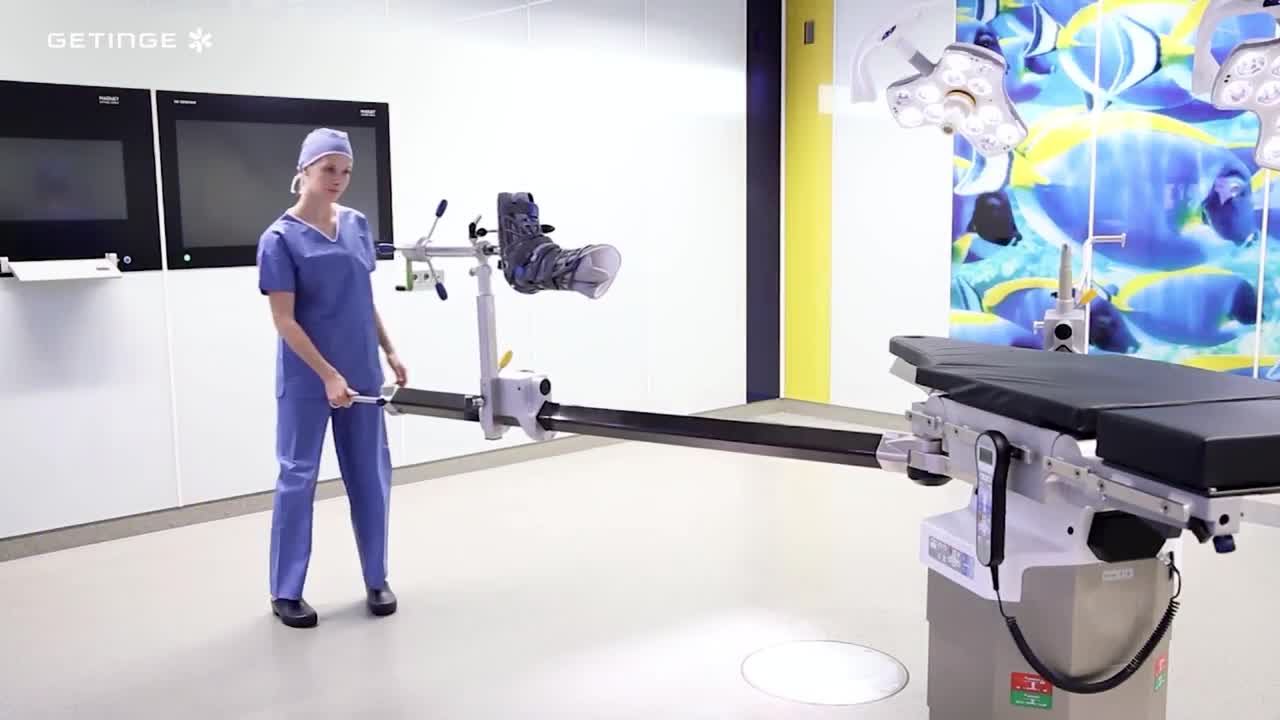

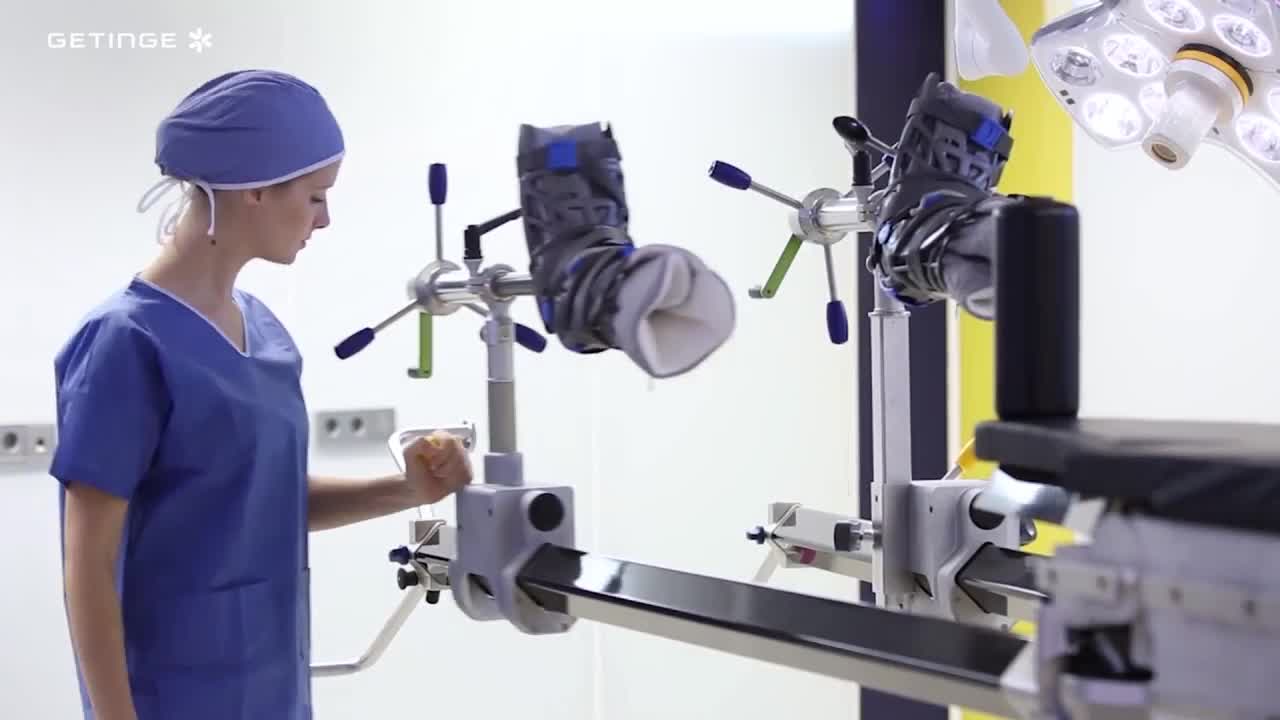

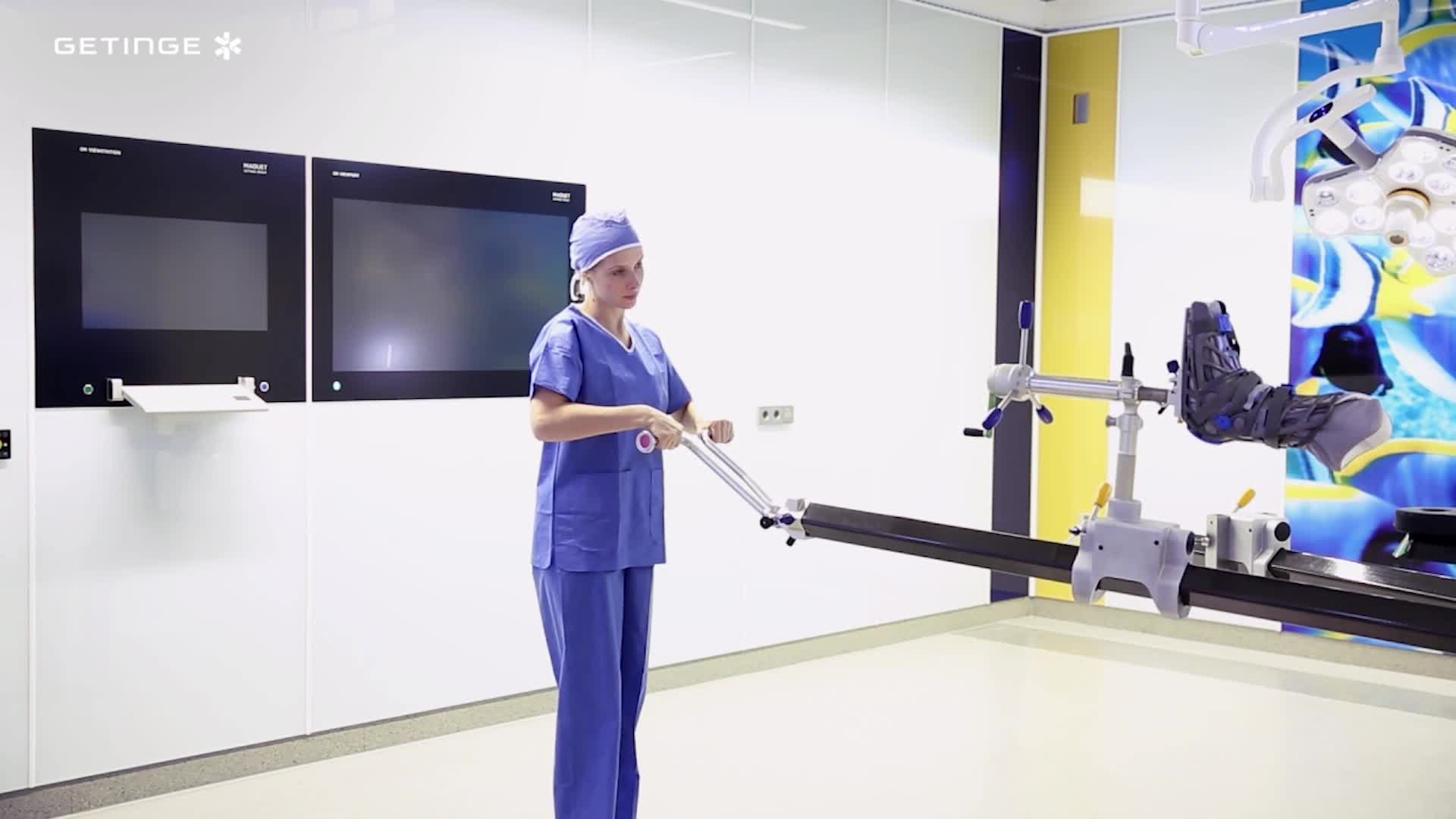

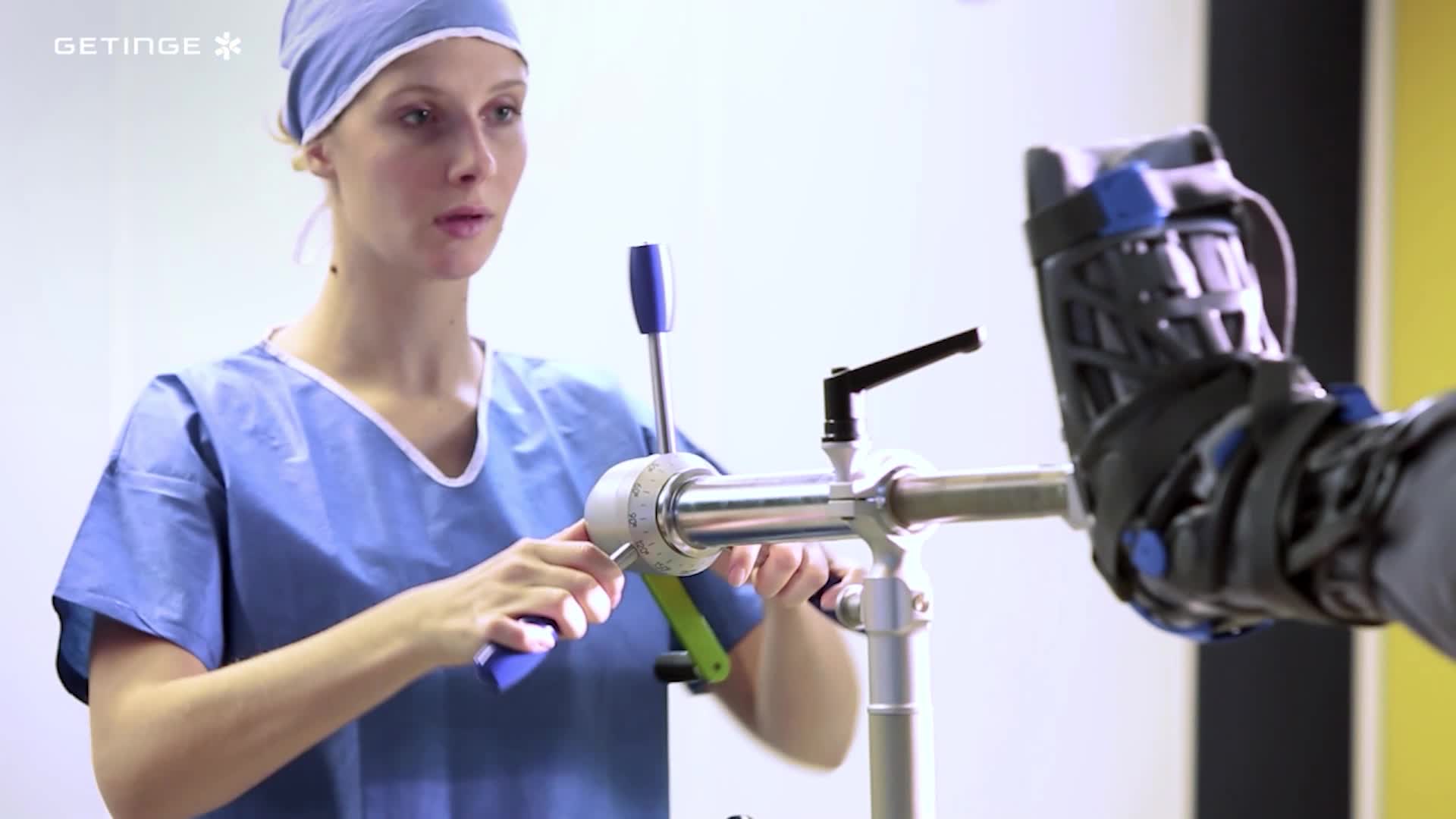

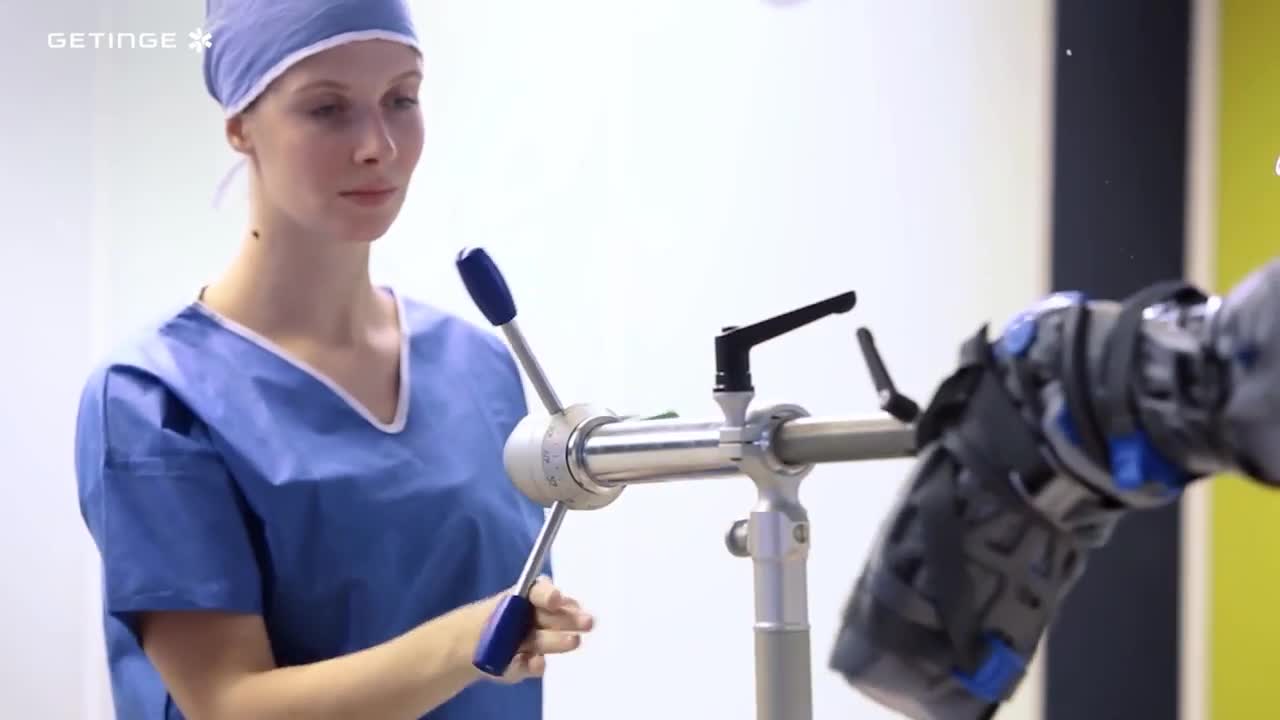

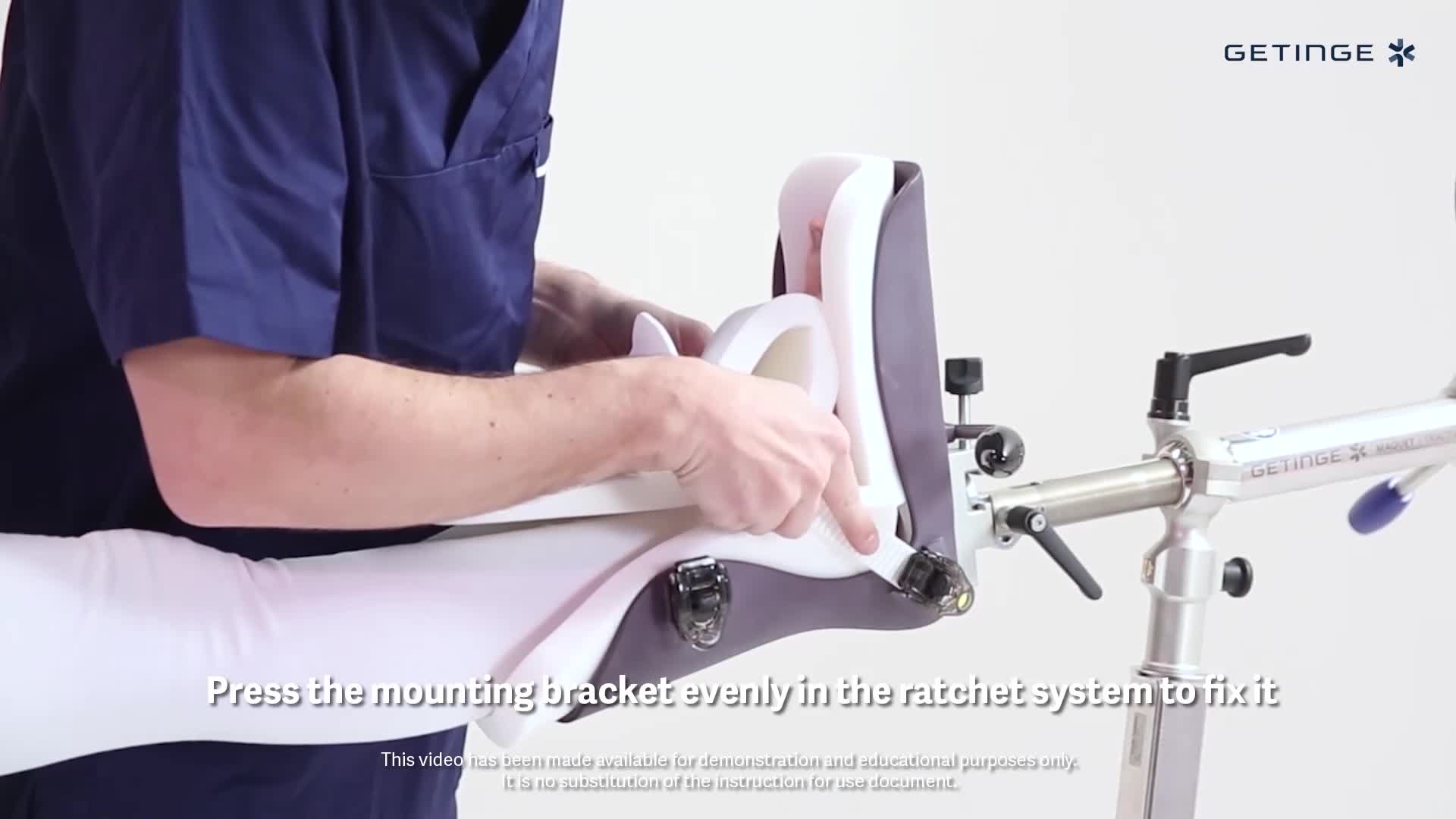

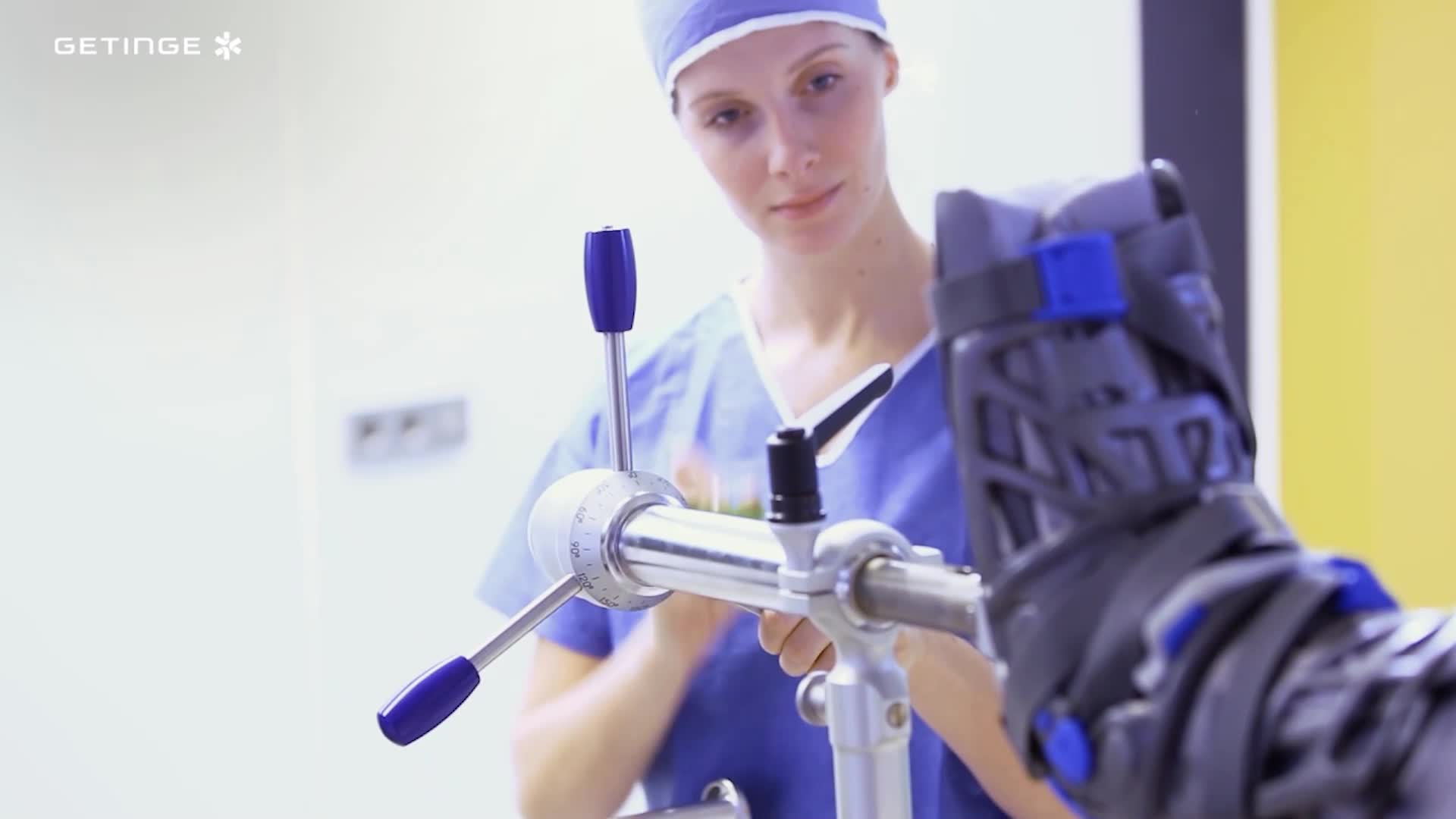

Yuno II How To Videos
Train me up
Request an in-person Yuno II Training session at your facility
Related Documents
Yuno II Positioning Guide

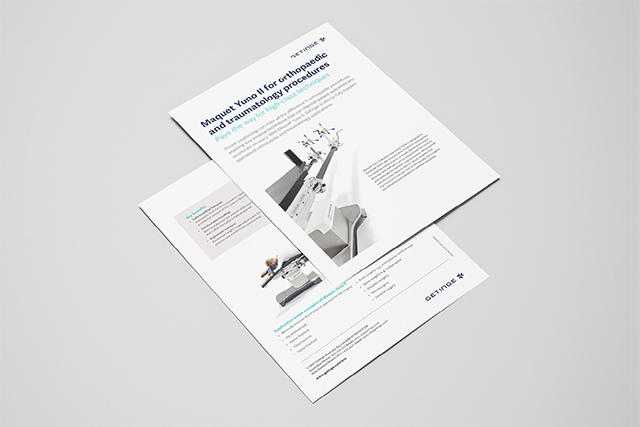

Yuno II Flyer for Capabilities & Key Benefits
Yuno II Brochure & Accessories Catalogue
Expanding the capabilities of Maquet Yuno II
The Carbon Fibre plate has interdisciplinary functionality, expanding the capabilities of your surgical suite.
Fully flexible for a variety of procedures
With an X-ray range of up to 1,200 mm, the C-arm can be positioned to create an imaging window at nearly every angle.
For patients of all sizes
With a unique design and new method of fixation, the CF plate offers stable positioning for patients up to 380 kg in the normal position and 250 kg in the reverse position.
Clear visualisation for diagnostic accuracy
No metal components are present, limiting shadows in the X-ray window.
Cost-effective compatibility with existing accessories
Existing Maquet surgical table accessories can be used with the CF plate, minimising cost and complexity.
Key benefits
Handling features with safety in mind
Automatic lock function, designed to prevent injuries from accidental release of the carbon fibre bar.
Comfortable handling
Bars and devices are easy to slide and control, even after the table is fully prepared.
Ergonomic comfort
Extensive height range adjustment for precise and comfortable positioning.
More flexibility
Automatic lock function prevents injury from accidental release of the carbon fibre bar.
Colour coded
Clearly marked functions reduce risk of error from miscommunication between surgeon and staff.
Universal usage
The three Maquet Yuno II Table Tops are compatible with our existing accessories for use in all surgical procedures, maximising OR versatility.

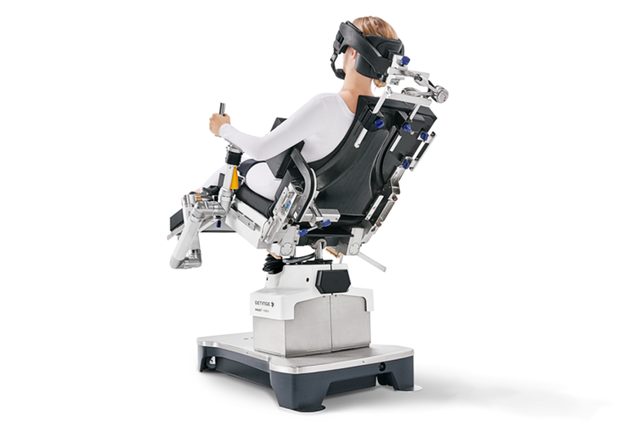

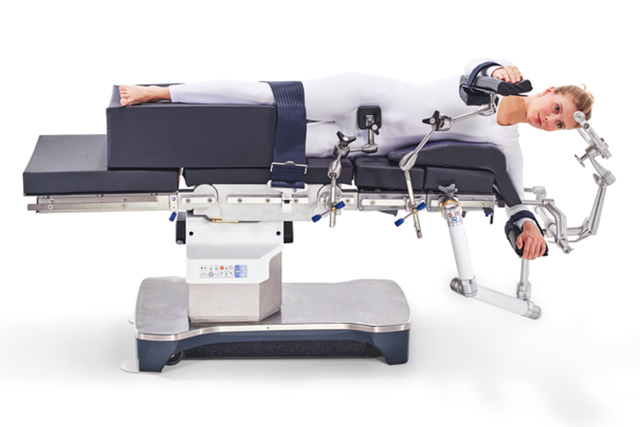

Flexible and stable positioning for Neurosurgery
Improved imaging for shoulder surgery
