GSS L & R Steam Sterilizer

GSS L & R helps you achieve predictability, reliable containment and scientific data integrity in biomedical research facilities.

Sterilization, decontamination and biocontainment are vital in biomedical research facilities such as vivariums and laboratories. Getinge steam sterilizers help secure biosafety levels and scientific data integrity.

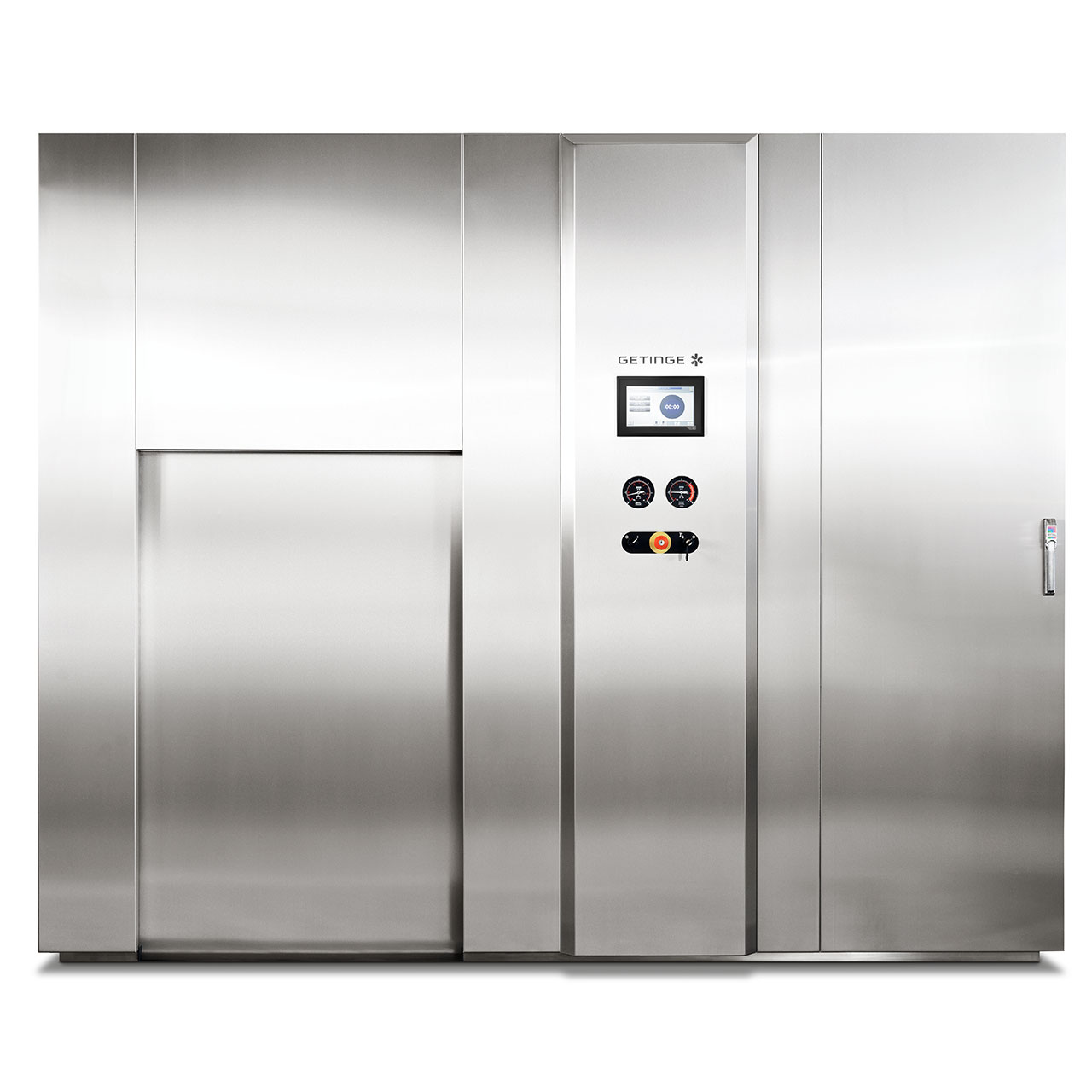

GSS R Steam Sterilizer for Lab and Biomedical research from the front with B&R control system
GSS R Steam Sterilizer for Lab and Biomedical research with B&R control system and a woman working next to it
GSS R Steam Sterilizer for lab and biomedical research with a man and a woman working in front with the loading equipment

GSS Steam Sterilizers for Lab and Biomedical research

Getinge develops, manufactures, and supports complete steam sterilizer systems for life science.

  • Reliable and repeatable process
  • Containment barrier system
  • Flexible solution
  • Operator safety

Related products

autoclave chamber

Stainless steel pressure vessel and piping

From the autoclave chamber to process and non-process piping, the GSS L & R are solid, stainless steel sterilizers.

Machine parts are carefully selected for function and hygiene. The Fascia panels have a vertical grain brush and satin finish for easy cleaning and uniform appearance, and the pressure vessel is robot-welded and highly polished.

Airtight barrier preventing contamination

Airtight barrier preventing contamination

To prevent cross-contamination in BSL3/4 environments, the GSS L & R can be equipped with a traditional air differential barrier or a true bioseal that guarantees an airtight seal capable of preventing the passage of airborne microorganisms. The GSS L & R with a bioseal combines a stainless steel flange welded to the chamber, a stainless steel integrated in the wall, and a rubber gasket. For the GSS L & R with bioseal, the pneumatic tubing is equipped with HEPA filters.

GSS components

Designed for flexibility

The standard GSS L & R range with sizes from 0.4 to 9 cubic meters (10 to 400 cubic feet) and key components such as the intuitive HMI, quality piping, sectional jacket design, uniform temperature distribution, and accurate process control secure core sterilizing functionality. The built-in flexibility allows for customization and other sizes. Working closely together with you, we design a contamination prevention solution that suits your needs every step of the way- from planning to putting your GSS L & R into operation.

GSS biomed lab

Functionality

GSS L & R Steam Sterilizers are designed around a proven concept that emphasizes easy handling.

The user-friendly, ergonomic display and intuitive HMI with presets for common sterilization processes make it easy to use and ensures operator together with process safety, and repeatability in a controlled biomedical research environment.

Technical data

MODEL

USABLE DIMENSIONS   (mm)

W x   H x D

USABLE DIMENSIONS (INCH)

W x   H x D

CHAMBER VOLUME (Nominal)

 LITRES                           FEET3

GSS 6710

660 x 700 x 1000 mm

26” x 26 ½” x 39 3/8”

470

16.0

GSS 6713

660 x 700 x 1300 mm

26” x 26 ½” x 51 1/4”

612

20.7

GSS 6910

660 x 920 x 1000 mm

26” x 36 ¼”   x 39 3/8”

618

21.8

GSS 6913

660 x 920 x 1350 mm

26” x 36 ¼” x 53 1/8"

835

29.5

GSS 6915

660 x 920 x 1540 mm

26” x 36 ¼” x 60 5/8"

952

33.6

GSS 6917

660 x 920 x 1700 mm

26” x 36 ¼” x 66 7/8"

1051

37.1

GSS 71413

670 x 1450 x 1350 mm

26 3/8” x 57 1/8” x 53 1/8”

1370

48.4

GSS 91413

870 x 1450 x 1350 mm

34 ¼” x 57 1/8” x 53 1/8”

1762

62.2

GSS 91415

870 x 1450 x 1540 mm

34 ¼” x 57 1/8” x 60 5/8”

2010

71.0

GSS 91418

870 x 1450 x 1800 mm

34 ¼” x 57 1/8” x 70 7/8”

2349

83.0

GSS 91422

870 x 1450 x 2200 mm

34 ¼” x 57 1/8” x 7’ - 2 5/8”

2871

101.4

GSS 91815

920 x 1800 x 1540 mm

36 ¼” x 70 7/8” x 60 5/8”

2633

93.0

GSS 91825

870 x 1800 x 2500 mm

34 ¼” x 70 7/8” x 8’ - 2 3/8”

4275

151

GSS 121422

1220 x 1450 x 2200 mm

48” x 57 1/8” x 7’ - 2 5/8”

3988

141

GSS 92222

870 x 2200 x 2200 mm

34 ¼” x 7’ -  2 5/8” x 7’ - 2 5/8”

4356

154

GSS 122222

1220 x 2200 x 2200 mm

48” x 7’ -  2 5/8” x 7’ - 2 5/8”

6050

214

GSS 182222

1800 x 2200 x 2200 mm

70 7/8” x 7’ - 2 5/8” x 7’ - 2 5/8”

8857

313

Other sizes are available upon request.
