9122EW Cage and Rack Washer

Getinge 9122EW Cage and Rack Washer reduces the risk of contamination on vivarium equipment, ensuring the accuracy of your data. Working in cooperation with users, engineers, architects and facility planners, our equipment has been developed to satisfy the unique demands and stringent regulations of the industry.

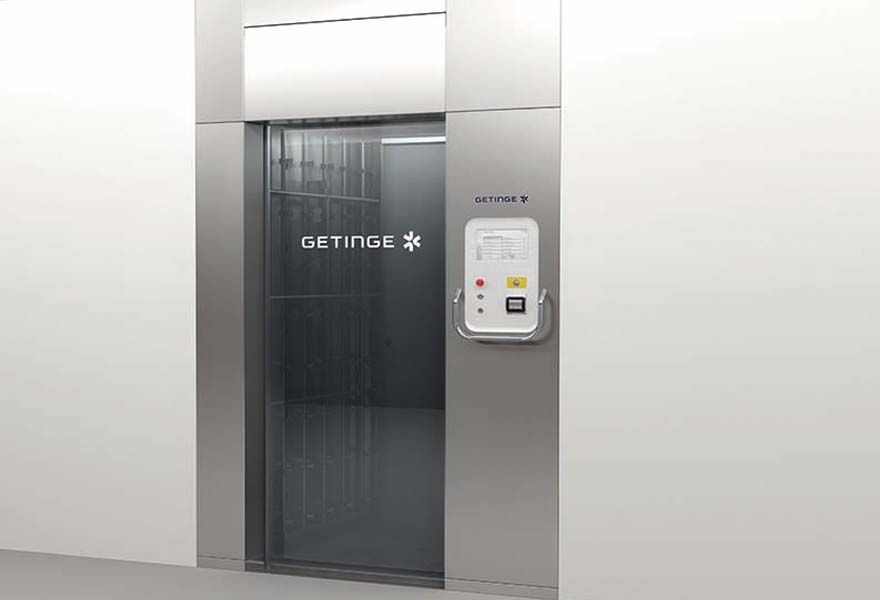

Closed front of the Cage and Rack Washer 9122EW for Biomedical Research
Cage and Rack washer 9122EW for Biomedical Research with loading rack with cages on all 4 levels
Cage and Rack washer 9122EW for Biomedical Research with full load rack

Maximized throughput with enhanced safety

The 9122EW Cage and Rack Washer combines good design and smart solutions to deliver the highest levels of efficiency in cleaning your equipment. Low operational cost and high throughput that comply with best practices within the industry.

Related products

Getinge 9122EW optimal cleaning

Optimal cleaning performance

108 individual wash/rinse nozzles on a vertical oscillated manifold direct water flow onto each load for optimum coverage. Automatic water docking system within the chamber adapts to the integral spray arms of the loading rack, providing effective cleaning performance with low utility consumption.

Getinge 9122EW Cage and Rack Washer

Low life cycle cost

Low life cycle cost due to integrated water saver and drying systems which conserves water, energy and detergent that effectively minimize the total operational cost with minimal environmental impact.

Getinge 9122EW Cage and Rack Washer

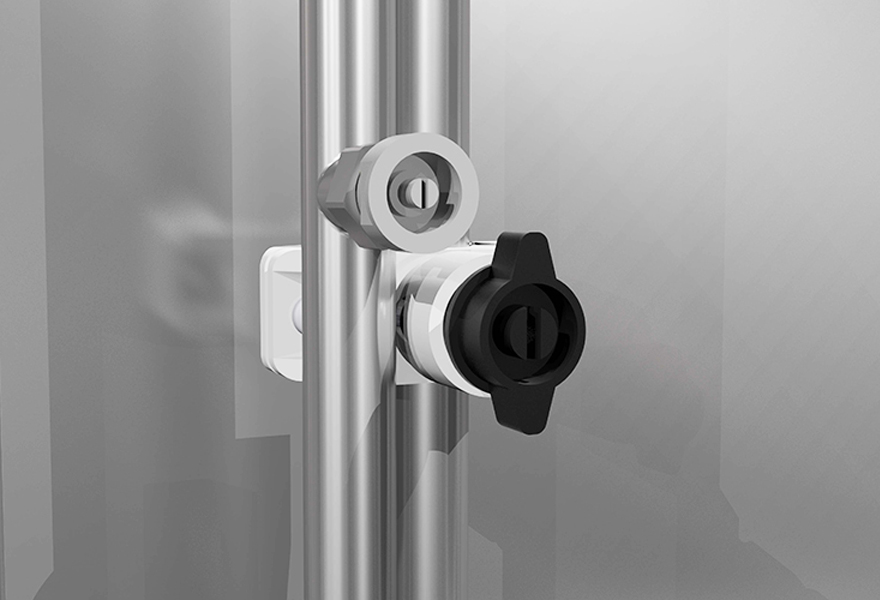

Direct rinse system

Single pass independent water distribution system with 48 separate individual nozzles for a non-recirculated rinse. Water consumed for the direct rinse can be reused and then be saved in one of the water saving tanks to even further reduce the utility consumption.

Getinge 9122EW


Pit or floor-mounted models, single or pass through with service access side on left or right. Several installation options are available that will fit your installation needs with minimal footprint due to the small and shallow pit required.

User interface

Intuitive one-touch interface

Information at a glance

Ensure productivity, capacity and efficiency with the innovative Centric user interface. The intuitive interface helps operators to clearly understand and visualize process notifications.

  • View the remaining process time and start-up choices, arranged in a clear and logical order.
  • Clear instructions reduce the risk of human error.
  • Large 10” high-resolution color screens are easy to read from the loading and unloading side, even from a distance.
  • Connectivity: Built in 2” printer, USB, Ethernet, and remote service through Getinge Online
Getinge 9122EW washer programm selection

1. Program Selection

The Program Selection screen lists factory presets, as well as additional presets added through administrator access.

Getinge 9122EW washer cycle in process

2. Cycle in Process

A real-time status screen displays time remaining until cycle completion and links to cycle detail screens with the touch of a button.

Getinge 9122EW washer cycle completed

3. Cycle Completed

The green Cycle Completed screen confirms completion of the cycle and indicates the washer is safe to unload.

Getinge 9122EW washer warning and alarms

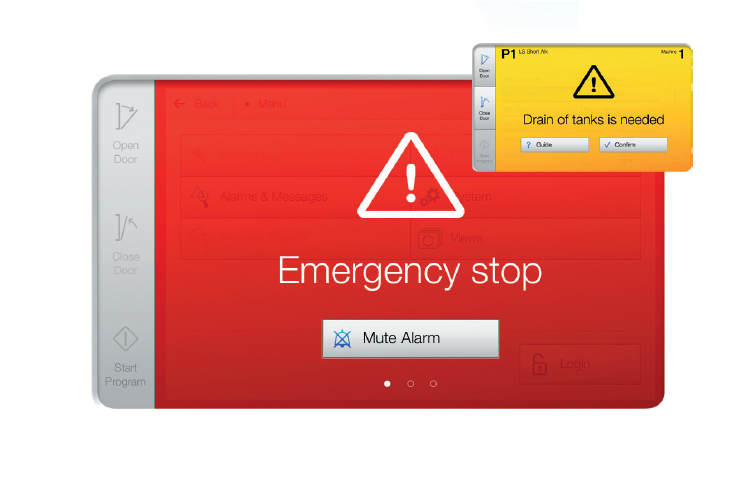

4. Warnings and alarms

The amber Warning Message screen provides a status report to prompt actions. The red Alarm Message screen confirms the reason for a system shutdown and prompts correction action needed in advance of a restart.

Efficient loading

High capacity loading rack

The loading rack is a 4-level wash cart with integrated spray wings for optimal cleaning performance. It enables ergonomic loading and unloading of a wide variety of cages, wire bars, and filter tops. The loading rack is also optimized for automated robotic cage handling since it will not need a specific turntable for loading/unloading.

Getinge 9122EW washer loading rack

Empty 4-level loading rack

Getinge 9122EW washer rack with cages

Loading rack with cages on 4 levels

Getinge 9122EW washer 3 level rack

Loading rack with cages, wire bars and filter tops
