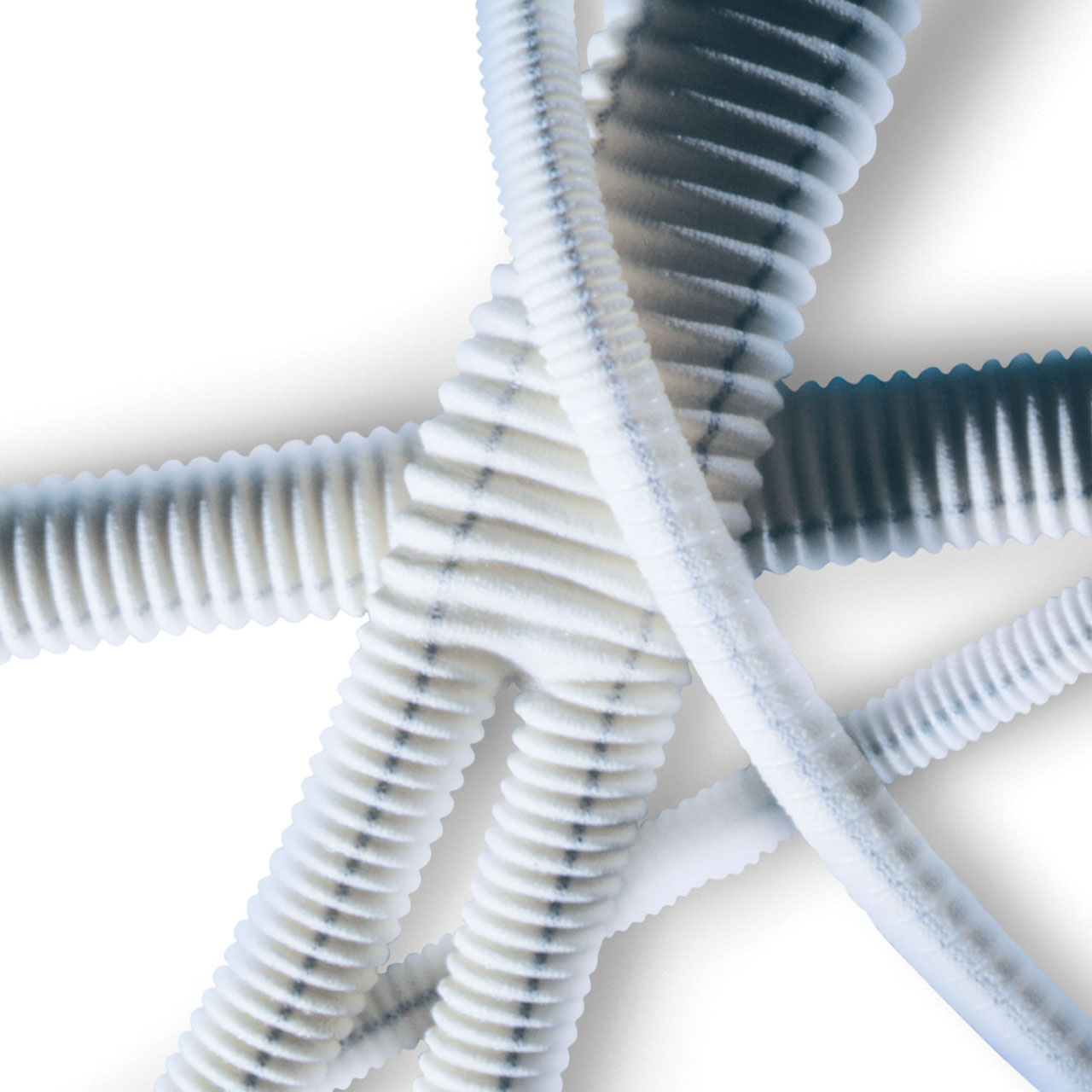

Intergard Heparin Knitted

Heparin Coated Vascular Grafts

  • Collagen-coated vascular graft
  • Fabric bonded with heparin, an anti-thrombotic substance
  • Reverse lock-knit knitting technique
  • External velour surface and non-velour inner surface
  • Magnetic Resonance Safe
  • Radially Supported grafts have a polypropylene supportive coil
  • Water permeability: < 5ml/cm²/min[1]

Please refer to the Document Tab for legal mentions of products manufactured by INTERVASCULAR SAS.

Questions? Contact us.
Intergard Heparin Knitted

Demonstrated Clinical Benefit[2]:

  • Higher patency rates at three years compared to PTFE grafts used in bypass procedures[2]
  • Significantly lower amputation rates compared to PTFE grafts used in bypass procedures[2]

Straight

 straight-intergard (1).png
Diameter   Length Reference   Diameter   Length Reference
14 mm 40 cm IGK0014-40H   6 mm 70 cm IGK0006-70H
16 mm 40 cm IGK0016-40H   7 mm 70 cm IGK0007-70H
18 mm 40 cm IGK0018-40H   8 mm 70 cm IGK0008-70H
20 mm 40 cm IGK0020-40H   10 mm 70 cm IGK0010-70H
22 mm 40 cm IGK0022-40H
24 mm 40 cm IGK0024-40H



Radially supported straight

 radially-supported (1).png
Diameter   Proximal / Distal Length Supported Length Total Length Reference
6 mm 35 cm / 15 cm 20 cm 70 cm IGK0006RS20H
8 mm 35 cm / 15 cm 20 cm 70 cm IGK0008RS20H
6 mm 25 cm / 15 cm 30 cm 70 cm IGK0006RS30H
8 mm 25 cm / 15 cm 30 cm 70 cm IGK0008RS30H



Bifurcated

 bifurcated (1).png
Diameter   Length Reference
12x6 mm 50 cm IGK1206H
14x7 mm 50 cm IGK1407H
16x8 mm 50 cm IGK1608H
18x9 mm 50 cm IGK1809H
20x10 mm 50 cm IGK2010H
22x11 mm 50 cm IGK2211H



Ultrathin straight

Diameter   Length Reference   Diameter   Length Reference
6 mm 40 cm IGKUT0006-40H   6 mm 70 cm IGKUT0006-70H
7 mm 40 cm IGKUT0007-40H   7 mm 70 cm IGKUT0007-70H
8 mm 40 cm IGKUT0008-40H   8 mm 70 cm IGKUT0008-70H



Ultrathin radially supported straight

Diameter   Proximal / Distal Length Supported Length Total Length Reference
6 mm 35 cm / 15 cm 20 cm 70 cm IGKUT0006RS20H
7 mm 35 cm / 15 cm 20 cm 70 cm IGKUT0007RS20H
8 mm 35 cm / 15 cm 20 cm 70 cm IGKUT0008RS20H
6 mm 25 cm / 15 cm 30 cm 70 cm IGKUT0006RS30H
7 mm 25 cm / 15 cm 30 cm 70 cm IGKUT0007RS30H
8 mm 25 cm / 15 cm 30 cm 70 cm IGKUT0008RS30H
6 mm 20 cm / 20 cm 45 cm 85 cm IGKUT0006RS45H
8 mm 20 cm / 20 cm 45 cm 85 cm IGKUT0008RS45H

Improve your knowledge with our eLearning and training courses

At Getinge Educational Institute, we have dedicated material for topics related to Intensive Care, Cardiovascular Procedures, Operating Room and Sterile Processing. We can support you with information about current technologies and best practices to boost your performance and productivity.
For more information about our onsite events or remote trainings, you can also contact your local sales & service representative.

Getinge Educational Institute

  1. 1. Data on file

  2. 2. Devine C, McCollum C; North West Femoro-Popliteal Trial Participants. Heparin-bonded Dacron or polytetrafluorethylene for femoropopliteal bypass: Five-year results of a prospective randomized multicenter clinical trial. J Vasc Surg. 2004 Nov;40(5):924-31.
