FlowMaxx Pro Quaternary Diaphragm Pumps

Single-use & multi-use integrated smart pumps

The FlowMaxx Pro pump range provides accurate and gentle handling of sensitive fluids when paired with Quattroflow pump heads. Featuring smart controls and an intuitive interface, these pumps ensure maximum cell viability and consistent, reliable operation across diverse applications.

Contact us about HPNE solutions

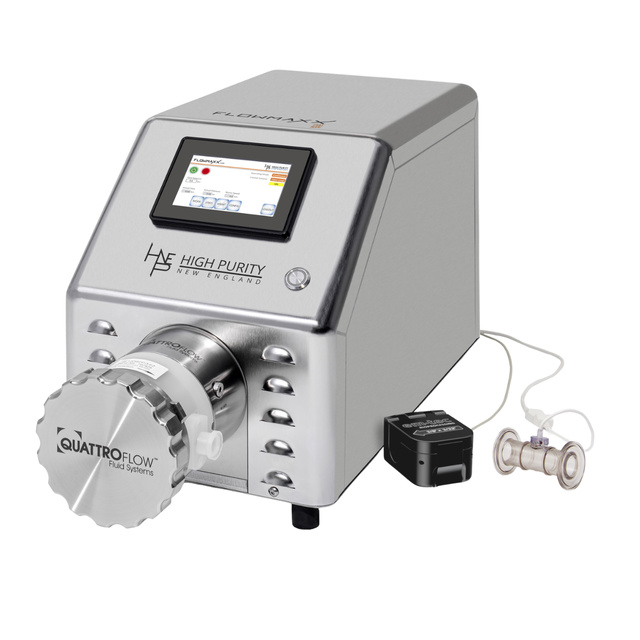

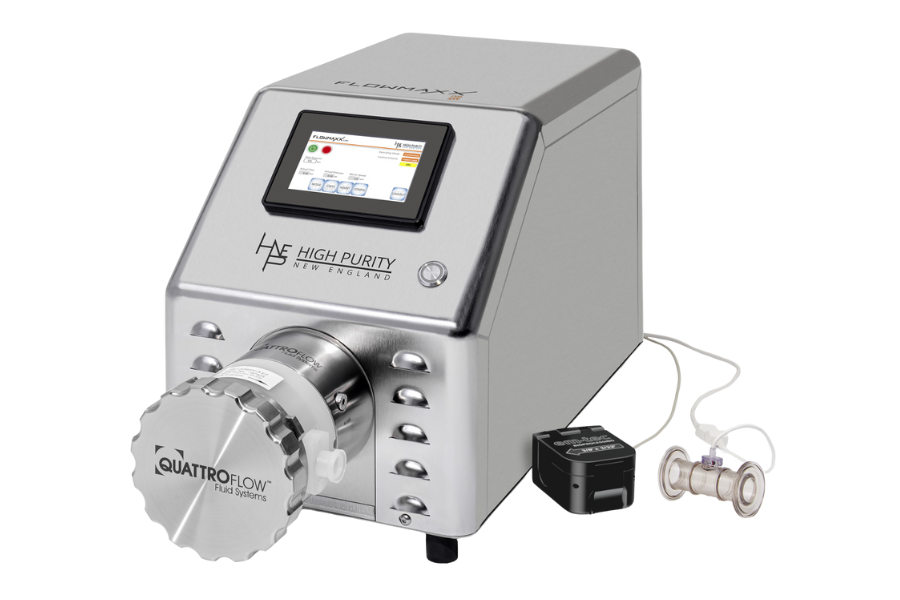

FlowMaxx Pro 1200 Quaternary Diaphragm Pump

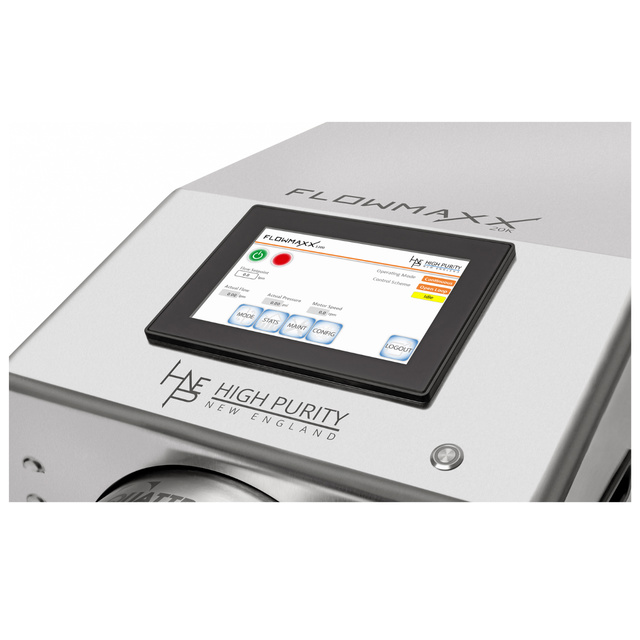

FlowMaxx Quaternary Diaphragm Pumps feature enlarged screens and upgraded software

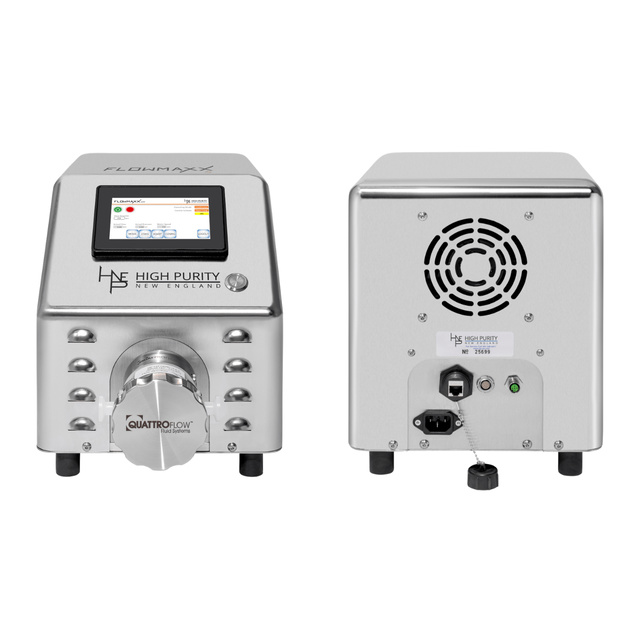

FlowMaxx Quaternary Diaphragm Pumps are created to work with Quattroflow Pump heads

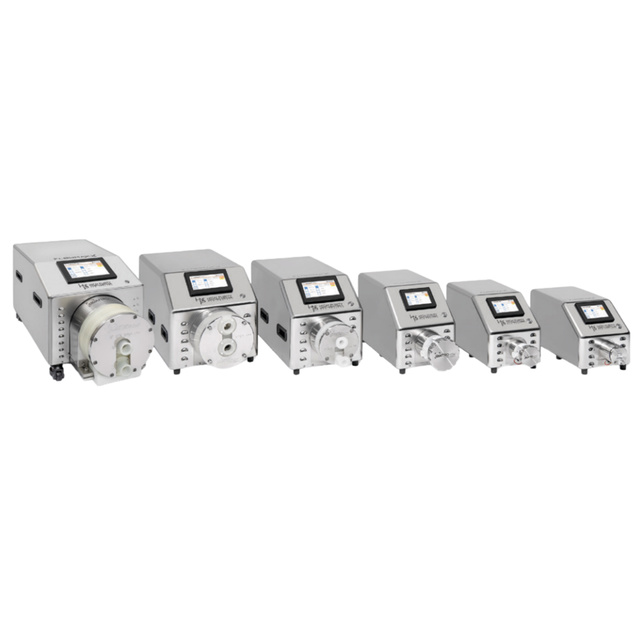

FlowMaxx Pro Quaternary diaphragm pump family shot

Pulsation-free, gentle fluid transfer

FlowMaxx Pro diaphragm pumps offer enhanced software capabilities with key features such as compatibility with flow and pressure sensors.

  • Solutions containing proteins (albumin, IgG, clotting factors, monoclonal antibodies, enzymes, vaccines)
  • Solutions of polymers or suspensions (silicon, latex, chromatographic media)
  • Cell suspensions (bacteria, yeast, algae, fungi, mammalian cells)
  • Colloidal solutions
  • Suspensions of viruses or phage

Touchscreen features

  • Priming feature
  • Input flow rates in liters per minute
  • Calibration of sensor by end user
  • Dispense mode with totalizer
  • Calibration based on customer fluid

Configurable capabilities

  • Integration of scales
  • Integration of flow and pressure sensors
  • Integration of a free-standing data logger
  • Pressure shut-off
  • PID control

Design advantages

  • Ease of use and quick start-up
  • Compact design with cleanable outer surface
  • Lower life cycle cost
  • Interchangeable heads in both single-use and stainless steel
  • Single-use pump chambers can be supplied gamma irradiated and can be autoclaved

Cell protection

  • Low heat generation
  • Low cell damage
  • Low shear
  • Quiet & walk-away operation
  • Minimal particle shedding

FlowMaxx Pro screen

FlowMaxx Pro screen

1. Open Loop

Fixed rate

Sets the pump to run at a constant, user-defined speed or flow rate without real-time sensor feedback or closed-loop correction.

2. Flow PID

Flow control

Engages the PID controller to automatically adjust pump speed based on real-time feedback from a flow meter, maintaining a specific target flow rate.

3. Pressure PID

Closed-loop control

Engages the pump's PID controller to automatically adjust the pump speed based on feedback from a pressure sensor, maintaining a specific target pressure.

4. Continuous

Steady run

The pump runs indefinitely until manually stopped by the operator, maintaining the set flow rate or pressure (depending on the control scheme selected).

5. Timed

Duration run

Allows the user to set a specific run time, after which the pump will automatically stop, ensuring the process runs only for the required duration.

6. Dispense

Precise dosing

Enables the precise delivery of a predetermined volume, utilizing the internal totalizer function for high volumetric accuracy.

7. Prime

System ready

Runs the pump at a user-defined high speed for a short duration to quickly remove trapped air or fully wet the fluid path, preparing the system for accurate operation.

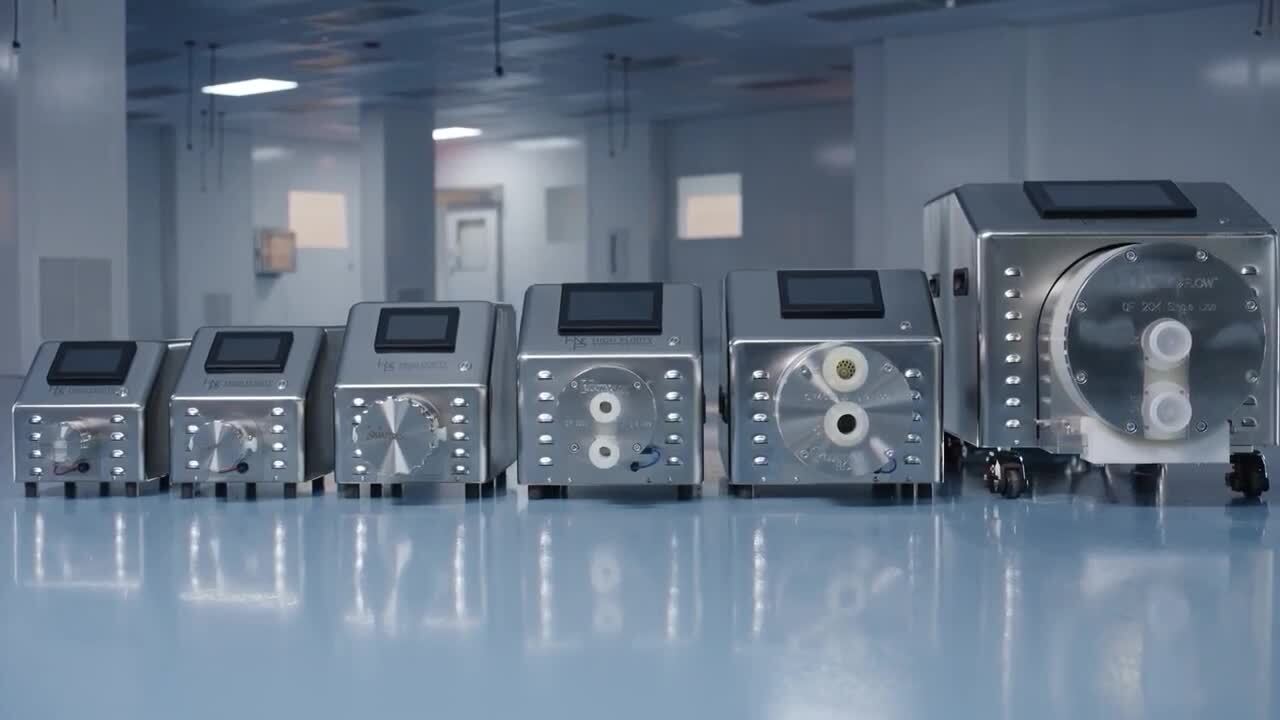

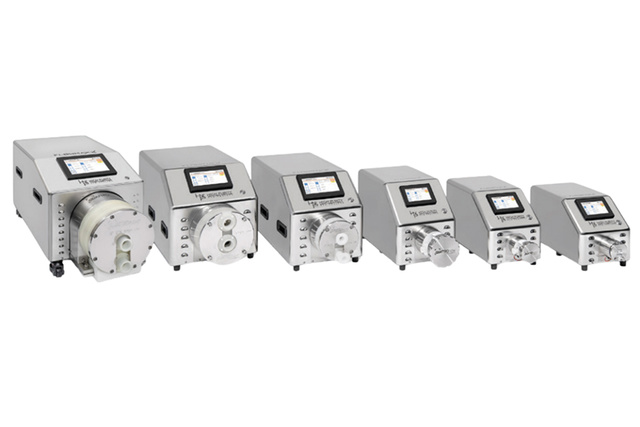

FlowMaxx Pro Quaternary Diaphragm Pump Family Shot


FlowMaxx Pro Pump range

With great accuracy and software features such as sensor calibration, FlowMaxx Pro has increased versatility and the ability to integrate into a wide range of unique bioprocesses. Through the enlarged main screen, users have the option to run their pump in multiple modes including continuous, time dispense, volume dispense, and PID control – all of which can be accessed without having to log in.

Range comparison


Models FlowMaxx Pro 30 FlowMaxx Pro 150  FlowMaxx Pro 1200  FlowMaxx Pro 2500  FlowMaxx Pro 4400  FlowMaxx Pro 20k
Flow rates 1mL/min to 500mL/min 0.01L/min to 3.8L/min 0.32 L/min to 27.4 L/min 0.67L/min to 54L/min 2.4L/min to 128L/min 16.67L/min to 360L/min
