- Powerful stand-alone motor controller for laboratory applications
- Support of maintenance-free brushless motors reduces costs
- Easy operation due to very intuitive user interface
The Motor Controller can be used in bioprocessing applications as a (more powerful) external motor controller for biocontrollers, such as the in-Control, or as a stand-alone controller that can be used for mixing applications. These can be mixing of medium tanks in bioprocessing applications or general mixing purposes in any industry. Furthermore, the Motor Controller can be used as replacement of the ADI 1032 motor controllers.
The Motor Controller can be controlled remotely, which allows for easy integration in existing systems and also allows for data logging in to external software platforms.
Intuitive user interface

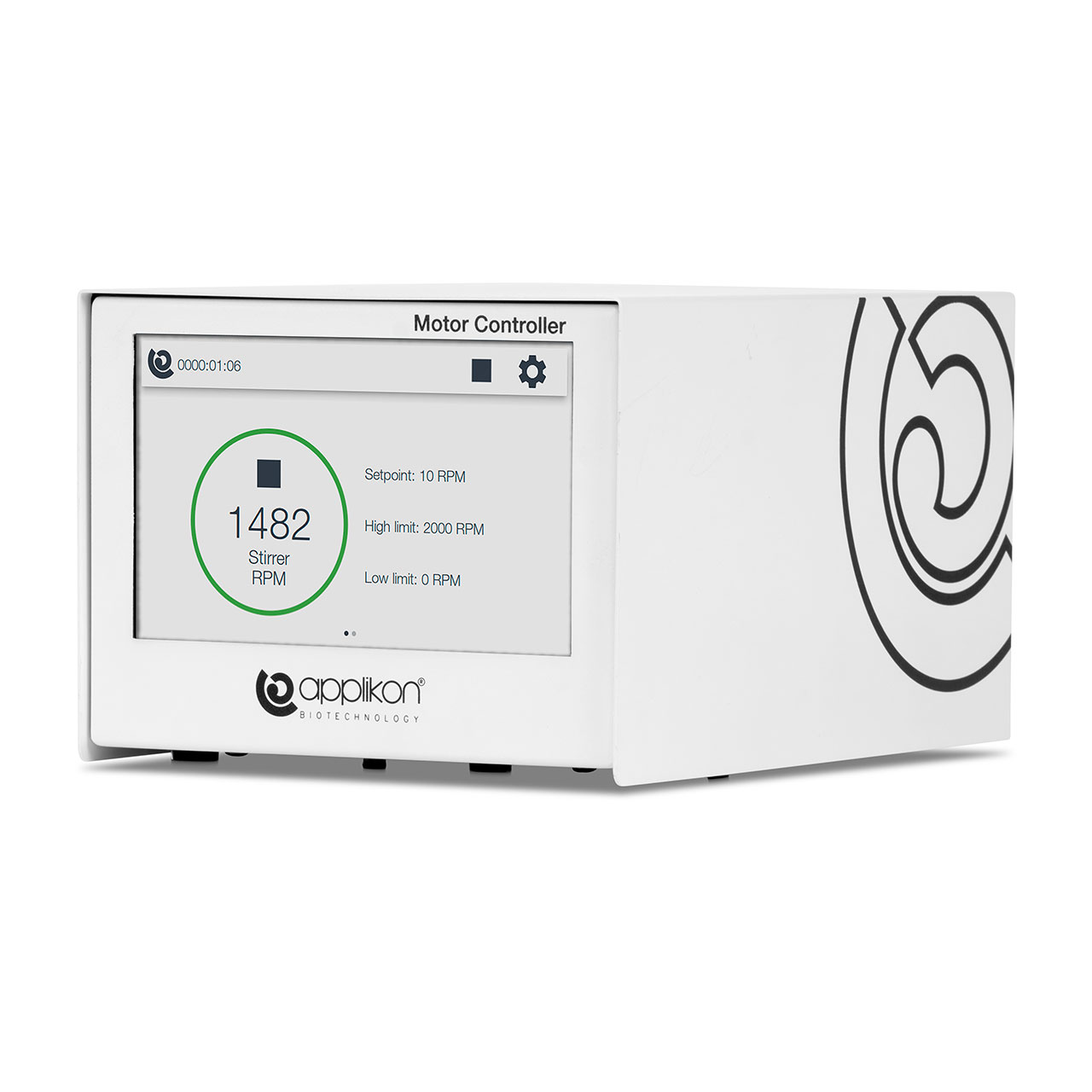

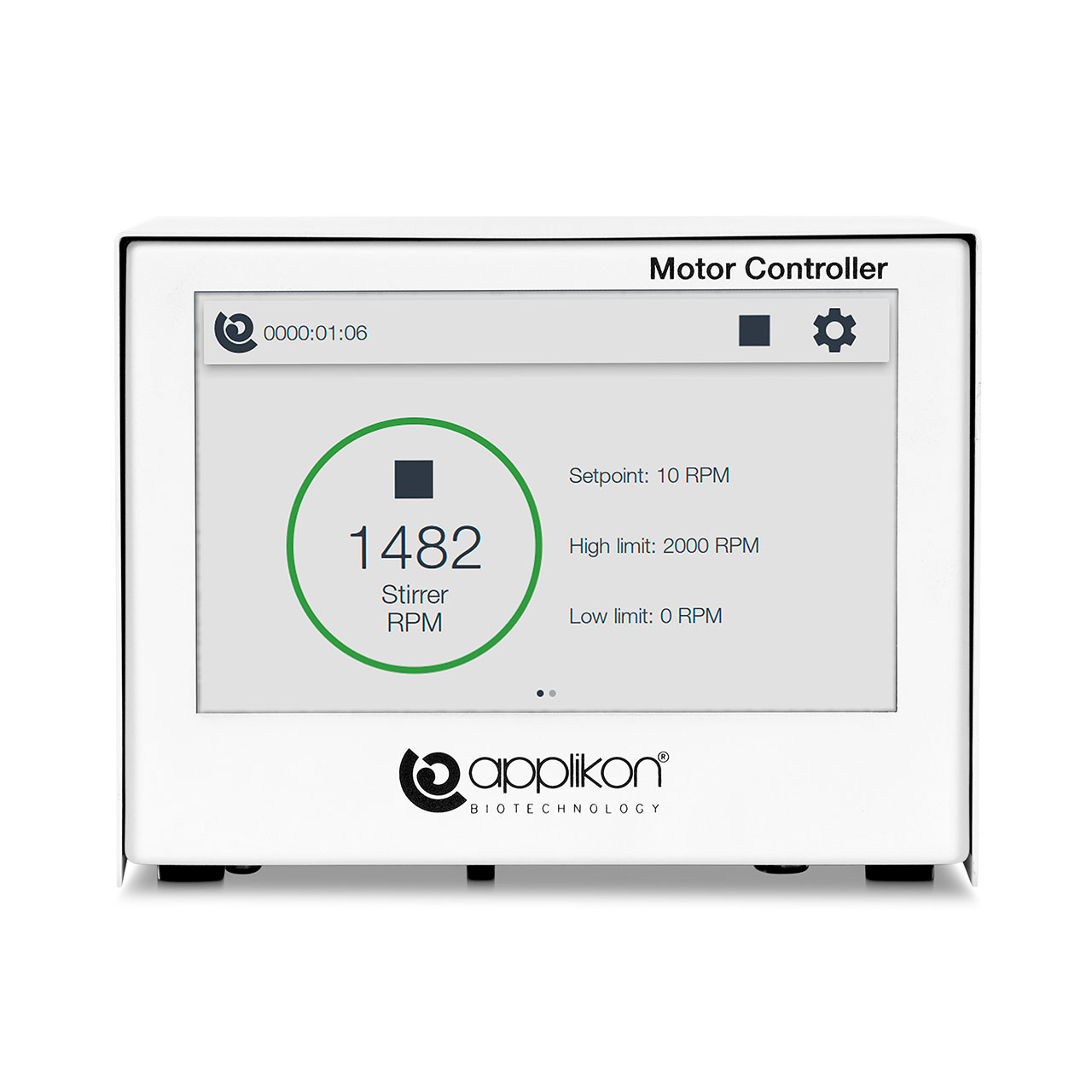

The Motor Controller comes with an intuitive 7" color touchscreen user interface. Its software has been developed to make it very easy for the operator to work with the controller, like integrated trending and alarming options.
This stand-alone controller can be integrated with biocontrollers and/or SCADA software through external control possibilities making it a powerful solution for laboratory applications.
Brushless motor support
The Motor Controller supports 4 different types of brushless stirrer motors for control up to 130 L vessels. Since those brushless motors are maintenance-free the costs for cultivations can be decreased.
|Measurement and control range||M10: 0 - 2000 rpm
M14: 0 - 750 rpm
M20: 0 - 2000 rpm
M33: 0 - 1000 rpm
|Measurement and control accuracy||0.1 % of full scale|
|Motor type||DC, permanent magnet|
|Safety features||External E-stop|
|External control||Via analog signal
SCADA through ethernet connection
|Control hardware platform||Applikon proprietary|
|Control software platform||Applikon firmware|
|Certifications||CE certified, GAMP compliant|
|Connectivity||Compatble with SUB-Control, ez-Control, ez2-Control, my-Control, and in-Control|
The Applikon Motor Controller is ideal for the following applications:
- Stirrer motor controller in bioprocessing application
- Mixing device for general mixing purposes
