Getinge 86-series

A smarter range of washer-disinfectors for high-throughput reprocessing

Getinge 86-series washer
Getinge 86-series operator
nurse monitoring the Getinge 86-Series disinfector

Easy to load, operate and maintain

The Getinge 86-series Washer-Disinfectors are a premium resource for your CSSD. Each model is easy to load, operate, and maintain, improving employee workflows for increased efficiency.

Getinge 86-Series UI

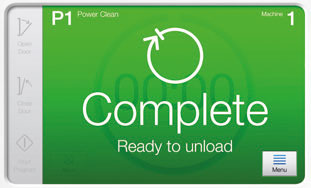

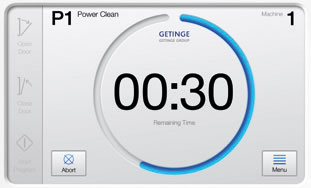

Easy to read

Status at a glance: easy-to-see the time remaining, even from a distance.

Getinge 86-Series UI

Clear, concise info

The user interface provides clear, uncluttered information – only what you need at any particular stage, nothing more.

Getinge 86-Series UI

Help at your fingertips

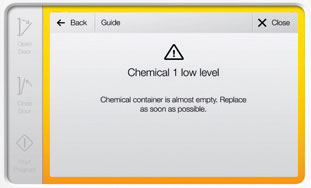

Clear, easy-to-understand help for problem solving or accessing advanced features are available directly from the user interface.

Getinge 86-Series UI

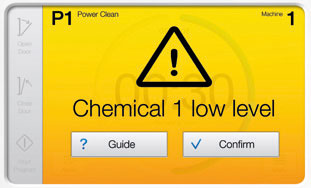

Alarms that guide users

Every triggered alarm comes with clear on-screen directions for what action to take.

Reduced water, detergent and energy consumption

The S-8668T uses the lowest possible amounts of water, detergent, and energy for a product of its size, reducing your overall environmental impact. A circulation pump with variable speed control can reduce water consumption and help your CSSD meet its sustainability goals.

Better use of space

The high-capacity washer-disinfector makes more efficient use of floor space in the CSSD.

Optimized efficiency

Pre-programmed cycles ensure maximum efficiency without any wasted time or resources. With a load capacity up to 12 US trays (18 DIN trays) and the flexibility of removable shelves and spray arms to adapt to different loads with the same wash cart, Getinge ensures the greatest throughput and utilization of your washer and equipment.

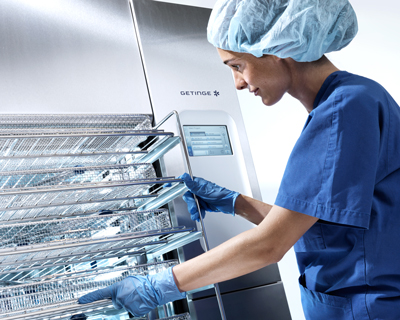

Improved ergonomics

Smart load carriers and improved ergonomic design minimize the physical strain on CSSD staff.

Hands-free loading and unloading

Automating loading activities within your CSSD can reduce your overall operational costs. Getinge's optional flexible and easy-to-clean loading/unloading, AGS and return conveyor systems improve department efficiency and can be scaled to meet even the largest department's demands.

STAT Cycle

Getinge S-8668T is capable of delivering 23:30 process times with STAT Cycle.

Technical data

Measurements - internal

Model:   Getinge S-8666
(double door)
Getinge S-8668/S-8668T
(double door)
Wash levels pcs 6 6
Chamber volume (gross) L / Cu ft 430 / 15.18 480 / 16.95
Chamber volume (effective) L / Cu ft 316 / 11.16 351 / 12.4
Chamber width (effective) mm / in 650 / 25.59 650 / 25.59
Chamber depth (effective) mm / in 730 / 28.74 810 / 31.89
Chamber height (effective) mm / in 667 / 26.26 667 / 26.26
DIN/US trays/load pcs 8 din/US trays 12 US trays
SPRI I** trays/load pcs 10 10

**=SPRI I=450x340x70mm

Measurements - external

Model   S-8666 S-8668/S-8668T
Width mm / in 1,110 / 43.7 1,110 / 43.7
Depth mm / in 910 / 35.8 990 / 39
Height mm / in 1,870 / 73.6 1,870 / 73.6

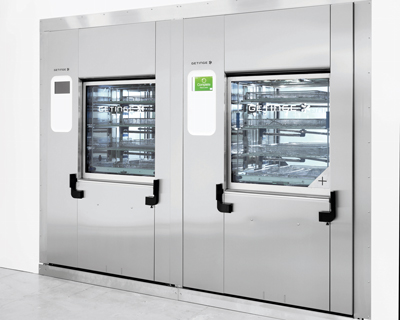

Getinge S-8668T

Higher throughput

Getinge S-8668T offers a smarter process: using the multitasking capability with our well proven turbo concept to reduce the non-productive time, to enable and secure the most effective process in any given application. The result - industry leading cycle times for both steam and electric powered washers.

nurse monitoring the Getinge 86-Series disinfector

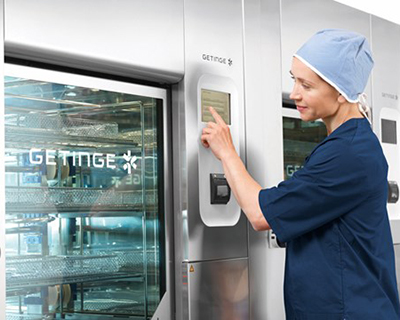

Highly intuitive user interface

The 86-series Washer-Disinfectors feature an innovative and user-friendly interface display. The intuitive design requires less training, and can be easily operated by staff at all experience levels.

Large 7-inch high-resolution screens are easy to read and monitor, even at a distance. These screens display your most critical process information clearly and logically, including remaining cycle time and start-up selections.



Pull-out service frame

For easy service access. Watch our video to learn more.
