Precise dosing, easy control, minimal downtime

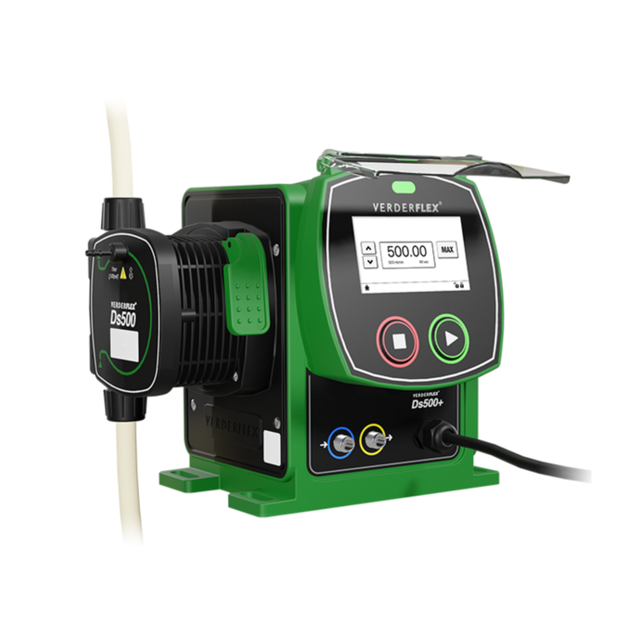

The Verder Verderflex Ds500 utilizes precise peristaltic technology, offering significant advantages over traditional systems by removing the need for complex pipework or valves. This design not only improves accuracy, leading to less chemical usage and direct cost savings, but also excels with difficult media like abrasives and slurries. Furthermore, the pump minimizes whole-life costs through its "click and go" cartridge change—the only wearing component—and leverages Remote Assistant (RA) for IoT monitoring, actively managing and minimizing downtime.
Designed for versatile and reliable precision, the Verderflex Ds500 is the solution for a broad spectrum of challenging fluid metering and transfer applications, including:
- Metering & dosing
- Disinfectants
- Pigments
- Acids/Alkalies
- Cleaning agents
- Sampling
- Flocculants
- Additives
Technical features
Performance & accuracy
- Accurate flow performance from 0.001 to 8 GPH(US)
- Handles pressures of up to 102 PSI
- Repeatability of up to ±1% accuracy with reduced pulsation flow
- Minimal fluid 'live' containment ensures user safety and reduced clean up
Design & maintenance

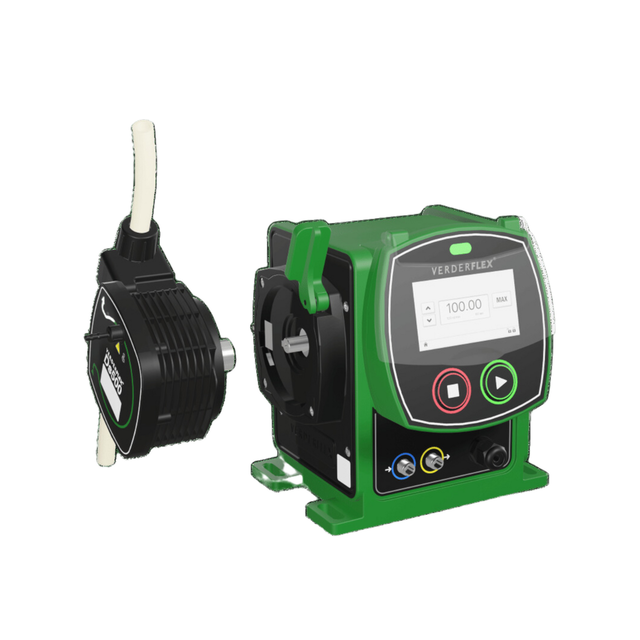

- Maximum working time/minimum downtime with tool-free cartridge changes in situ.
- No valves—meaning non-clogging, no degassing required, and pump is abrasion-resistant
- Space-saving footprint with secure mounting for easy integration into pump systems
Control & connectivity
User interface

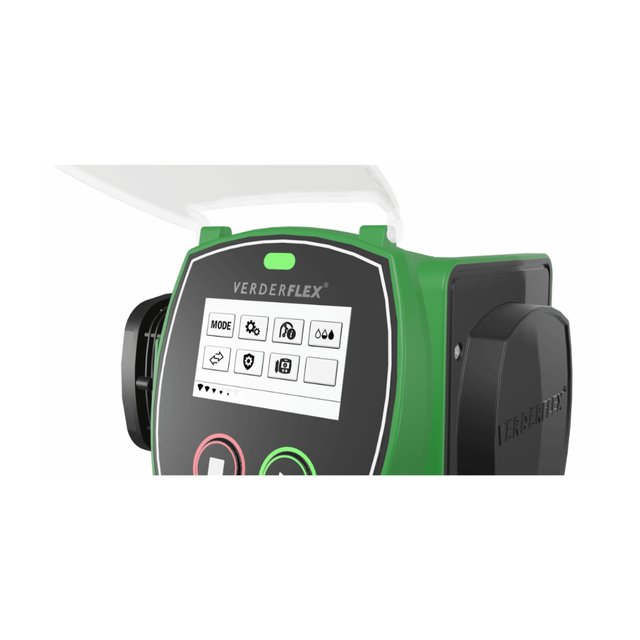

- Full colour 4.3” TFT touchscreen
- Keypad lock
Low profile
- Fault reporting
- Leak detection
- Auto restart (after power is restored)
- Pin to protect set up (security)
Technical data
| Max. flow rate | 0.11 GMP |
| Max. suction lift | 101.5 PSI |
| Accuracy | Up to +/- 1% |
| Speed | 0.01 - 65 rpm |
| Max. temperature | 158 °F |
| Weight | 16.53 lb |
| Turn down ratio | 5000:1 |
| Control options | 4-20 mA |
| Protection class | IP66, NEMA Type 4X |
