Engineered for continuous, demanding performance
The Verder Verderflex Vantage 5000 peristaltic pump is specifically engineered to provide consistent, reliable, and highly accurate liquid dosing, expertly meeting the most stringent standards of delicate aseptic and pharmaceutical environments. Its robust capability extends further, offering proven durability and exceptional performance at pressures exceeding 7 Bar to handle the demanding fluid transfer requirements of diverse sectors, including water treatment and mining.
The Verderflex Vantage 5000 is engineered with proven versatility, providing highly reliable dosing across a broad range of demanding application settings:
- Aseptic pump processing
- Purification processes
- Clarification
- Concentration
- Ultrafiltration
- Diafiltration
- Chromatography
- Media preparation
- Buffer preparation
- Fermentation
- Purification
Precise dosing
- 4000:1 high-resolution turndown ratio
- Accuracy consistently maintained within 1%
- Eliminates product waste and costly overdosing
- Wide flow range: 70 µl/min up to 6600 ml/min
Secured data
- Time-stamped event logging with 1GB memory
- Stores events for the past 10 years for comprehensive record-keeping
- Demonstrates compliance and simplifies documentation for all audits
- Protection via three-level password access (PIN codes)
Protected processes
- Gentle, low-shear peristaltic action
- Preserves cell viability and product integrity
- Remote monitoring available via the Verderflex App
- Flexible remote control options (0-10V, 4-20mA, MODBUS, PROFIBUS)
Simple workflow

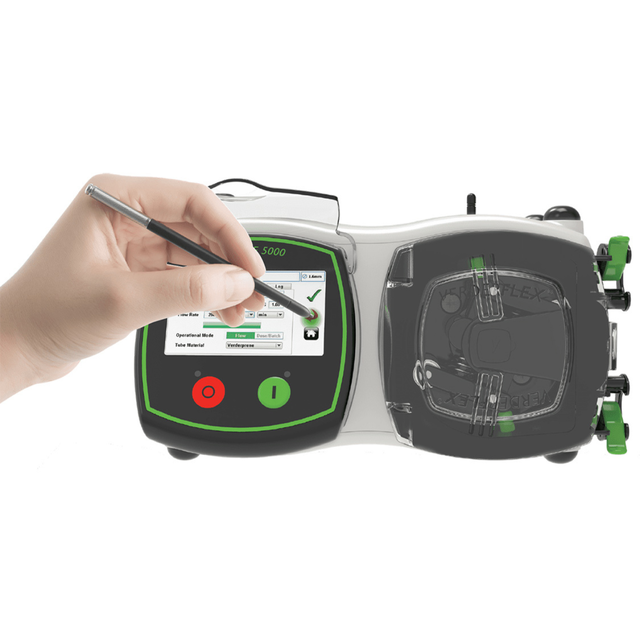

- Intuitive icon-based touchscreen interface
- Ability to store up to 30 dosing programs locally
- Reduces operator errors and speeds batch setup
- USB backup for programs and job history transfer
Technical data
| Max. flow rate | 6600 ml/min, 396 l/h |
| Max. pump speed | 400 rpm |
| Max. discharge pressure | >7 bar |
| Speed control ration | 4096:1 |
| Temperature | 5°C - 40°C |
| Ingress rating | IP66 / NEMA 4X (washdown) |
| Power supply | 85-265V 50/60Hz AC single phase with fuseless reset switch |
| Humidity | (condensing) 10-100% RH |
| Torque rating | 2.2Nm, continuous duty |
| Noise | <70dB (A) at 1m |
| Weight |
12 kg |
