OptiMaxx TFF

Tangential flow filtration system

The OptiMaxx tangential flow filtration system is a versatile and scalable tool with a small footprint, digital recipe storage, and the ability to operate in benchtop or skid configurations using single or multi-use conventions, all while offering customizable sizes and pre-programmed UF/DF phases to meet unique processing needs.

Contact us about HPNE solutions

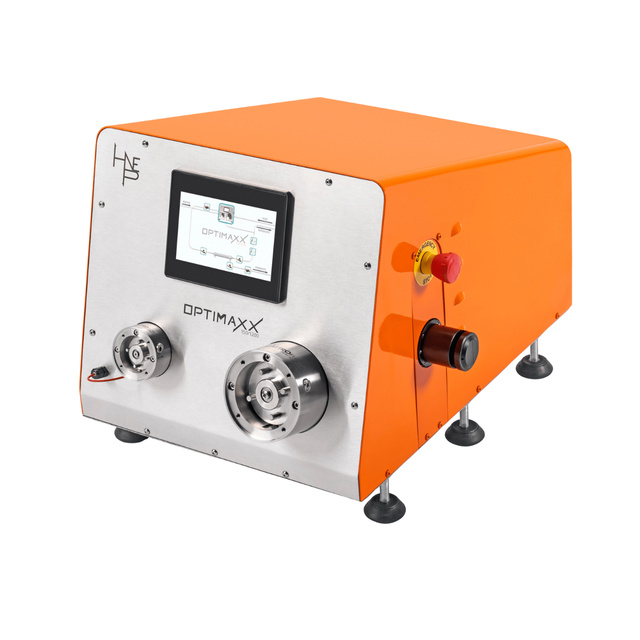

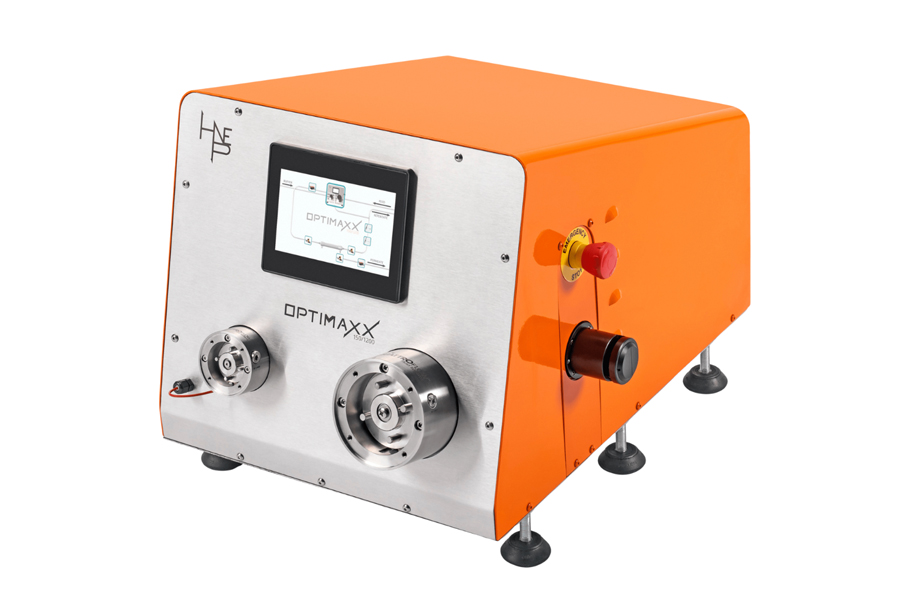

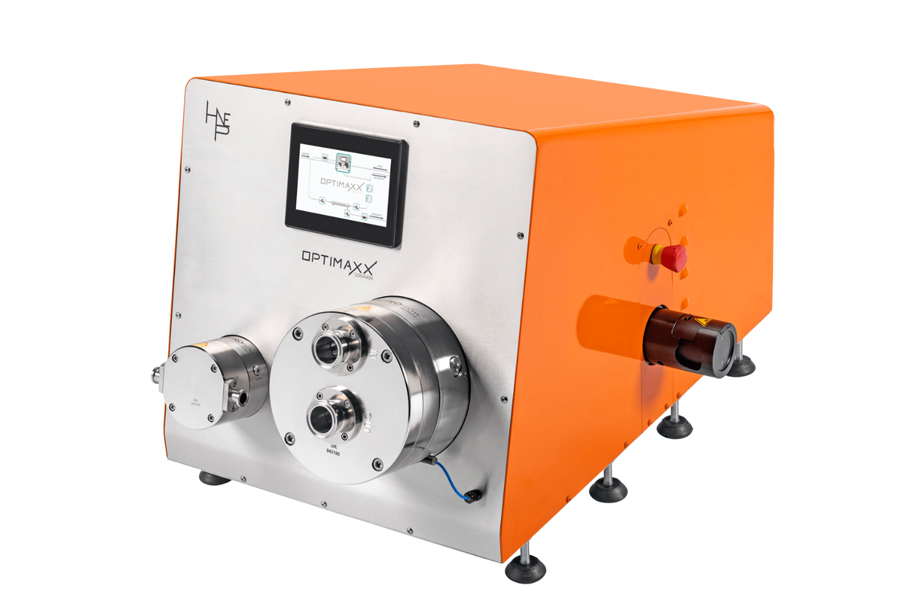

OptiMaxx 150/1200 Tangential Flow Filtration System

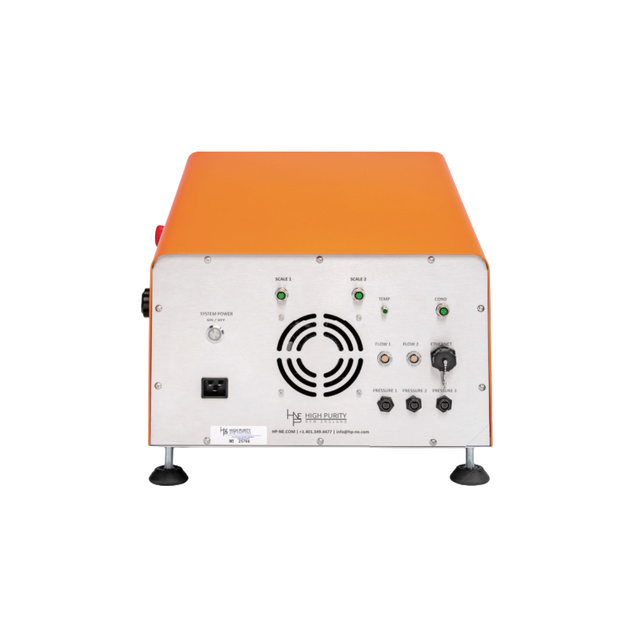

OptiMaxx has the flexibility to use temperature, pressure, conductivity or flow sensors from any manufacturer

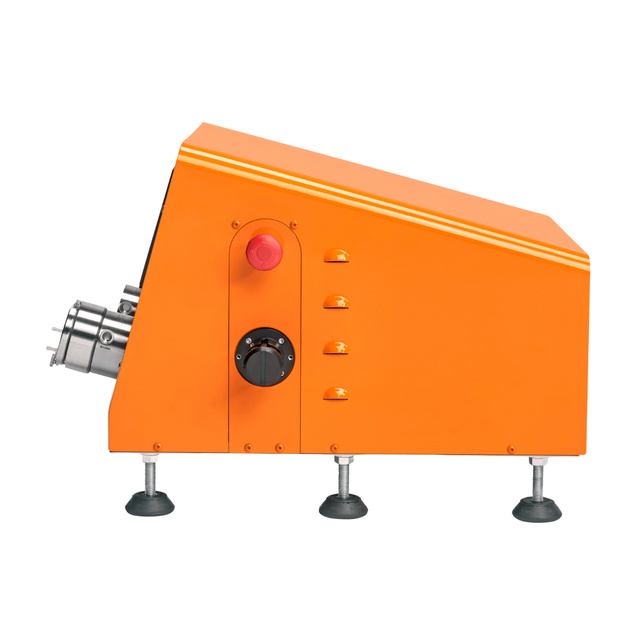

Built-in alarms and warnings allowing the user to stay focused on other tasks

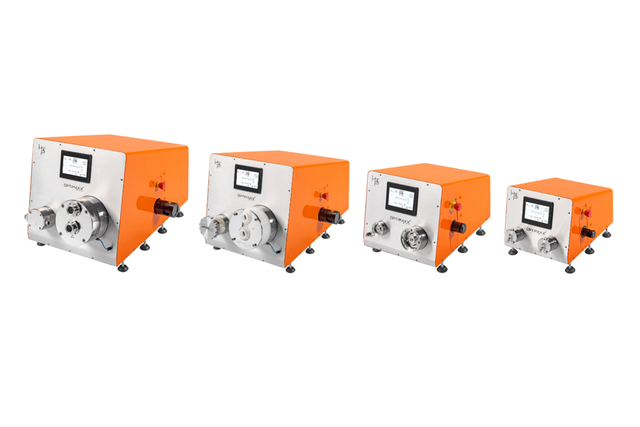

OptiMaxx TFF systems available In different sizes to scale-up or scale-down your process

Dynamic, separation control with a small footprint

Ensure dynamic separation & filtration control for all tangential flow filtration applications, while maintaining a small footprint.

Filtration control schemes

  • Ability to run each step separately
  • Pressure control
    • TMP
    • ΔP
  • Flow control by volume or weight

Related products

FlowMaxx Pro Pumps

HPConnexx

Related products

FlowMaxx Pro Pumps

PSG Biotech Quattroflow Diaphragm Pumps

PSG Biotech Quattroflow EZ-Set
View all

Automation & control

  • Ability to store digital recipes in the device’s memory
  • Intuitive touch screen interface and user-defined processes and alarm set points
  • Built-in alarms and warnings
  • Able to run in either manual mode or automatic mode with minimal interaction from end user
  • Dual pump control allows the user-defined process to operate either in tandem or independently to cover a wide variety of processing needs

Customization & flexibility

  • Open architecture allows the user to select both the sensors and the filters
  • Flexibility in using a temperature, pressure, conductivity or flow sensor from any manufacturer
  • Capable of using a flat sheet or a hollow fiber filter
  • Can be used as a benchtop TFF system or for skid configurations

Scalability & performance

  • Sizes cover a wide range of flow rates, and maintain the same recipe and control features to ensure process scalability
  • Many customizable, pre-programmed UF/DF phases:
    • Concentration
    • Diafiltration
    • Flush
    • Recovery
    • As well as many more.
  • Takes two scale inputs from Mettler Toledo

Data & compliance

  • Data storage – either local or ODBC database
  • 21 CFR part 11 software module compliant via customer sequel database
  • Can integrate with existing MES or batch record as a custom option

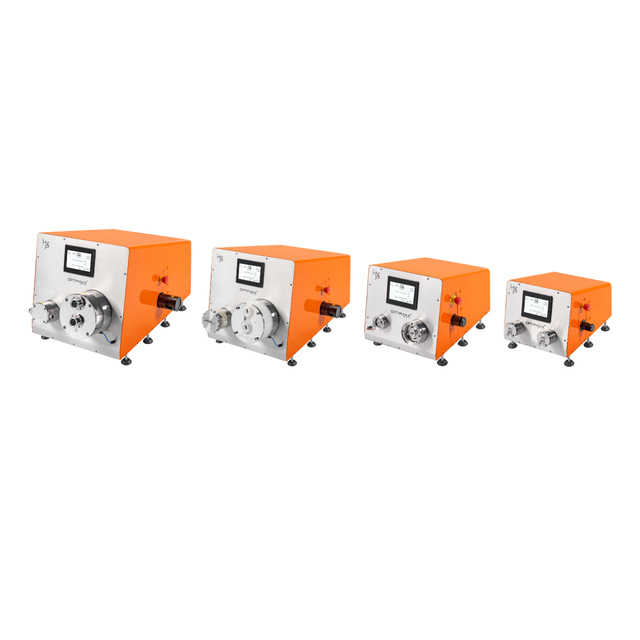

OptiMaxx TFF systems available In different sizes to scale-up or scale-down your process


OptiMaxx Pump range

With its intuitive touchscreen and advanced recipe configurator, the OptiMaxx tff system is a strong solution for your bioprocessing needs. Its open architecture allows for complete customization, letting you choose your own sensors and filters to optimize your process. The system, available in multiple sizes, works with both single-use and multi-use conventions, and can be configured for benchtop or skid use.

Range comparison

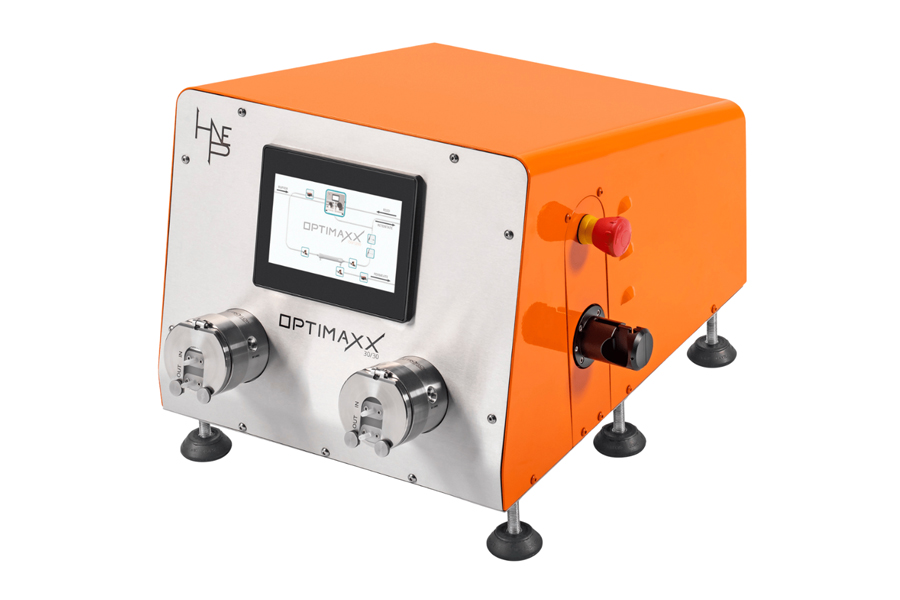

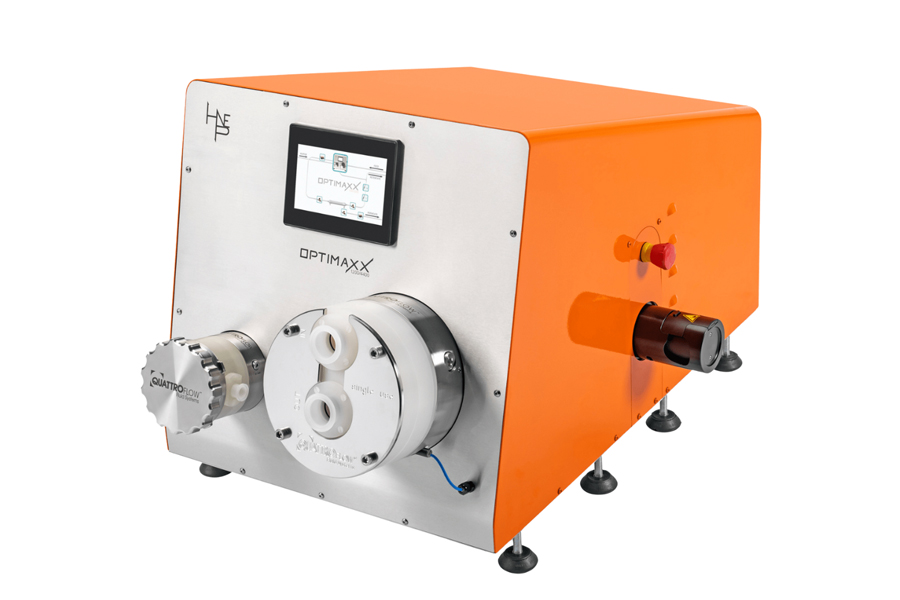

Models OptiMaxx 30/30 OptiMaxx 150/1200  OptiMaxx 1200/2500 OptiMaxx 1200/4400
Power 110V AC @ 15 AMPS
Single Phase
60 Hz		 110V AC @ 15 AMPS
Single Phase
60 Hz		 230V AC @ 30 AMPS
3-Phase
60 Hz		 230V AC @ 30 AMPS
3-Phase
60 Hz
Flow rates Feed: 0.001-0.5L/min
Buffer: 0.001-0.5L/min		 Feed: 0.2-28L/min
Buffer: 0.017-3L/min		 Feed: 0.4-42L/min
Buffer: 0.2-28L/min		 Feed: 2.5-120 L/min
Buffer: 0.2-28L/min
