Ultrasonic Cleaner Model 1522
Select region

Ultra Clean Systems 1522 freestanding model

The 1522 handles large volumes with ease.

Our freestanding cleaners are engineered to deliver a thorough cleaning in a short time. Our industry-exclusive titanium rod transducer (TRT) technology delivers uniform energy through the entire basin, ensuring complete cleaning of the instruments.

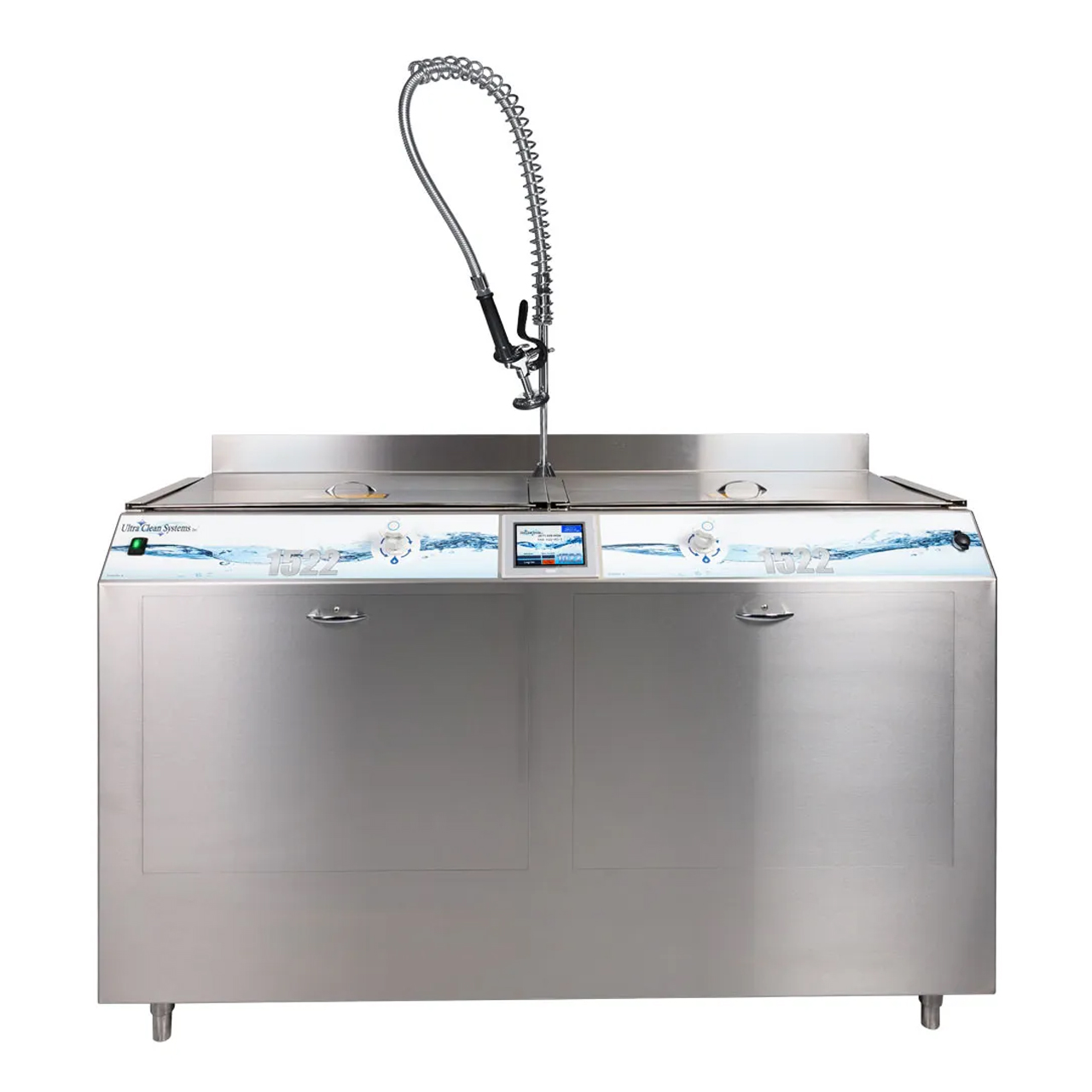

Ultra Clean Systems Floor model 1522

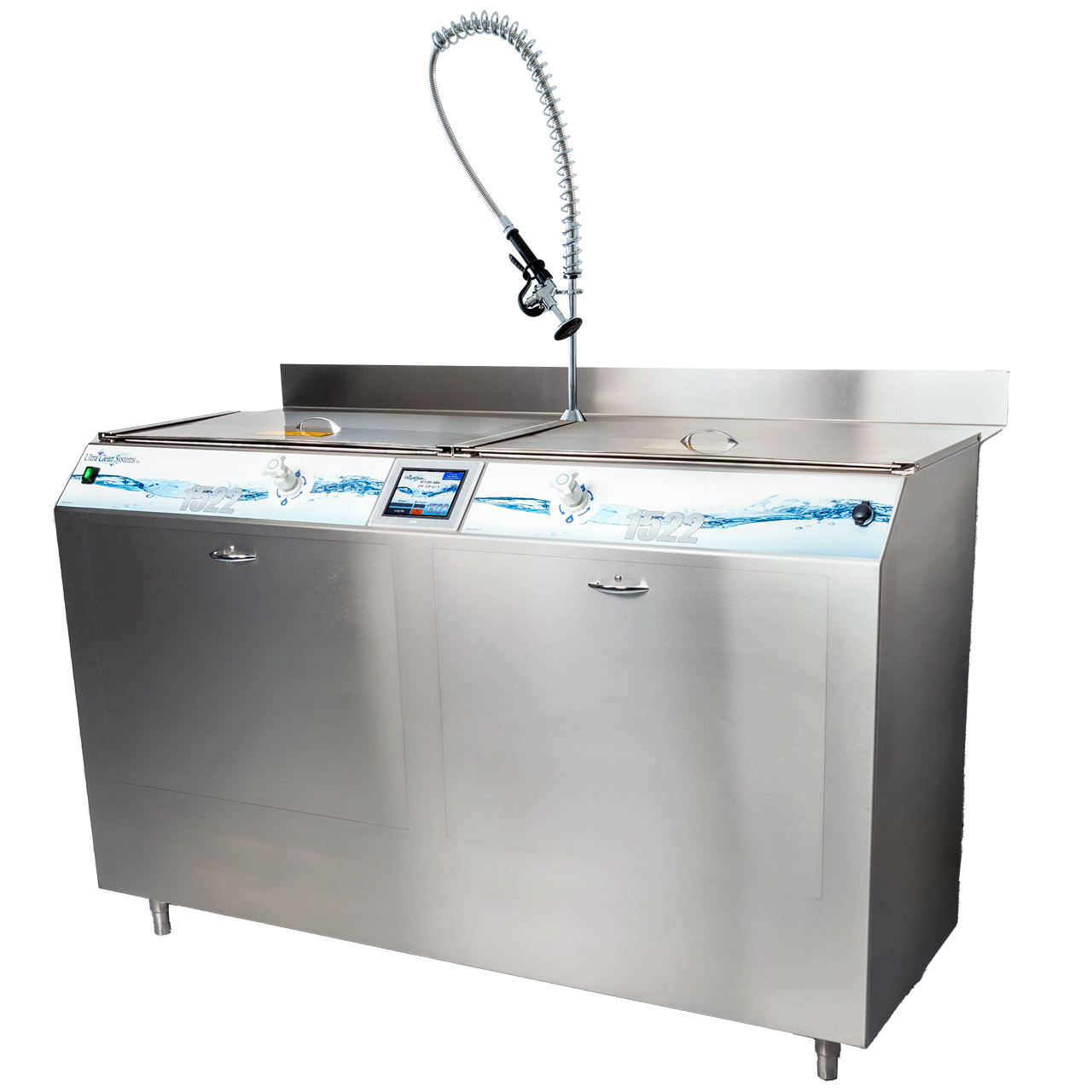

Ultra Clean Systems Floor model 1522

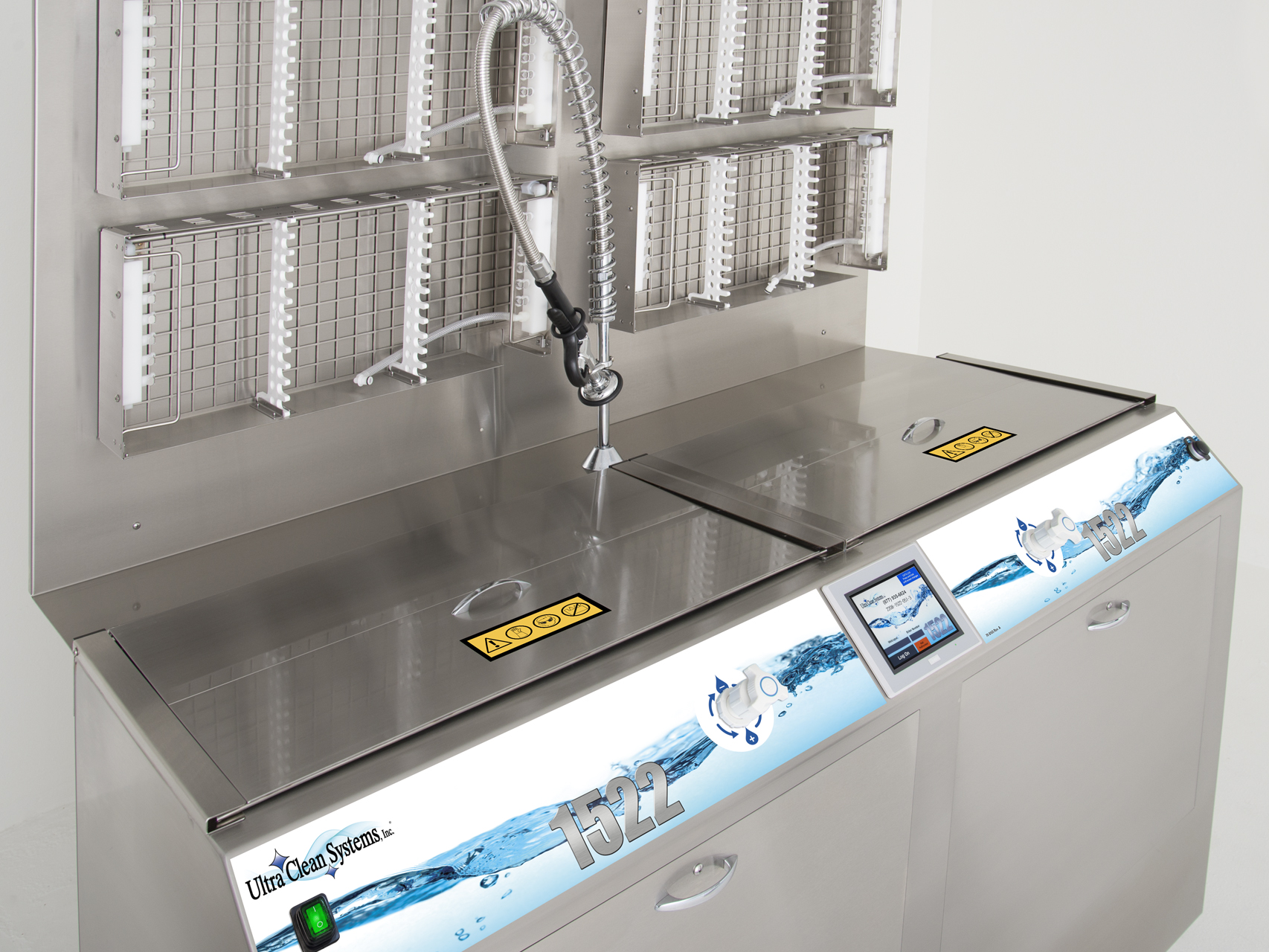

Ultra Clean Systems Floor model 1522

Powerful ultrasonic cleaning

With this freestanding ultrasonic cleaner, cleaning can be achieved at the push of a button. Automated features like enzymatic cleaner dispensing and wash cycles combine with adjustable features like irrigation flow control to increase both productivity and flexibility. A 30" pull-down spray faucet makes rinsing lumen instruments efficient.


High capacity with versatility

This double-basin ultrasonic cleaner can process lumen, nonlumen, da Vinci robotic and deep orthopedic trays. It accommodates two robotic trays or four lumen trays, with a total capacity of 50 lbs.

Industry-leading technology

A titanium rod transducer resides in the basin rather than outside and provides a more uniform energy distribution. Combined with its high cavitation energy output (81 watts per gallon with a frequency of 40 kHz), it provides a more thorough, faster cleaning cycle.

Ease of use

The user-friendly 5.7” touchscreen and simple software design make it easy to operate. Cycles and timers are easy to adjust.


The 30" pull-down spray faucet allows nonlumen instruments to be rinsed in the machine instead of in a sink. Bioburden and soils removed from the instruments are trapped in an easily replaceable drain filters.

Related products


Adjustable cycle times allows you to adhere to the instrument manufacturer’s IFUs, promoting fast and efficaous processing.


Industry-exclusive TRT technology provides powerful cavitation, allowing operators to clean more instruments in less time than bonded transducers.


Fully automatic wash, flush, internal and external rinse, and air purge.


Basin can accommodate large instrument sets while the overall unit size fits well within space constrained SPDs.


Easy-to-use 5.7” touchscreen with programmable timer.


Adjustable irrigation allows you to control water flow for multiple instrument types.


Works with the optional UCS-Verify data logging system.


Tap, reverse osmosis, and deionized water compatible.


  • Recommended 8- to 13-minute ultrasonic cleaning cycles for laparoscopic and nonlumen instruments
  • Dedicated 15-minute cycle for da Vinci S or Si robotic instrument cleaning
  • 48 dedicated irrigation ports
  • Capacity for 16 da Vinci robotic instruments per cycle
  • Cleans up to four lumen/standard instrument trays simultaneously, split between two independently operable basins
  • 30” pull-down sprayer faucet for external rinsing of instruments
  • 50-lb instrument weight capacity
  • 12.3-gallon capacity per basin (x2 basins)
  • 208-volt wall receptacle
  • 60″W x 27-9/16″D x 44-1/8″H (lid open)

Automatic Double-Basin Ultrasonic Cleaning System

This freestanding double-basin ultrasonic cleaning system is perfect for central sterile processing departments with large caseloads. Our large floor model ultrasonic cleaner provides great quality and power at an economical price. Its titanium rod transducer (TRT) technology provides a more thorough and rapid cleaning than standard bonded transducers.

It has a four-tray capacity, and can clean 48 lumen instruments simultaneously. It also can process lumen and nonlumen instruments at the same time, allowing you to wash even the largest loads quickly and easily. With twice the capacity of Model 1150 and the ability to operate each basin independently, this system offers greater efficiency and versatility for your department. It’s the original dual-basin ultrasonic surgical instrument cleaner.
