Intergard Knitted Ultrathin

Knitted Vascular Grafts

  • Collagen-coated polyester graft
  • Reverse lock-knit knitting technique
  • External velour surface and non-velour inner surface
  • Magnetic Resonance Safe
  • Radially Supported grafts have a polypropylene supportive coil
  • Water permeability : < 5ml/cm²/min
  • Available in radially supported configuration for kink and
    compression resistance, including axillo-bifemoral and fem-fem
    crossover procedures [2],[3]

Please refer to the Document Tab for legal mentions of products manufactured by INTERVASCULAR SAS.

Questions? Contact us.

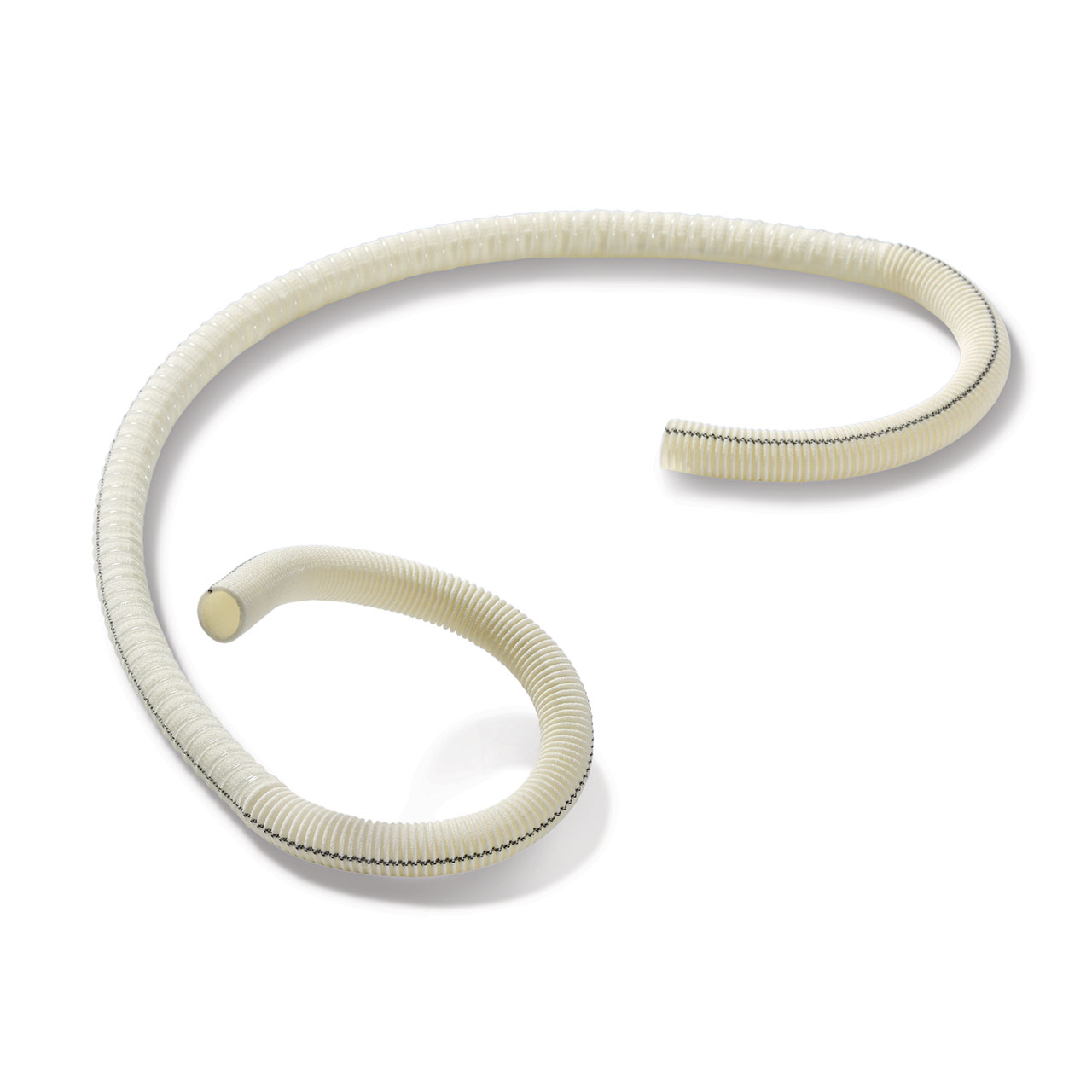

Intergard knitted ultrathin collagen-coated polyester graft
Intergard Knitted Ultrathin

Vascular and Cardiothoracic Surgery Solutions

Over 50 years of technical and clinical experience in vascular graft technology

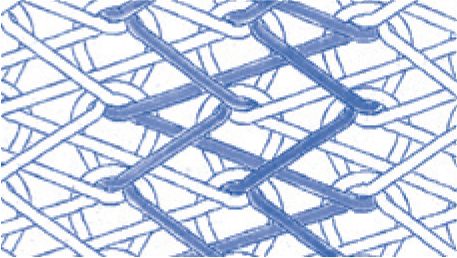

Reverse Lock-knit illustration

Reverse lock-knit

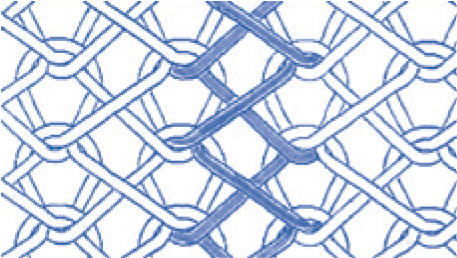

Tricot Knit illustration

Tricot knit



Related products

Intergard Knitted

Hemagard Knitted

Intergard Knitted Trifurcated and Quadrifurcated

Hemashield Gold Knitted Microvel Double Velour

Ultrathin Straight

 ultrathin straight.png
Diameter Length Reference
6 mm 20 cm IGKUT0006-20
7 mm 20 cm IGKUT0007-20
8 mm 20 cm IGKUT0008-20
6 mm 40 cm IGKUT0006-40
7 mm 40 cm IGKUT0007-40
8 mm 40 cm IGKUT0008-40
6 mm 70 cm IGKUT0006-70
7 mm 70 cm IGKUT0007-70
8 mm 70 cm IGKUT0008-70

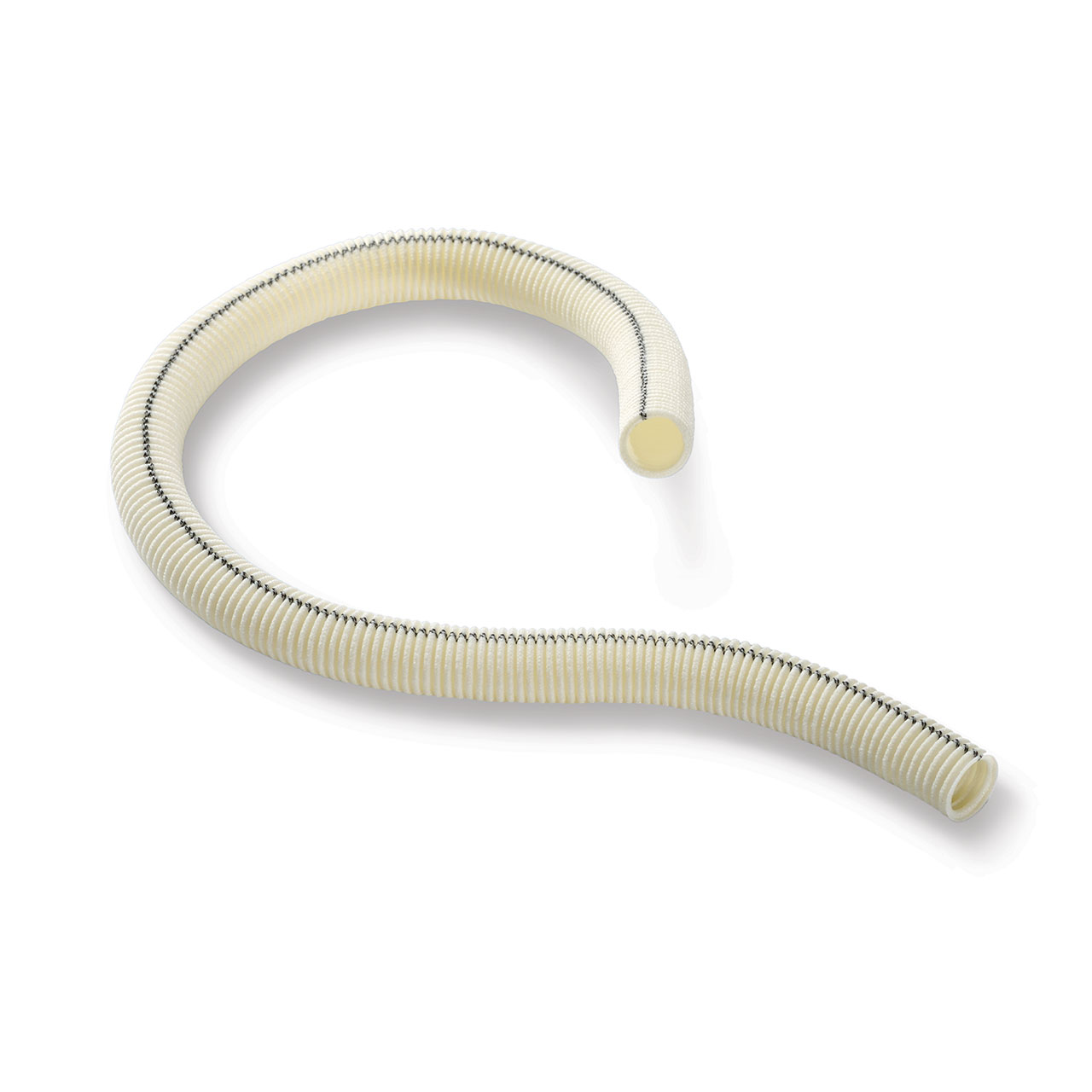

Ultrathin Radially Supported Straight

 ultrathin radially supported.png
Diameter Proximal/Distal Length Supported Length Total Length Reference
8 mm 40/15 cm 15 cm 70 cm IGKUT0008RS15
6 mm 35/15 cm 20 cm 70 cm IGKUT0006RS20
7 mm 35/15 cm 20 cm 70 cm IGKUT0007RS20
8 mm 35/15 cm 20 cm 70 cm IGKUT0008RS20
6 mm 25/15 cm 30 cm 70 cm IGKUT0006RS30
7 mm 25/15 cm 30 cm 70 cm IGKUT0007RS30
8 mm 25/15 cm 30 cm 70 cm IGKUT0008RS30

Improve your knowledge with our eLearning and training courses

At Getinge Educational Institute, we have dedicated material for topics related to Intensive Care, Cardiovascular Procedures, Operating Room and Sterile Processing. We can support you with information about current technologies and best practices to boost your performance and productivity.
For more information about our onsite events or remote trainings, you can also contact your local sales & service representative.

Getinge Educational Institute

  1. 1. data on file

  2. 2. El-Massry, S., et al., Femoropopliteal bypass with externally supported knitted
    Dacron grafts: a follow-up of 200 grafts for one to twelve years. J Vasc Surg, 1994.
    19(3): p. 487-94.

  3. 3. El-Massry, S., et al., Axillofemoral bypass with externally supported, knitted Dacron
    grafts: a follow-up through twelve years. J Vasc Surg, 1993. 17(1): p. 107-14; discussion
    114-5.
