Intergard Knitted

Knitted Vascular Grafts

  • Collagen-coated polyester graft
  • Reverse lock-knit knitting technique
  • External velour surface and non-velour inner surface
  • Magnetic Resonance Safe
  • Radially Supported grafts have a polypropylene supportive coil
  • Water permeability: < 5ml/cm²/min[1]

Please refer to the Document Tab for legal mentions of products manufactured by INTERVASCULAR SAS.

Vascular and Cardiothoracic Surgery Solutions

Over 50 years of technical and clinical experience in vascular graft technology

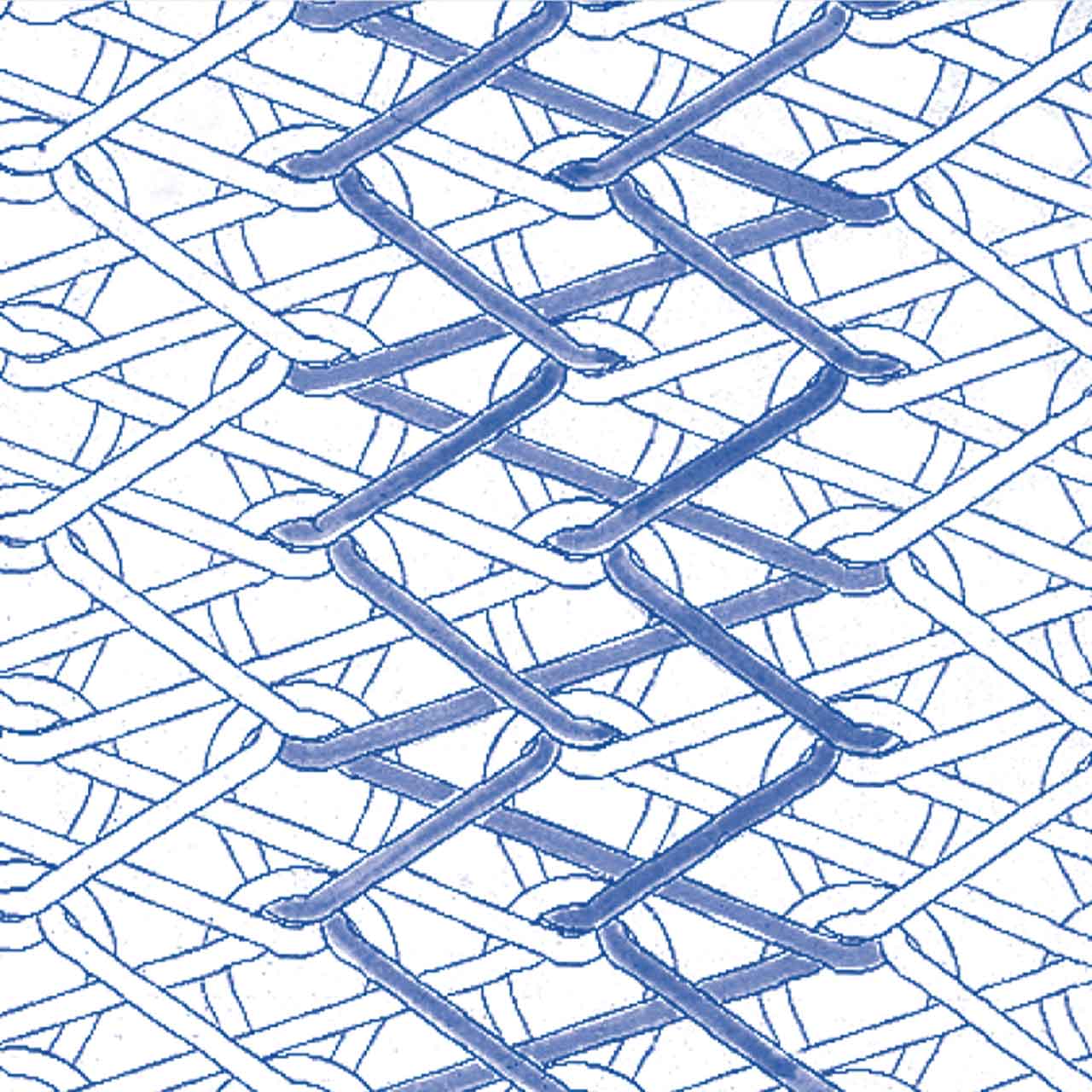

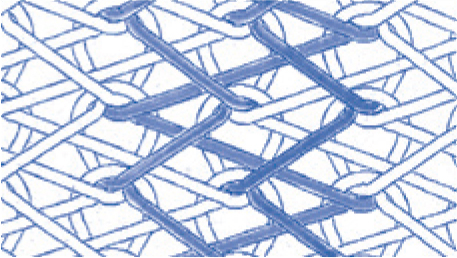

Reverse Lock-knit illustration

Reverse lock-knit

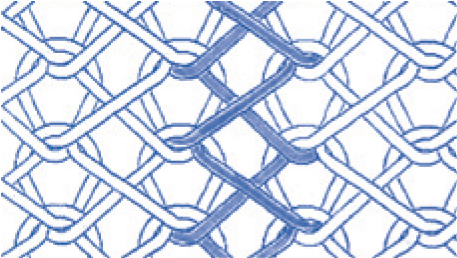

Tricot Knit illustration

Tricot knit



Related products

Straight

straight Intergard.png
Diameter Length Reference   Diameter Length Reference   Diameter Length Reference
6 mm 20 cm IGK0006-20   6 mm 40 cm IGK0006-40   6 mm 70 cm IGK0006-70
7 mm 20 cm IGK0007-20   7 mm 40 cm IGK0007-40   7 mm 70 cm IGK0007-70
8 mm 20 cm IGK0008-20   8 mm 40 cm IGK0008-40   8 mm 70 cm IGK0008-70
10 mm 20 cm IGK0010-20   10 mm 40 cm IGK0010-40   10 mm 70 cm IGK0010-70
12 mm 20 cm IGK0012-20   12 mm 40 cm IGK0012-40   8 mm 100 cm IGK0008-100
14 mm 20 cm IGK0014-20   14 mm 40 cm IGK0014-40
16 mm 20 cm IGK0016-20   16 mm 40 cm IGK0016-40
18 mm 20 cm IGK0018-20   18 mm 40 cm IGK0018-40
20 mm 20 cm IGK0020-20   20 mm 40 cm IGK0020-40
22 mm 20 cm IGK0022-20   22 mm 40 cm IGK0022-40
24 mm 20 cm IGK0024-20   24 mm 40 cm IGK0024-40



Bifurcated

Diameter Length Reference
12 mm x 6 mm 50 cm IGK1206
14 mm x 7 mm 50 cm IGK1407
16 mm x 8 mm 50 cm IGK1608
18 mm x 9 mm 50 cm IGK1809
20 mm x 10 mm 50 cm IGK2010
22 mm x 11 mm 50 cm IGK2211
24 mm x 12 mm 50 cm IGK2412



Straight Radially Supported

Radially supported.png
Diameter Proximal/Distal Length Supported Length Total Length Reference
8 mm 40 cm/15 cm 15 cm 70 cm IGK0008RS15
6 mm 35 cm/15 cm 20 cm 70 cm IGK0006RS20
8 mm 35 cm/15 cm 20 cm 70 cm IGK0008RS20
6 mm 25 cm/15 cm 30 cm 70 cm IGK0006RS30
8 mm 25 cm/15 cm 30 cm 70 cm IGK0008RS30
8 mm 20 cm/20 cm 45 cm 85 cm IGK0008RS45



Axillo-Bifemoral

Diameter Total Length body/branch Reference
10x10 mm 100 cm/60 cm IGKAX1010



Axillo-Bifemoral Radially Supported

Diameter Distal Length body/branch Supported Length body/branch Total Length body/branch Reference
8x8 mm 20 cm/35 cm 45 cm/20 cm 85 cm/55 cm IGKAX0808RS45/20
8x8 mm 20 cm/25 cm 45 cm/30 cm 85 cm/55 cm IGKAX0808RS45/30
8x8 mm 20 cm/25 cm 60 cm/30 cm 100 cm/55 cm IGKAX0808RS60/30
10x8x8 mm 25 cm/35 cm 35 cm/20 cm 85 cm/55 cm IGKAX100808RS35/20
8x6x6 mm 25 cm/35 cm 35 cm/20 cm 85 cm/55 cm IGKAX080606RS35/20



Improve your knowledge with our eLearning and training courses

At Getinge Educational Institute, we have dedicated material for topics related to Intensive Care, Cardiovascular Procedures, Operating Room and Sterile Processing. We can support you with information about current technologies and best practices to boost your performance and productivity.
For more information about our onsite events or remote trainings, you can also contact your local sales & service representative.

  1. 1. Data on file

  2. 2. Swartbol, P., et al., Dilatation of aorto-bifemoral knitted Dacron grafts after a mean implantation of 5 years. Int Angiol, 1996. 15(3): p. 236-9.
