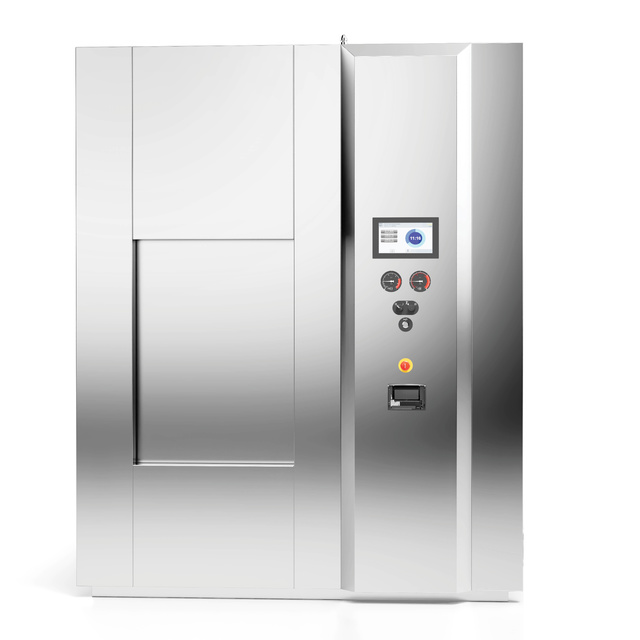

High performance sterilization for laboratories
- Robust construction to ensure high utilization and low total cost of ownership
- Pre-programmed and customizable sterilization cycles – process flexibility to meet any load type
- Process monitoring and batch reports to ensure reliable, repeatable results
- Intuitive HMI for efficient workflows, easy operations and reduced human error
- Cost-effective design – fulfill laboratory requirements within your budget
Upgrade your lab with
best-in-class autoclaving
and intuitive control.
With the Lancer LSS you get reliable, repeatable results and a cost-effective and efficient workflow.
The sterilizer’s connected software platform also supports robust reporting, data integrity and predictive maintenance, while the pre-programmed sterilization cycles and customization options ensure a flexible process that meets the needs of a wide range of load types.
Related products
Reliable, repeatable results
- Ensure contamination-free labware and accurate experiments through high-performance sterilization
- Designed to provide sterilization for labware, process materials, and products used in research facilities
- Continuous monitoring and validation ensure sterile and repeatable results that are fully documented
- Adjust cycle parameters to meet your needs
- A variety of sterilization cycle temperature ranges are available
Intuitive control system
- The intuitive and easy-to-use interface delivers advanced connectivity, regulatory compliance, and data integrity
- Support efficient workflows with comprehensive user management
- Enable fast and easy operations such as process start, cycle customization, and alarms through a future-proofed interface
- Ergonomic safety enhances efficiency and helps minimize errors
- Can connect to external systems via OPC UA standardized protocols
Support flexible process
- Enable a wide range of loads – glassware, hoses, and liquids in open or closed containers
- A range of pre-programmed cycles for sterilizing the most common loads
- Ability to customize your own cycles to meet your unique needs
For the LSS the panel printer will be positioned next to the HMI display.
For the LSS 700 the panel printer will be positioned below the emergency button
For the LSS the chamber height is 700 mm
For the LSS 700 the chamber height is 920 mm
For the LSS the door will slide vertically
For the LSS 700 the door will slide horizontally
If facility steam is unavailable.
For the LSS the generator can be placed at the bottom, underneath the chamber.
For the LSS 700 the generator can be placed at the top, above the chamber.
Accessories
Interior rack
Stainless steel rack supports with two extendable, open-wire stainless steel shelves.
Supplemental shelf
This additional extendable shelf can be ordered separately.
Transfer trolley
A fixed-height trolley for use with the load car. The trolley releases the load car when it is locked to the interior chamber rail. It’s made of reinforced stainless steel.
Height-adjustable trolley
An adjustable version of the transfer trolley for better ergonomics.
Overview of chamber sizes
| Lancer LSS Base models | |||
| Chamber Volume | Widht | Height | Depth |
| 340 L (12 cu ft) | 660 mm (26'') | 700 mm (27 1/2") | 700 mm (27 1/2") |
| 480 L (17 cu ft) | 660 mm (26'') | 700 mm (27 1/2") | 1000 mm (30 3/8'') |
| 620 L (22 cu ft) | 660 mm (26'') | 700 mm (27 1/2") | 1300 mm (51 1/4'') |
| Lancer LSS 700 High Capacity models | |||
| 618 L (22 cu ft) | 660 mm (26'') | 920 mm (36'') | 1000 mm (30'') |
| 835 L (29 cu ft) | 660 mm (26'') | 920 mm (36'') | 1350 mm (53'') |
| 952 L (34 cu ft) | 660 mm (26'') | 920 mm (36'') | 1540 mm (61'') |
Maximum load flexibility
to process bulkie lab equipment
while supporting safe handling
