Dry suction regulation and calibrated water seal
The Oasis dry suction regulator design is available in a dedicated infant/pediatric model. This model is DEHP-free, not made with natural rubber latex, and is prepackaged with multiple connectors to provide convenient and secure connection to smaller size thoracic catheters.
- Oasis features fingertip suction adjustment from -10 to -40 cmH20 (pre-set at -20 cmH20)
- Reduced capacity collection chamber design
- Pediatric-friendly graphics and visible fluid graduations
- Smaller drainage tubing* and choice of connectors
*Compared to Atrium Oasis adult drainage tubing
- Water seal technology with air leak monitor for patient air leak trending
- Internal knock-over nozzles to reduce inter-chamber fluid spills
- Visible suction indicator
- In-line connector with Luer lock fluid sampling port
- MR Conditional (See Instructions For Use)
- Large handle designed for grasping and flexi-hangers allow the drain to be hung bedside from a single point
- High negative and positive pressure relief valves for patient protection
- Visible fluid graduations for accurate drainage assessment
- Removable slide clamp
- Not made with natural rubber latex

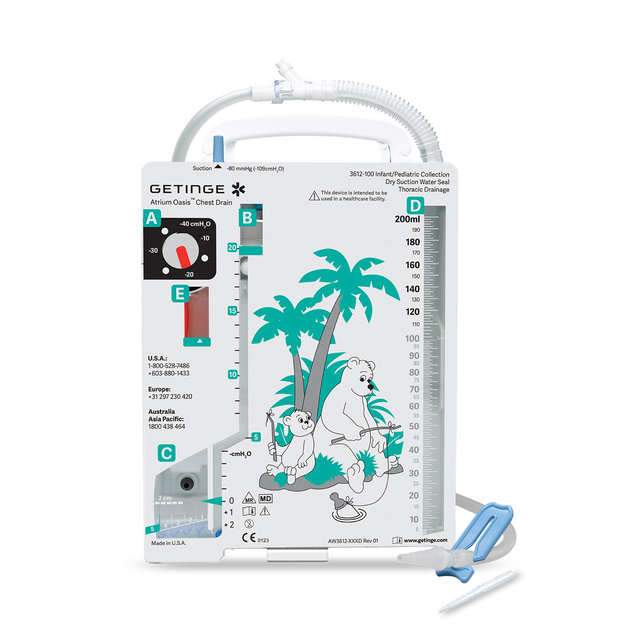

Atrium Oasis Pediatric: Single collection 3612-100
Atrium Oasis Pediatric: Single collection 3612-100
With Luer lock fluid sampling port
Adjustment from -10 to -40 cmH₂O (pre-set at -20 cmH₂O)
To reduce inter-chamber fluid spills
With air leak monitor for patient air leak trending
Designed for grasping and flexi-hangers allow the drain to be hung bedside
For patient safety
For accurate drainage assessment
Ordering Information
| Description | Case QTY | Part Number |
| Infant/Pediatric, 1/4 inch Patient Tubing, Pediatric Connectors, In-Line Connector and Clamp | 6 | 3612-100 |
Instructions For Use (IFU)
