Intergard Silver

Antimicrobial Grafts

  • Collagen-coated vascular graft
  • Graft loaded with an antimicrobial agent: silver acetate
  • Reverse lock-knit knitting technique (only for Knitted graft)
  • External velour surface and non-velour inner surface
  • Magnetic Resonance Safe
  • Radially Supported grafts have a polypropylene supportive coil
  • Water permeability: < 5ml/cm²/min[1]
  • Available in Woven, Knitted and Knitted Ultrathin configuration

Please refer to the Document Tab for legal mentions of products manufactured by INTERVASCULAR SAS.



Questions? Contact us.
Getinges Intergard Silver is loaded with an antimicrobial agent, silver acetate.
Getinges antimicrobrial grafts

Vascular and Cardiothoracic Surgery Solutions

Over 50 years of technical and clinical experience in vascular graft technology

Related products

Intergard Synergy

Intergard Silver Knitted

 straight-intergard (1).png

Straight

Diameter  Length Reference    Diameter  Length Reference    Diameter Length Reference
6 mm 20 cm IGK0006-20S   6 mm 40 cm IGK0006-40S   6 mm 70 cm IGK0006-70S
8 mm 20 cm IGK0008-20S   7 mm 40 cm IGK0007-40S   7 mm 70 cm IGK0007-70S
12 mm 20 cm IGK0012-20S   8 mm 40 cm IGK0008-40S   8 mm 70 cm IGK0008-70S
14 mm 20 cm IGK0014-20S   10 mm 40 cm IGK0010-40S   10 mm 70 cm IGK0010-70S
16 mm 20 cm IGK0016-20S   12 mm 40 cm IGK0012-40S
18 mm 20 cm IGK0018-20S   14 mm 40 cm IGK0014-40S
20 mm 20 cm IGK0020-20S   16 mm 40 cm IGK0016-40S
22 mm 20 cm IGK0022-20S   18 mm 40 cm IGK0018-40S
24 mm 20 cm IGK0024-20S   20 mm 40 cm IGK0020-40S
        22 mm 40 cm IGK0022-40S
        24 mm 40 cm *IGK0024-40S



Intergard Silver Knitted

 bifurcated (1).png

Bifurcated

Diameter  Length Reference
12 mm x 6 mm 50 cm IGK1206S
14 mm x 7 mm 50 cm IGK1407S
16 mm x 8 mm 50 cm IGK1608S
18 mm x 9 mm 50 cm IGK1809S
20 mm x 10 mm 50 cm IGK2010S
22 mm x 11 mm 50 cm IGK2211S
24 mm x 12 mm 50 cm IGK2412S



Intergard Silver Knitted

 radially-supported (1).png

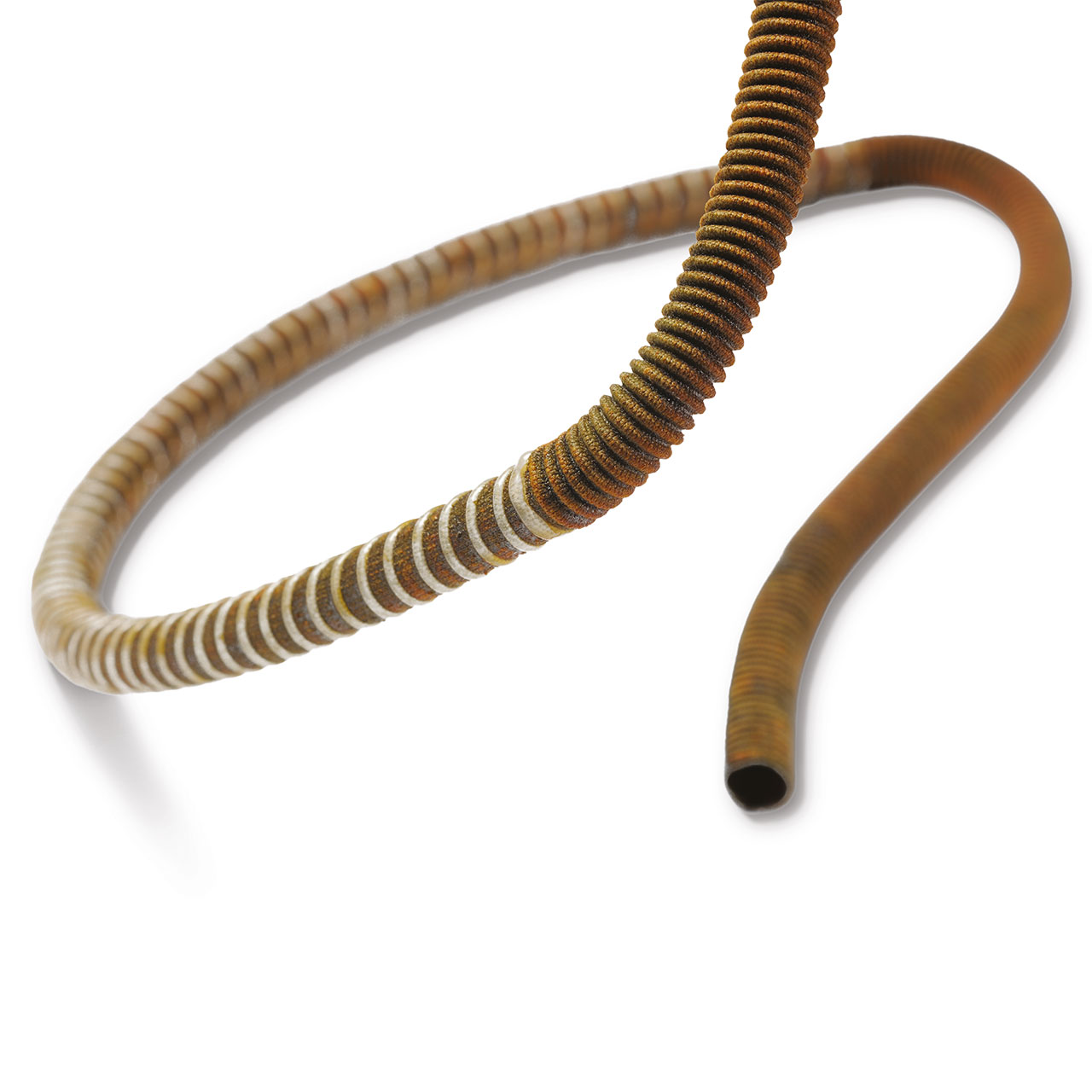

Radially supported

Diameter   Proximal Length  Supported Length Distal Length  Total Length Reference
6 mm 35 cm 20 cm 15 cm 70 cm IGK0006RS20S
6 mm 25 cm 30 cm 15 cm 70 cm IGK0006RS30S
6 mm 20 cm 45 cm 20 cm 85 cm IGK0006RS45S
8 mm 12.5 cm 15 cm 12.5 cm 40 cm IGK0008RS15-40S
8 mm 40 cm 15 cm 15 cm 70 cm IGK0008RS15S
8 mm 35 cm 20 cm 15 cm 70 cm IGK0008RS20S
8 mm 25 cm 30 cm 15 cm 70 cm IGK0008RS30S
8 mm 20 cm 45 cm 20 cm 85 cm IGK0008RS45S
8 mm 20 cm 60 cm 20 cm 100 cm IGK0008RS60S
10 mm 15 cm 10 cm 15 cm 40 cm IGK0010RS10-40S



Intergard Silver Knitted

 axillo-bifemoral (1).png

Axillo-bifemoral

Diameter Distal Length  (body/branch) Total Length (body/branch) Reference
8 mm x 8 mm  ------------------- 100 cm x 60 cm IGKAX0808S
8 mm x 8 mm 45 cm x 20 cm 85 cm x 55 cm IGKAX0808RS45/20S
8 mm x 8 mm 45 cm x 30 cm 85 cm x 55 cm IGKAX0808RS45/30S
8 mm x 8 mm 60 cm x 30 cm 100 cm x 55 cm IGKAX0808RS60/30S



Intergard Silver Knitted


Ultrathin radially supported

Diameter   Proximal Length Supported Length Distal Length Total Length Reference
6 mm 35 cm 20 cm 15 cm 70cm IGKUT0006RS20S
6 mm 25 cm 30 cm 15 cm 70cm IGKUT0006RS30S
7 mm 35 cm 20 cm 15 cm 70cm IGKUT0007RS20S
7 mm 25 cm 30 cm 15 cm 70cm IGKUT0007RS30S
8 mm 15 cm 10 cm 15 cm 40cm IGKUT0008RS10-40S
8 mm 12.5 cm 15 cm 12.5 cm 40 cm IGKUT0008RS15-40S
8 mm 40 cm 15 cm 15 cm 70cm IGKUT0008RS15S
8 mm 35 cm 20 cm 15 cm 70cm IGKUT0008RS20S
8 mm 25 cm 30 cm 15 cm 70cm IGKUT0008RS30S



Intergard Silver Knitted


Ultrathin

Diameter  Length Reference
6 mm 40 cm IGKUT0006-40S
7 mm 40 cm IGKUT0007-40S
8 mm 40 cm IGKUT0008-40S
6 mm 70 cm IGKUT0006-70S
7 mm 70 cm IGKUT0007-70S
8 mm 70 cm IGKUT0008-70S



Intergard Silver Knitted

 straight-intergard (1).png

Straight

15 cm length:     30 cm length:
Diameter Reference   Diameter Reference
12 mm IGW0012-15S   8 mm IGW0008-30S
14 mm IGW0014-15S   10 mm IGW0010-30S
16 mm IGW0016-15S   12 mm IGW0012-30S
18 mm IGW0018-15S   14 mm IGW0014-30S
20 mm IGW0020-15S   16 mm IGW0016-30S
22 mm IGW0022-15S   18 mm IGW0018-30S
24 mm IGW0024-15S   20 mm IGW0020-30S
26 mm IGW0026-15S   22 mm IGW0022-30S
28 mm IGW0028-15S   24 mm IGW0024-30S
30 mm IGW0030-15S   26 mm IGW0026-30S
32 mm IGW0032-15S   28 mm IGW0028-30S
      30 mm IGW0030-30S
      32 mm IGW0032-30S



Intergard Silver Knitted

 bifurcated (1).png

Bifurcated

Diameter Reference
14 mm x 7 mm IGW1407S
16 mm x 8 mm IGW1608S
18 mm x 9 mm IGW1809S
20 mm x 10 mm IGW2010S
22 mm x 11 mm IGW2211S
24 mm x 12 mm IGW2412S
