Getinge Pack Rotary Sealer

User-friendly rotary sealer supporting high-volume sealing operations

Getinge Pack Rotary Sealer can be used with sterilization packaging made of medical paper/film and Tyvek® material/film in compliance with EN 868-5 and ISO 11607-1.

Packaging small and large instruments can be time consuming and sometimes troublesome. We have designed a range of sealers that maximize both productivity and effectiveness, improving throughput at your medical facility.

Getinge Pack Rotary Sealer offers:

Safe and secure seal

  • Easy sealing
  • Use of transfer rolls will increase working speed as holding of pouches is not needed
  • Safe and secure seal
  • Sealed in an automated process ensuring repeatable and effective sealing results
  • The pouch guide allows the user to lean the pouch for a straight and perfect alignment for entry

Technical data

Sealing Parameters Getinge Pack Rotary Sealer 220V Getinge Pack Rotary Sealer 110V
Temperature range (adjustable) 50°C – 250°C (122°F– 482°F)
Speed range (adjustable) 10 m/min (33 ft/min)
Pressure range adjustable (mechanically) 40–100 N
Seal width 14
Seal length Unlimited
Features
Automatic seal start Yes
Control Microprocessor
Seal type Multiline seal (4 lines)
Heat up time to 180 °C (356 °F) 180 s
Material Sanded stainless steel
Display LCD Screen
Power and technical information
Electricity 200–240 V, 50–60 Hz 110–120 V, 50–60 Hz
Power 650 W
Weight 10 kg (22 lb)
Dimensions (W x D x H) 425 x 225 x 155 mm (16 x 9 x 6 in)

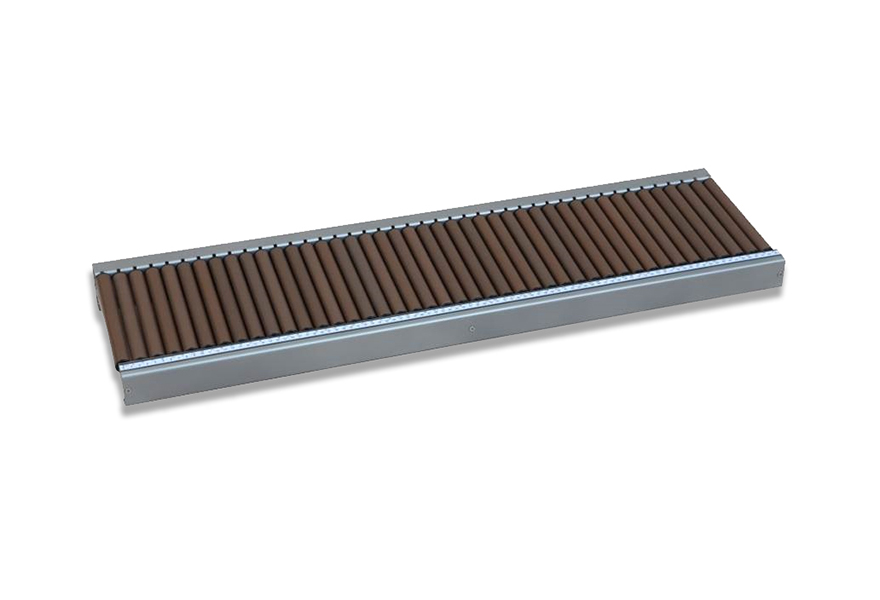

support table

Transfer Roller

The transfer roller is a useful accessory for Getinge Pack Rotary Sealer, providing safe and easy handling with heavy packs and during high-volume packaging operations.

cutting device

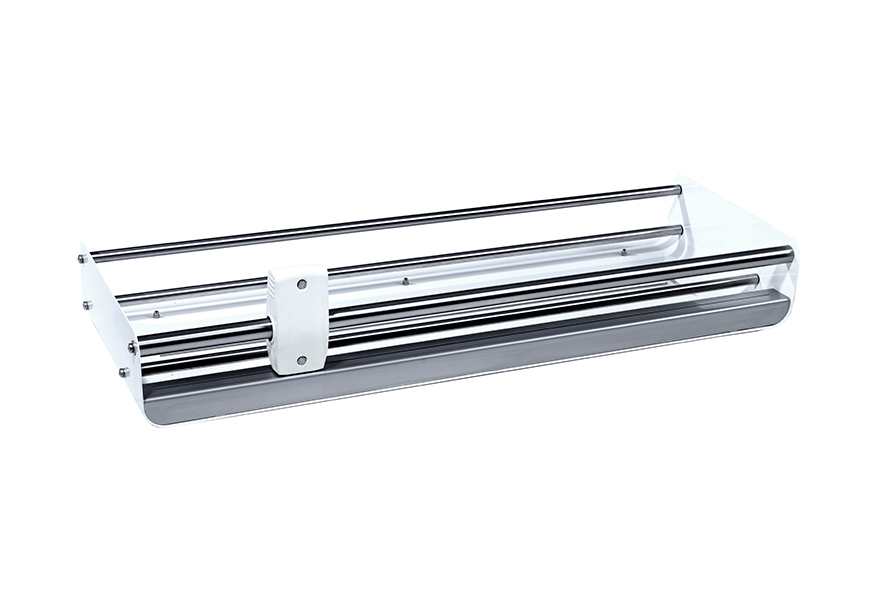

Cutting Device

The roll cutting device comes in three different sizes, for wall or tabletop use. The sliding-action knife is completely built into the housing for safe handling.
