Getinge Proseal

A range of rotary sealers supporting high-volume sealing operations with validatable sealing processes.

Getinge's rotary sealers provide validated sealing of sterile bags and pouches

To make it easier to seal a perfect seam Getinge has developed a slow-start function that minimizes the number of wrinkled seams. Use the slow-start function on the touchscreen and the belt slows down, making it easier to insert the pouch. Furthermore, the sealers are tilted for a better ergonomic position and have easy to read signals from LED-light and panel.

The Getinge ProSeal rotary model is available in two versions: Plus and Premium, both validated according to DIN EN ISO 11607-2

Intuitive user interface

The intuitive, user-friendly design of the 4.3" Centric interface has been developed to easily change settings.

Integrated printer

Getinge Proseal Premium models are equipped with a built-in module to print traceability information on pouches. Up to nine different parameters can be printed.

Slow-start function

A unique slow-start function automatically decreases the sealing speed. This helps to feed the heavy and bulky pouches to optimize seal quality.

T-DOC

Proseal Sealers can connect with T-DOC Getinge’s traceability system. All critical parameters can be logged and monitored for traceability and documentation purposes.

All logged information can be accessed and transferred via USB or Ethernet connection.

Technical data

Sealing parameters:  Getinge Proseal Plus Getinge Proseal Premium
Temperature range (adjustable) 100 °C–200 °C (212 °F–392 °F)
Speed range (adjustable) 120–170 mm/s (4.7–6.7 in/s)
Pressure range adjustable (mechanically) 40–100 N
Seal width 15 mm (0.59 in)
Seal length Unlimited
 Power and technical information:
Electricity 220–240 V, 50–60 Hz
(110–127 V, 50–60 Hz)
Power 550 W
Weight   9.8 kg (21.6 lbs) 10.1 kg (22.3 lbs)
Dimensions (W x D x H) 580 x 255 x 133 mm
(23 x 10 x 5.25 in)
580 x 255 x 155 mm
(23 x 10 x 5.25 in)
Features:
Slow-start function Yes
Standby time (adjustable) 1-60 min
Heat up time to 180 °C (356 °F) 180 sec
Automatic seal start Yes
Touchscreen Capacitive scree, colored
Control Microprocessor
Connectivity USB, Ethernet
Printer Yes (Integrated)
getinge support table proseal premium

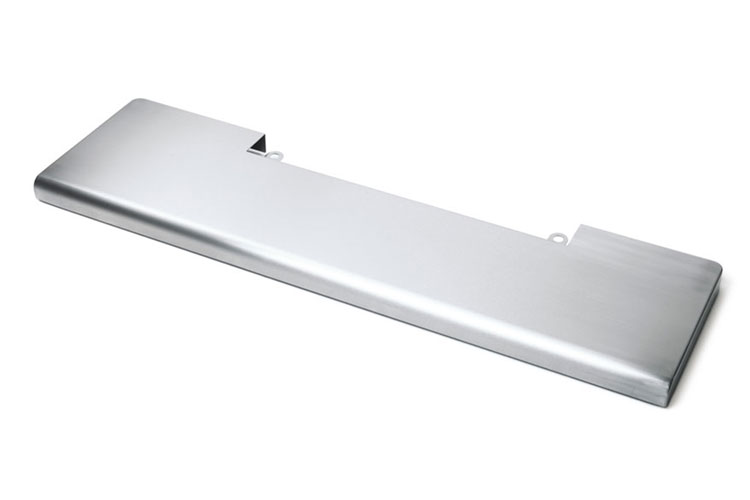

Support table

The support table enables safe handling, even with heavy packs and high-volume packaging operations. It is especially designed for the Proseal Premium Sealer.

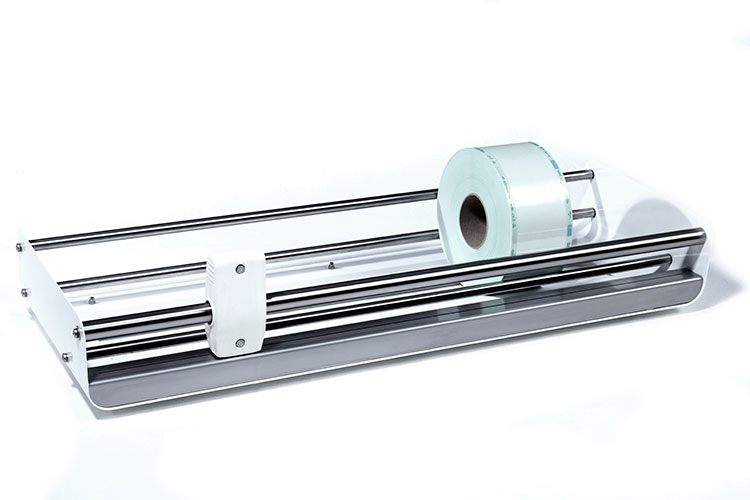

Cutting device

Cutting device

The roll cutting device comes in three different sizes, for wall or tabletop use. The sliding-action knife is completely built into the housing for safe handling.
