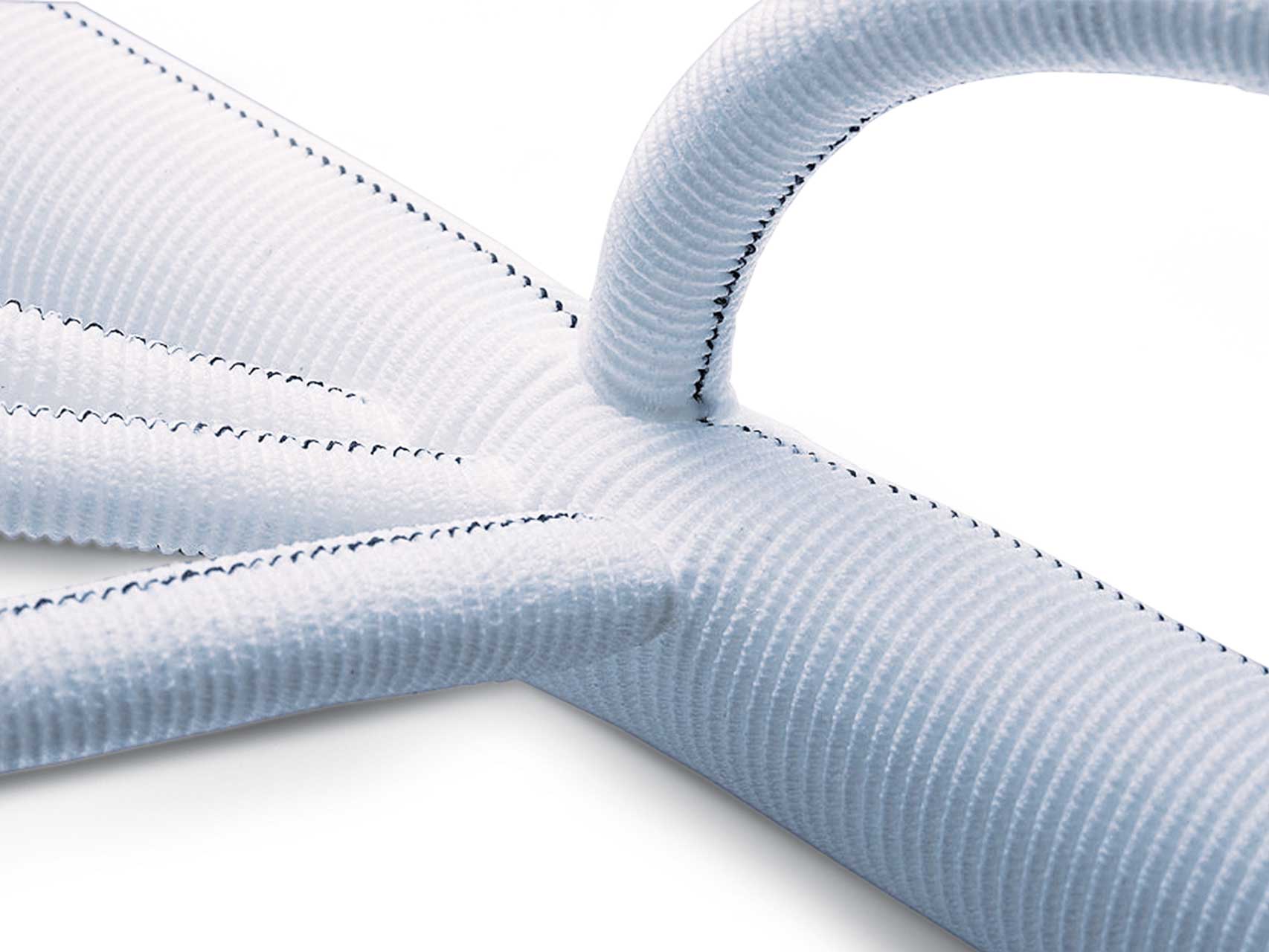

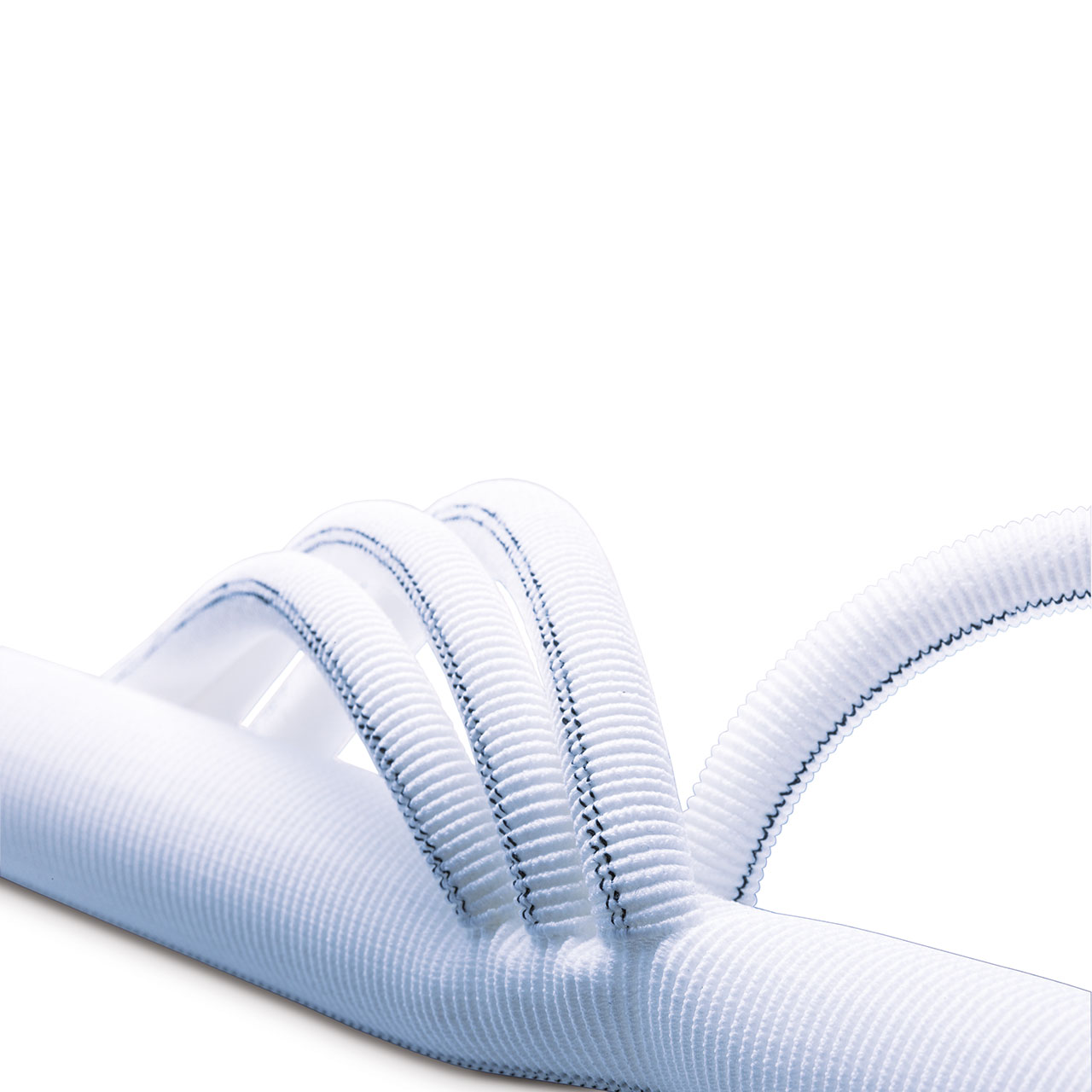

Hemashield Platinum Woven Aortic Branch
Vascular and Cardiothoracic Surgery Solutions
Over 50 years of technical and clinical experience in vascular graft technology
Related products
Single Branch Graft |
 |
| Thoracic Size | Branch Size | Reference |
| 20 mm x 50 cm | 10 mm | M00202175820P0 |
| 22 mm x 50 cm | 10 mm | M00202175822P0 |
| 24 mm x 50 cm | 10 mm | M00202175824P0 |
| 26 mm x 50 cm | 10 mm | M00202175826P0 |
| 28 mm x 50 cm | 10 mm | M00202175828P0 |
| 30 mm x 50 cm | 10 mm | M00202175830P0 |
| 32 mm x 50 cm | 10 mm | M00202175832P0 |
| 34 mm x 50 cm | 10 mm | M00202175834P0 |
50 cm usable length
Angled 4 Branch Graft |
 |
| Thoracic Size | Branch Size | Reference |
| 24 mm x 50 cm | 12 mm / 10 mm / 8 mm/ 8 mm | M00202175724AP0 |
| 26 mm x 50 cm | 12 mm / 10 mm / 8 mm / 8 mm | M00202175726AP0 |
| 28 mm x 50 cm | 12 mm / 10 mm / 8 mm / 8 mm | M00202175728AP0 |
| 30 mm x 50 cm | 12 mm / 10 mm / 8 mm / 8 mm | M00202175730AP0 |
50 cm usable length
3 Branch Graft |
 |
| Thoracic Size | Branch Size | Reference |
| 12 mm x 30 cm | 8 mm / 8 mm | M00202175912P0 |
| 14 mm x 30 cm | 10 mm / 10 mm | M00202175914P0 |
30 cm usable length
4 Branch Graft
| Thoracic Size | Branch Size | Reference |
| 20 mm x 50 cm | 10 mm / 10 mm / 8 mm / 8 mm | M00202175920P0 |
| 22 mm x 50 cm | 10 mm / 10 mm / 8 mm / 8 mm | M00202175922P0 |
| 24 mm x 50 cm | 10 mm / 10 mm / 8 mm / 8 mm | M00202175924P0 |
| 26 mm x 50 cm | 10 mm / 10 mm / 8 mm / 8 mm | M00202175926P0 |
| 28 mm x 50 cm | 10 mm / 10 mm / 8 mm / 8 mm | M00202175928P0 |
| 30 mm x 50 cm | 10 mm / 10 mm / 8 mm / 8 mm | M00202175930P0 |
| 32 mm x 50 cm | 12 mm / 10 mm / 10 mm / 10 mm | M00202175732P0 |
| 34 mm x 50 cm | 12 mm / 10 mm / 10 mm / 10 mm | M00202175734P0 |
50 cm usable length
Thoraco Abdominal Graft
| Thoracic Size | Branch Size | Reference |
| 20 mm x 47 cm | 10 mm / 10 mm / 8 mm / 8 mm | M00202175420T0 |
| 22mm x 47 cm | 10 mm / 10 mm / 8 mm / 8 mm | M00202175422T0 |
| 24 mm x 47 cm | 10 mm / 10 mm / 8 mm / 8 mm | M00202175424T0 |
| 26 mm x 47 cm | 10 mm / 10 mm / 8 mm / 8 mm | M00202175426T0 |
| 28 mm x 47 cm | 10 mm / 10 mm / 8 mm / 8 mm | M00202175428T0 |
| 30 mm x 47 cm | 10 mm / 10 mm / 8 mm / 8 mm | M00202175430T0 |
| 32 mm x 47 cm | 10 mm / 10 mm / 8 mm / 8 mm | M00202175432T0 |
47 cm usable length
Legal
-
Intergard, Hemagard, Intergard Silver, Intergard Synergy, Intergard Heparin and Hemashield.
