Intergard Woven

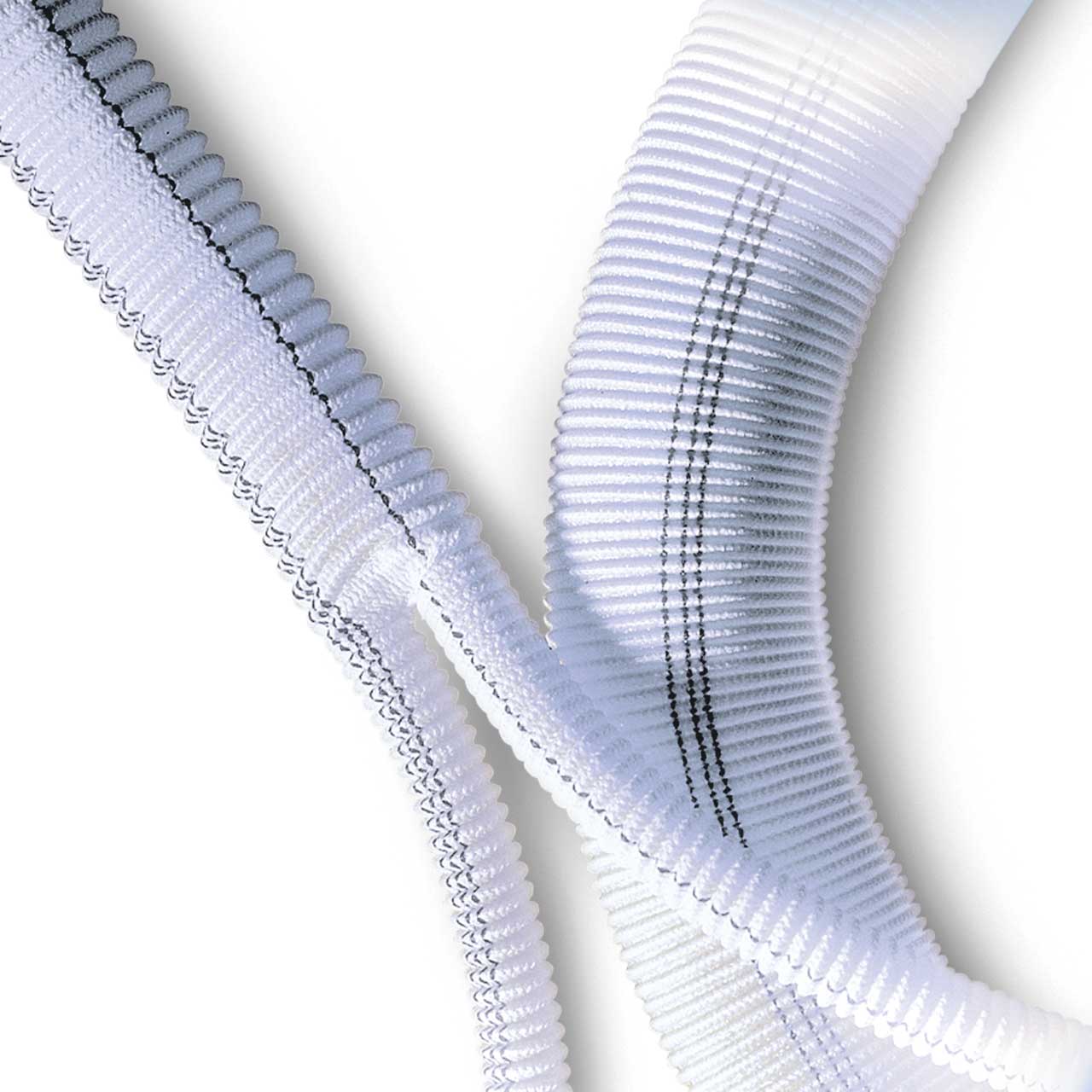

Woven Vascular Grafts

  • Collagen-coated polyester graft
  • External velour surface and non-velour inner surface
  • Magnetic Resonance Safe
  • Water permeability : < 5ml/cm²/min[1]

Please refer to the Document Tab for legal mentions of products manufactured by INTERVASCULAR SAS.

Vascular and Cardiothoracic Surgery Solutions

Over 50 years of technical and clinical experience in vascular graft technology

Related products

Straight

straight Intergard.png
Diameter Length Reference    Diameter Length Reference    Diameter Length Reference
12 mm  15 cm  IGW0012-15   6 mm  30 cm  IGW0006-30   22 mm 60 cm  IGW0022-60
14 mm  15 cm  IGW0014-15   8 mm  30 cm  IGW0008-30   24 mm 60 cm  IGW0024-60
16 mm  15 cm  IGW0016-15   10 mm  30 cm  IGW0010-30   26 mm  60 cm  IGW0026-60
18 mm 15 cm  IGW0018-15   12 mm  30 cm  IGW0012-30   28 mm 60 cm  IGW0028-60
20 mm 15 cm  IGW0020-15   14 mm 30 cm  IGW0014-30   30 mm  60 cm  IGW0030-60
22 mm 15 cm  IGW0022-15   16 mm  30 cm  IGW0016-30   32 mm 60 cm  IGW0032-60
24 mm 15 cm  IGW0024-15   18 mm  30 cm  IGW0018-30
26 mm  15 cm  IGW0026-15   20 mm  30 cm  IGW0020-30
28 mm 15 cm  IGW0028-15   22 mm  30 cm  IGW0022-30
30 mm 15 cm  IGW0030-15   24 mm  30 cm  IGW0024-30
32 mm  15 cm  IGW0032-15   26 mm  30 cm  IGW0026-30
34 mm 15 cm  IGW0034-15   28 mm  30 cm  IGW0028-30
36 mm 15 cm  IGW0036-15   30 mm  30 cm  IGW0030-30
        32 mm 30 cm  IGW0032-30
        34 mm  30 cm  IGW0034-30
        36 mm  30 cm  IGW0036-30
        38 mm  30 cm  IGW0038-30



Bifurcated

Diameter Length Reference
12 mm x 6 mm  50 cm IGW1206
14 mm x 7 mm  50 cm IGW1407
16 mm x 8 mm 50 cm IGW1608
18 mm x 9 mm 50 cm IGW1809
20 mm x 10 mm 50 cm IGW2010
22 mm x 11 mm  50 cm IGW2211
24 mm x 12 mm  50 cm IGW2412

Improve your knowledge with our eLearning and training courses

At Getinge Educational Institute, we have dedicated material for topics related to Intensive Care, Cardiovascular Procedures, Operating Room and Sterile Processing. We can support you with information about current technologies and best practices to boost your performance and productivity.
For more information about our onsite events or remote trainings, you can also contact your local sales & service representative.

  1. 1. Data on file
