DPTE® Beta Containers

Safely transfer material from one containment area to another

Stainless steel or polyethylene DPTE® Beta Containers allow for safe transfer into and out of a barrier system in various life science applications. The Getinge DPTE® rapid transfer system is based on the interaction of an Alpha part with a Beta part – each fitted with a door, a lock, and a sealing function.

Reusable canisters for safe bi-directional transfer

  • Modular design
  • Optional racks
  • Reliable and safe transfer of heavy, complex parts
  • Validated solution
  • A large variety of applications


Only original DPTE® alpha and beta parts together form a validated aseptic transfer solution

Transfer of sterile or toxic products in and out of barrier systems is one of the most critical aspects of pharmaceutical production and is necessary to protect both operator and product. Canisters are used to bring in, remove, or transfer material from one environment to another, without breaking containment.

Getinge produces a range of:

  • standard polyethylene containers,
  • standard to customized stainless steel containers,
  • standard to customized stainless steel racks,
  • container accessories.

Watch the video to learn more about the DPTE® System's principle.

Related products

DPTE® Alpha Rapid Transfer Port for bidirectional transfer in aseptic or toxic working areas.

Compatibility

With DPTE® Alpha Rapid Transfer Port (RTP)

Minimize the risk of microbial contamination associated with operator contact during the manufacturing process with DPTE® Beta Containers.

These canisters are compatible with Getinge DPTE® Alpha flange of the same diameter.

The Alpha and Beta parts fit together with a leak-tight locking method, meaning the integrity of the transfer operation cannot be broken.

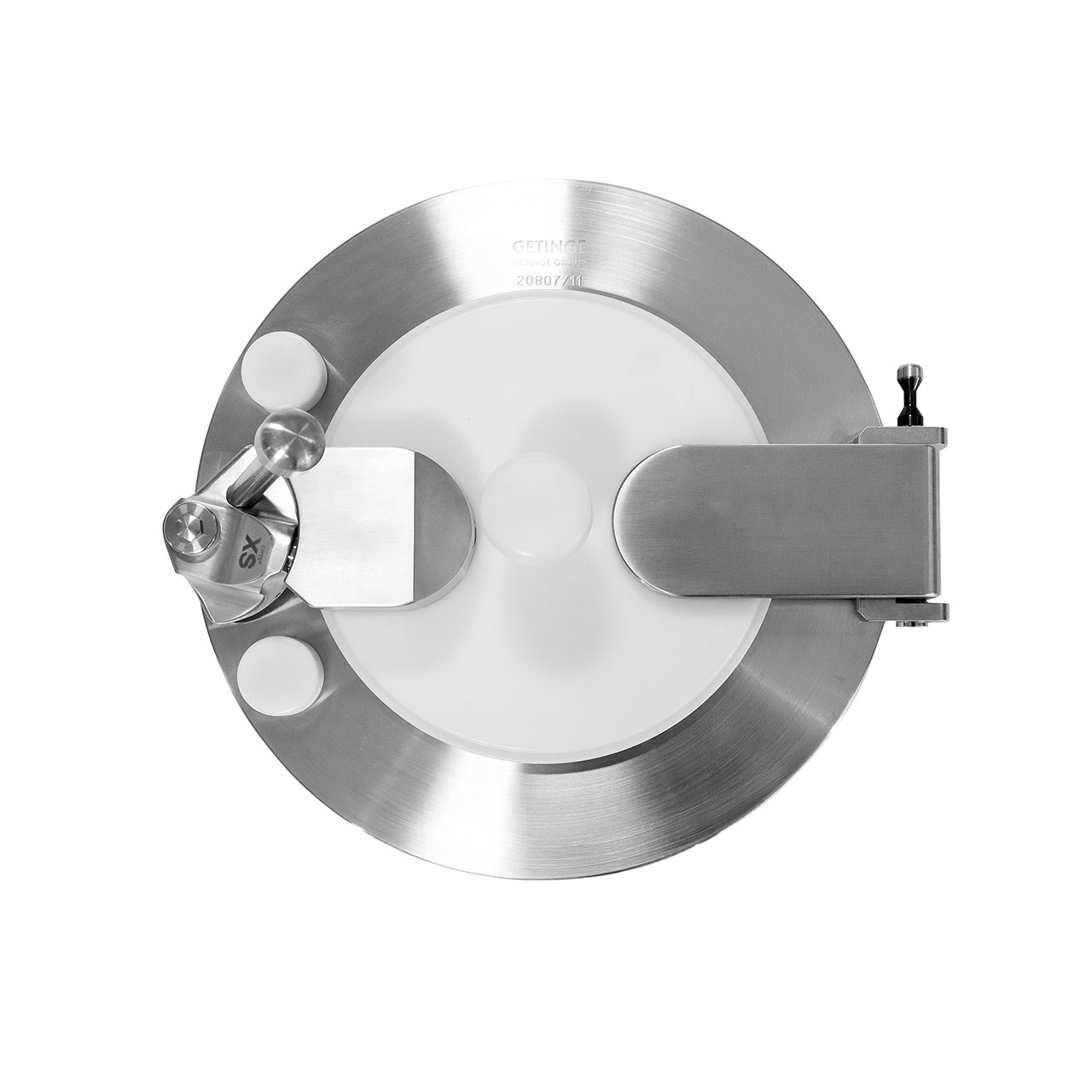

Stainless steel DPTE® Beta Container with hydrophobic filter for steam sterilization

Sterilization options

Autoclavable, gamma, or H202 sterilizable containers

The reusable PE/HDPE containers and the material within the container can be sterilized using gamma irradiation or bio-decontaminated with H2O2 to ensure a safe material transfer process.

The reusable stainless steel containers are engineered for steam sterilization processes. An integrated hydrophobic sterile filter allows for steam to enter the container, maintaining sterile conditions after the sterilization process. Stainless steel containers may also be biodecontaminated with H2O2, if necessary.



An operator using the DPTE® Transfer Trolley to lift a 350 stainless steel DPTE® Beta Container

Accessories

Standard and customized accessories

Optimize your sterile transfer and ensure safe operations with Getinge's standard and customized accessories:

  • Transport and docking trolley for DPTE® Beta Containers
  • Stainless steel racks for transferring filling pump needles, plugs, Petri dishes, etc. inside the container
  • Protective rings for container seals to protect seals during sterilization
  • Lifting pressure cover
  • Door-opening key
  • Polyethylene cover accessory

Available sizes

  Diameter
  105 mm 190 mm 270 mm 350 mm 460 mm

DPTE® Stainless steel Container

DPTE® PE Container

 ●

Stainless Steel DPTE® Beta Container Models



Diameter

Length

   Ø 300 mm 400 mm 500 mm 600 mm 700 mm

Standard containers*

Autoclavable

190
270    ●
350

Semi-standard containers

Autoclavable and H202 sterilizable

190
270
350

Configurable containers

Using pre-designed parts

190
270  ●  ●  ●  ●  ●
350  ●  ●  ●  ●  ●

Customized containers and inserts, dimensions, parts, and finishing to customers' requirements - contact our Sales Team

* Ø 105 and Ø 460 are part of our range, please contact our Sales Team

Load, sterilize and unload safely your equipment and components

The optional racks provide you with a solution for efficient and ergonomic loading and unloading of components, tools, etc. Items are held securely in place inside the container, enabling complete access by steam during autoclaving, leaving no hidden zones so that steam and air can circulate efficiently.

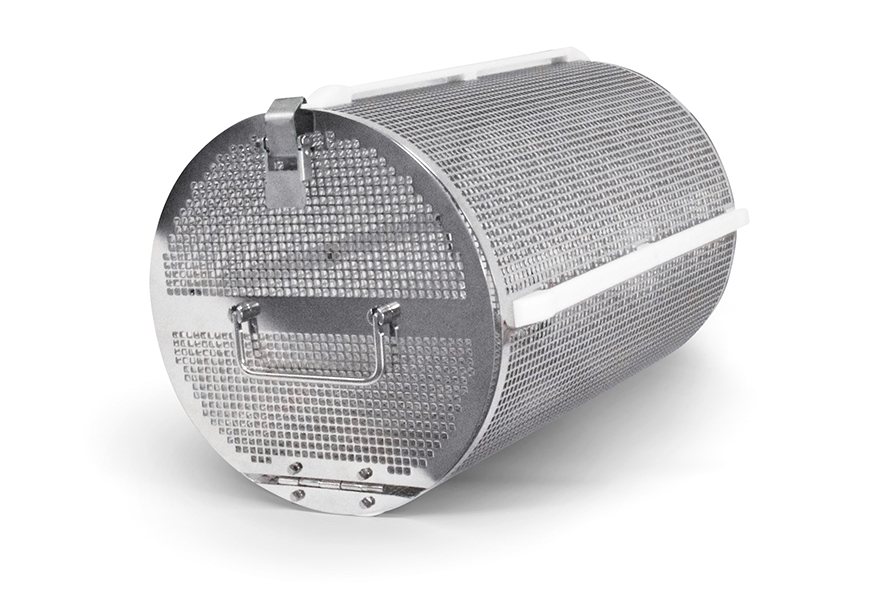

Glide System for stainless steel DPTE® Beta Containers

Glide System

This rounded basket can handle stoppers, caps, etc. The basket can be pulled out of the container to move the parts directly into the hopper of the filling line.

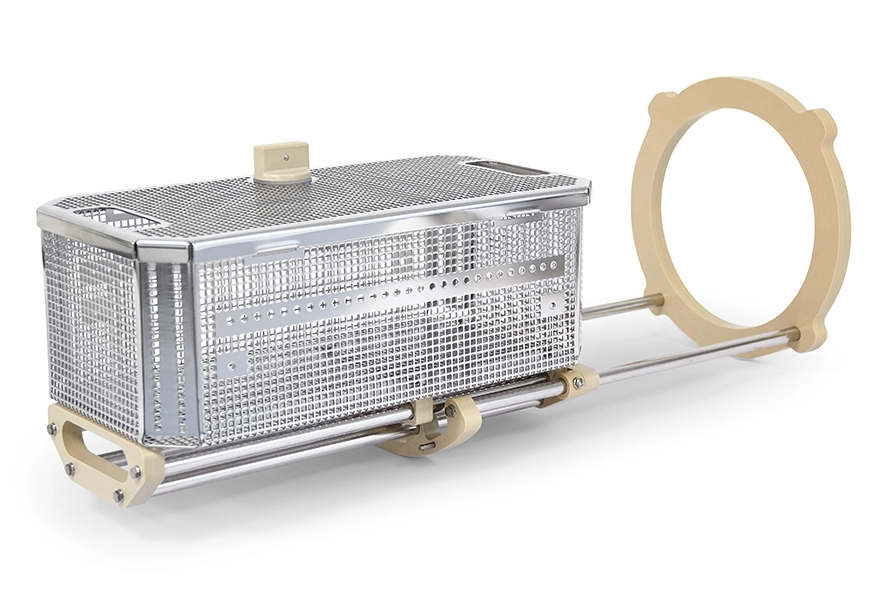

Telescopic System for stainless steel DPTE® Beta Containers

Telescopic System

The basket can be pulled out of the container but remains attached to it. The operator has access to the full rack space.

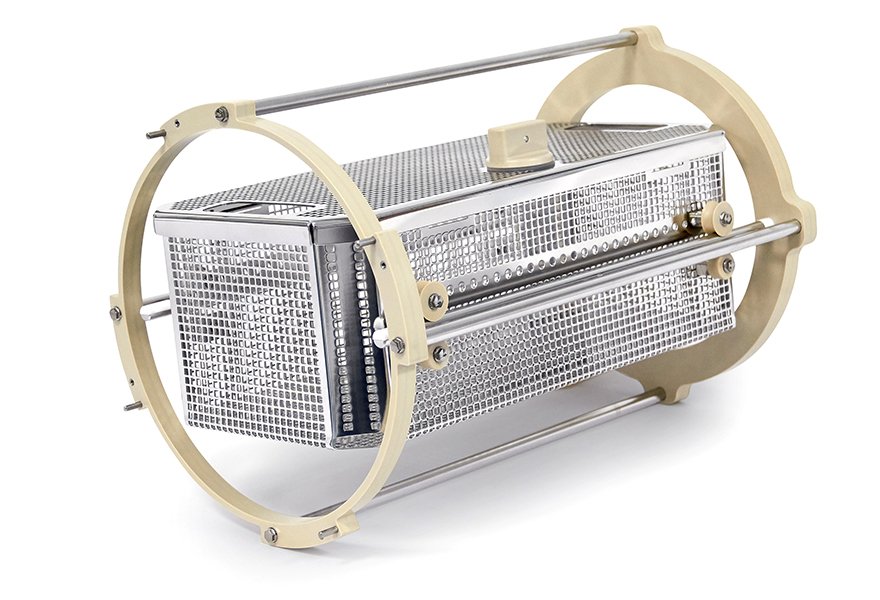

Roller System for stainless steel DPTE® Beta Containers

Roller System

The basket slides on a rail and can be separated from the container. The operator can easily use it outside the container.

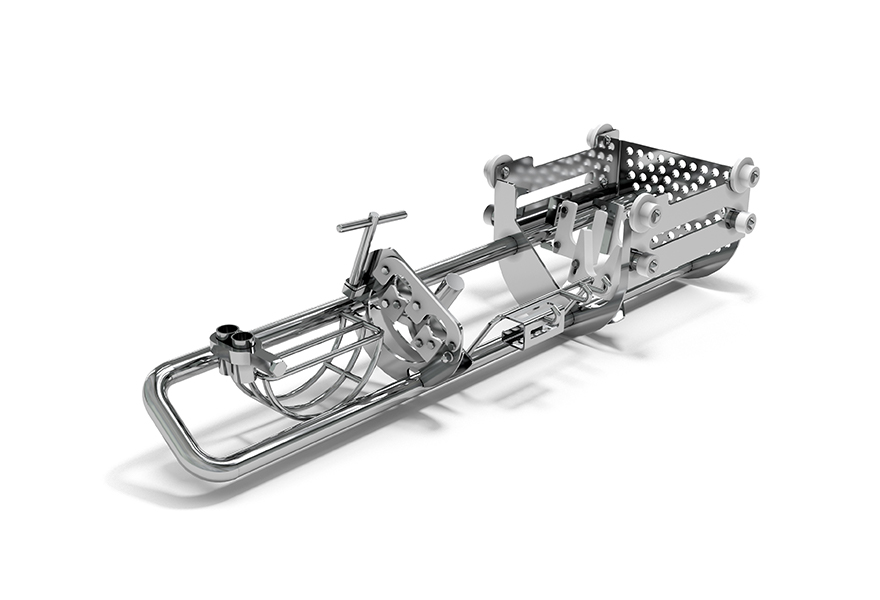

Configurable Rack for stainless steel DPTE® Beta Containers

Configurable Rack

This rack can handle variably sized components using repositionable spacers and pins. It provides a useful solution adaptable to an almost infinite variety of items of equipment.

DPTE® Beta Containers and Racks compatibility





Containers

Standard

Semi-Standard

Configurable

Customized

Racks

Glide system

Telescopic system



Roller system



Configurable rack



Customized rack
