DPTE-BetaBag®

Optimize your production with a single-use DPTE® transfer solution

The DPTE-BetaBag® is a solution for safe, fast, and contamination-free transfer of components to maintain high-speed production.

The DPTE® system is based on the interaction of an Alpha part with a Beta part – each fitted with a door, a lock, and a sealing function.

Single-use beta bags for sterile transfer

  • Fully validated and guaranteed transfer process
  • Significantly reduced risk of biological and particulate contamination
  • Save on validation and on-site cleaning times and costs
  • Optimized productivity
  • A large variety of applications

Based on the DPTE® System - the original rapid transfer port (RTP)

When it comes to securing aseptic transfer, only the original DPTE® system from Getinge gives you the confidence you want and the quality you need.

DPTE® brings you the highest level of production and patient safety, a flexible and cost-effective process along with the assurance of rigorous validation and reliable expert support.

Getinge develops, manufactures, and supports complete RTP solutions:

  • DPTE® Alpha ports
  • Single-use DPTE-BetaBag® and reusable DPTE® Beta Containers
  • DPTE® Transfer Trolley for both bags and containers
  • DPTE® Transfer Leak Testers (TLT)

Watch the video to view the DPTE® System used in the fill-finish process.

Related products

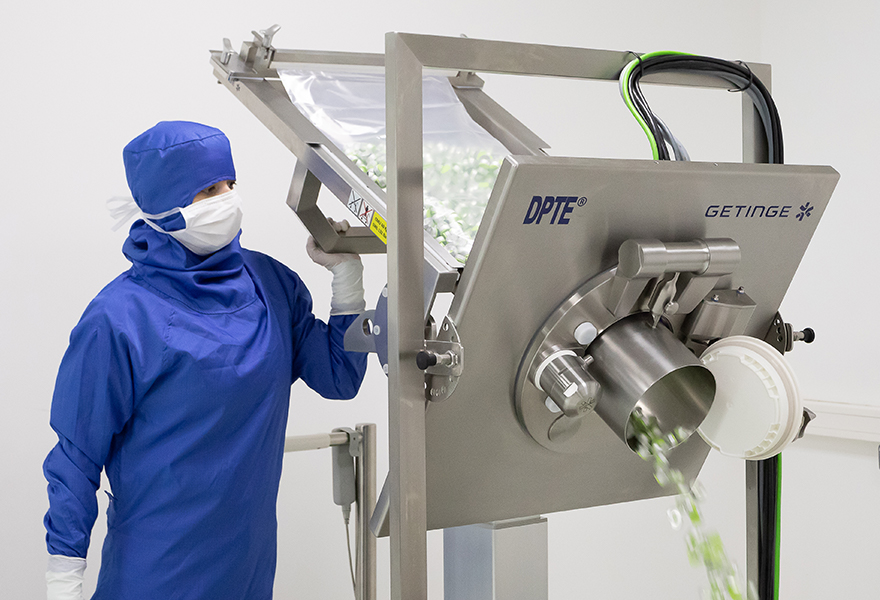

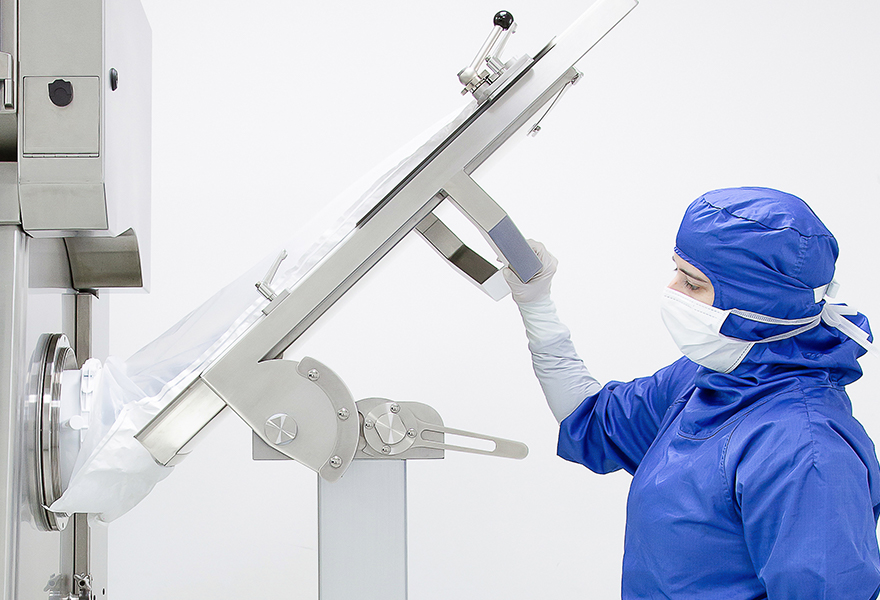

Operator transferring components using the DPTE® System

Optimized production

DPTE-BetaBag® is a flexible and scalable solution that can minimize your investment, production, validation, and maintenance costs:

  • Less equipment
  • Less storage area
  • Less water use
  • Ready To Use (RTU)
  • Ready To Sterilize (RTS)

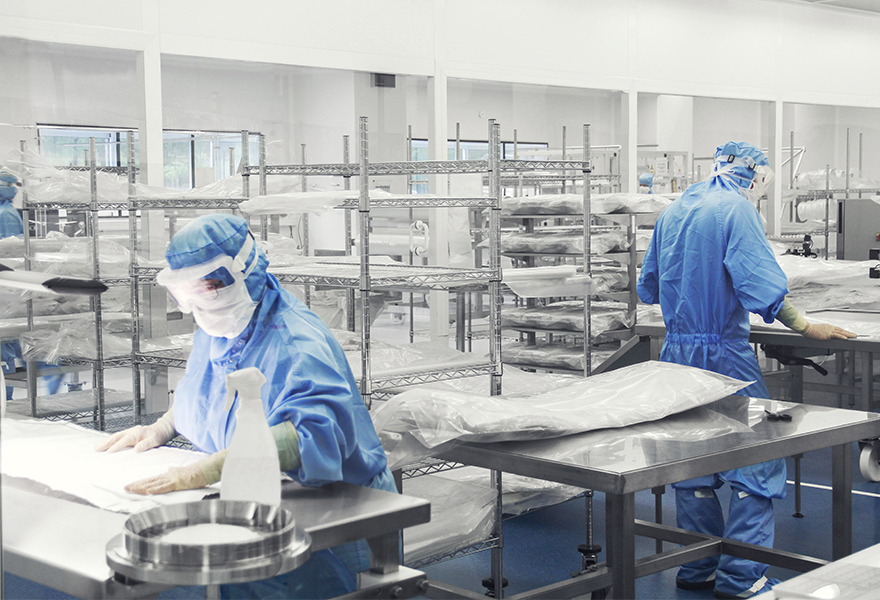

DPTE-BetaBag® production in ISO 5 and ISO 7 cleanrooms

Validated solution

The validation of our DPTE-BetaBag® complies with international regulations:

  • Mechanical validation: leak testing of DPTE® Beta unit, leak testing if bag welded onto DPTE®, seal strength of the bag
  • Sterility validation: gamma irradiation cycle between 25 and 50 kGy
  • Microbiological validation: Bioburden, Endotoxin level
  • Particulate validation

The DPTE-BetaBag® range is assembled in ISO 5 and ISO 7 environments
for ultra-clean production.

DPTE-BetaBag® models

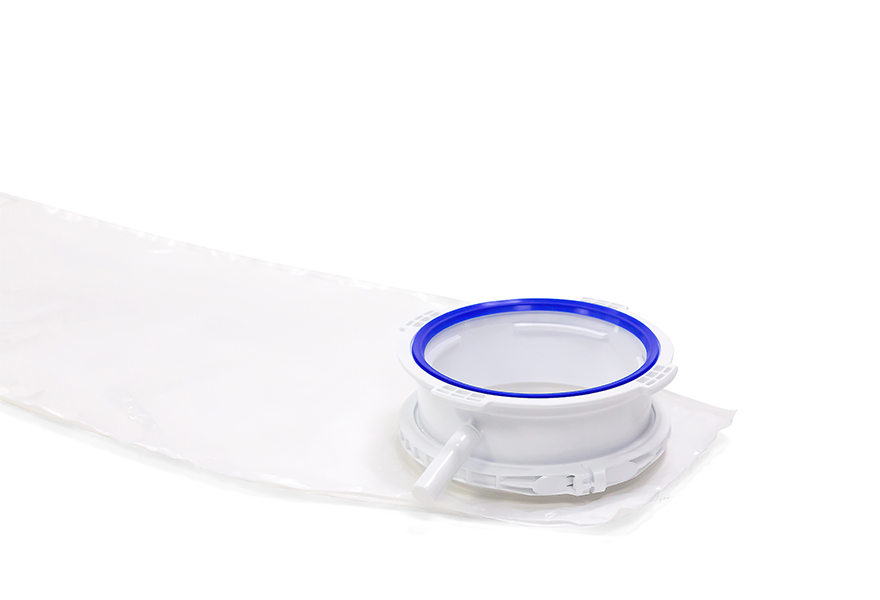

Tyvek DPTE-BetaBag® with components

Tyvek

  • Available in 105 and 190 diameters
  • Useful volumes from 10 to 25 L
  • Single or double bag
  • Main application: component insertion
  • Steam sterilization or EtO

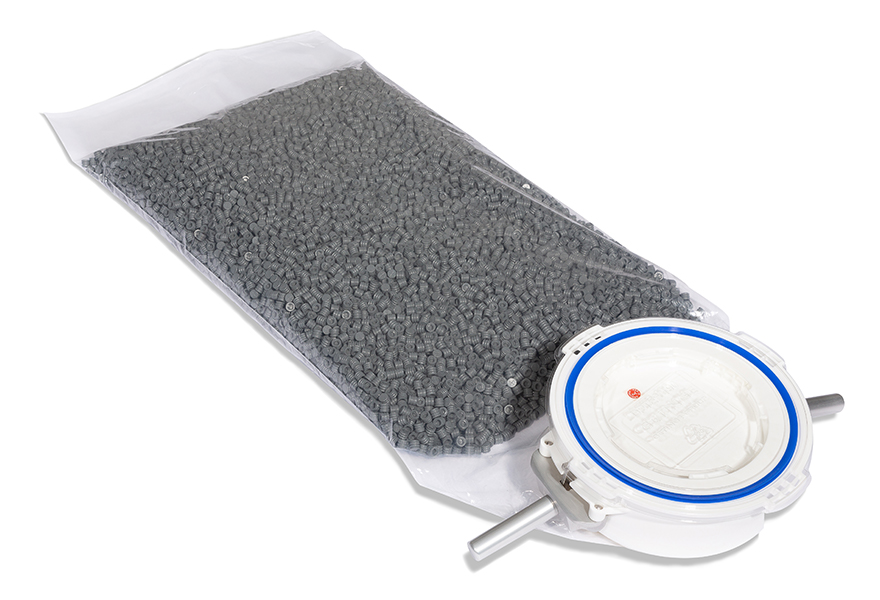

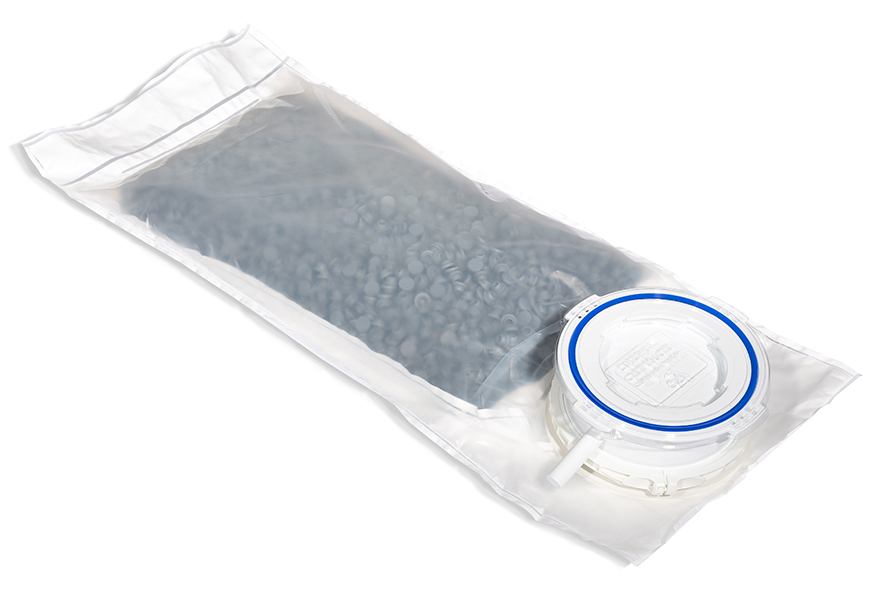

PE DPTE-BetaBag® with components

PE/EVOH/PE

  • Available in 105 and 190 diameters
  • Useful volumes from 10 to 150 L
  • Main application: component insertion
  • Gamma sterilization

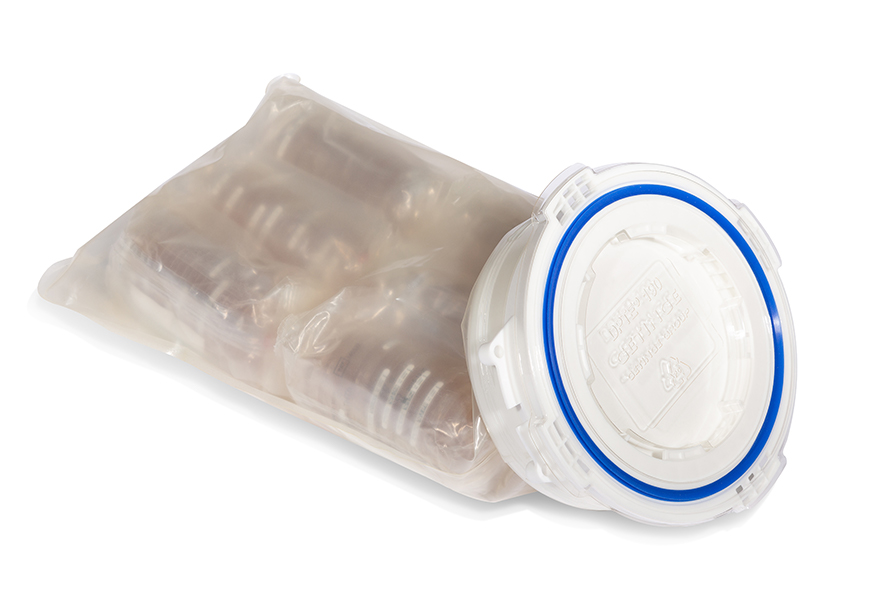

PU DPTE-BetaBag® with Petri dishes

Polyurethane (PU)

  • Available in 105, 190, and 270 diameters
  • Useful volumes from 10 to 150 L
  • Main application: waste disposal, environmental monitoring
  • Gamma sterilization

Many applications

Validated to comply with international regulations, the DPTE-BetaBag® is used in various applications in aseptic and contained production.

Liquid Transfer

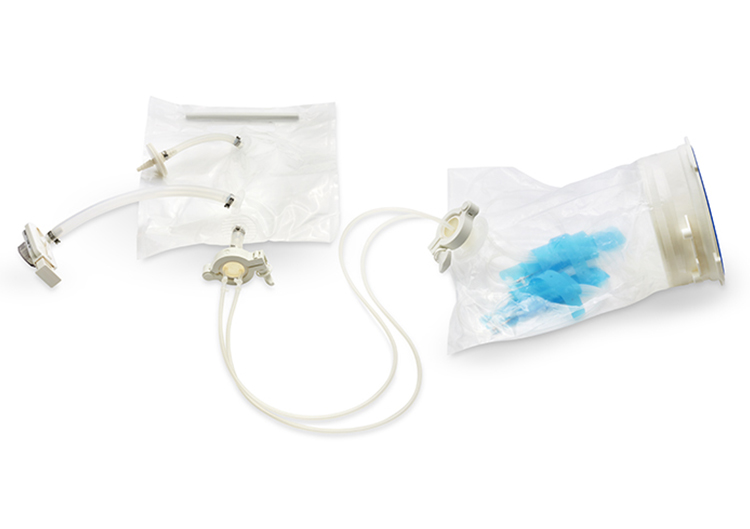

DPTE® Alpha port DPTE-BetaBag liquid transfer filling line

DPTE-BetaBag® for aseptic fluid transfer

  • Available as part of a sterile, single-use filling assembly from our partners – the efficient way to increase manufacturing flexibility and scalability.
  • Enables machine vendors to accommodate multiple products or multiple fill formats and makes it easier to switch between batches.
  • Enables faster transfer with fewer cleaning and sterilization steps and reduced setup times.
  • Ensures the highest safety levels and protects both operators and patients by eliminating the risk of contamination to filling needles or tubing.

We partner with multiple liquid transfer experts to supply the industry standard in single-use aseptic liquid transfer solutions using the single-use DPTE-BetaBag® technology.

Read more about two of our partners.

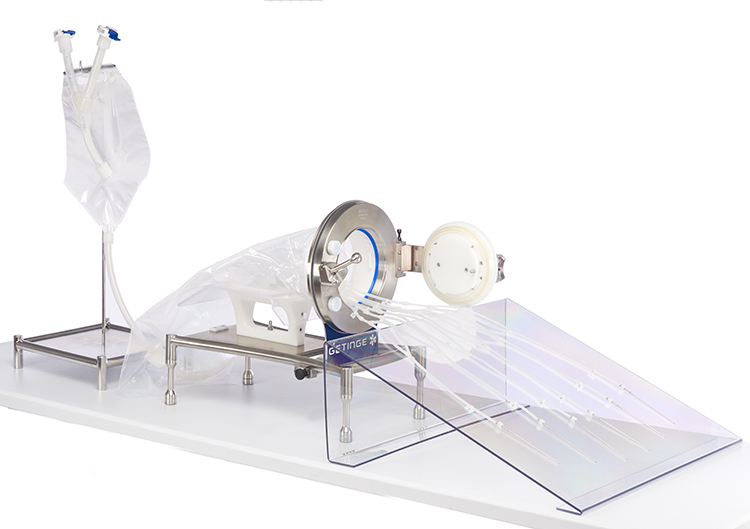

Merck Mobius Final Fill Display using a DPTE-BetaBag®

Merck

The Millipore® portfolio’s Mobius® single-use (SU) final fill assemblies allow you to rapidly respond to manufacturing demands by eliminating cleaning, reducing setup time and minimizing the risk of cross-contamination. These assemblies contain SU components, including sterile connectors, 2D header bags, overmolded 1.5” TC multi-tube manifolds, peristaltic pump tubing, filling needles and the DPTE-BetaBag®. The DPTE-BetaBag® and Alpha port connection enable Mobius® SU components to be safely installed into the filling machine for sterile transfer and filling of the liquid drug product.

Saint Gobain Final Fill Display using a DPTE® Alpha port and DPTE-BetaBag®

Saint-Gobain Life Sciences

Saint-Gobain Life Sciences’ patented overmolding technology in single-use assemblies enables customers to increase productivity, reduce contamination risk, and ensure product integrity. Their vertically integrated components such as Pure- Fit® SIB connectors, BarbLock® retainers, and bioprocess bags, coupled with industry-proven silicone tubing, SPT-60L, can help achieve your critical filling process requirements. Saint-Gobain Life Sciences partners with Getinge for their customizable DPTE-BetaBag® solution: sterile, single-use liquid transfer from source bag to filling needles for demanding aseptic processing environments.

Component Transfer

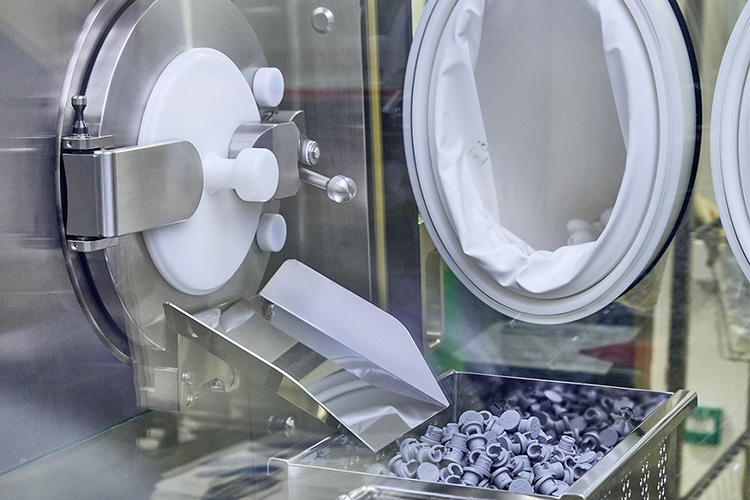

DPTE® Alpha port used for component transfer

DPTE-BetaBag® for component insertion

  • Components such as stoppers, caps, plastic bottles, and plungers can be loaded into a single-use DPTE-BetaBag®.
  • Components can be sterilized inside the bag by the appropriate sterilization method (typically gamma, ethylene oxide, or steam), and delivered to the pharmaceutical production site, ready to use.
  • With pre-filled single-use DPTE-BetaBag® complete sterility is guaranteed, there is no maintenance, no cleaning, no washing, and no prior decontamination.

Environmental Monitoring

PU DPTE-BetaBag® with Petri dishes

DPTE-BetaBag® for Environmental Monitoring (EM)

To control sterility inside isolators, petri dishes can be inserted through DPTE®-BetaBag.

And many more applications...
