Flexible and patient-focused advanced hemodynamic monitoring
PulsioFlex is a flexible platform with intelligent visualization for advanced hemodynamic patient monitoring. Through modular expandability and the availability of our efficient monitoring technologies, the system is able to be adapted to each patient's individual need at any time:
- Meeting your information requirements
- Matching your clinical setting (OR, ER, ICU)
- Adapted to your patient's risk level
Technical specifications are subject to change without further notice
The medical device is CE marked according to Directive 93/42/EEC.
- Brilliant 8" LED color screen with high resolution
- Dark background and wide reading angle (>170°)
Easy to use
- Glass touch screen and intuitive user interface
- Individually adjustable parameter layout
- Minimised dimensions and low weight
- Flexible mounting and installation possibilities
Future-proof platform concept
- Modular expandability with automatic module detection
- Network compatible e.g. print function via hospital network
PulsioFlex is a flexible monitoring platform optimized for perioperative and intensive care monitoring.
It can be adapted to individual needs in order to answer the following questions:
Detection of perioperative and intensive care deterioration of hemodynamics:
- Is the systemic oxygen supply stable?
CO Trend, ScvO2
- Will an increase in preload lead to a higher CO?
SVV / PPV
Pre- and intra-operative volume optimization:
PiCCO / ProAQT
- Is the patient adequately filled?
CO, preload, lung water, volume responsiveness SVV / PPV
Detection of patients with increased post-operative risk profile:
CeVOX / LiMON
- Is there or was there hypoxia?
Continuous ScvO2 monitoring
- Is there increased risk due to liver dysfunction/reduced splanchnic perfusion?
PDRICG – global liver function
Post-operative management of haemodynamic complications:
PiCCO / CeVOX
- Adequate oxygen supply?
- Volume or catecholamines?
CO, preload, contractility, afterload
- Does an increase in preload lead to a higher CO? Volume responsiveness SVV / PPV
- Risk of volume overload?
Special risk and function monitoring in liver surgery:
- Is there graft dysfunction post liver transplantation?
PDRICG – global liver function
- Is the remaining liver function enough to withstand a planned liver resection? PDRICG – global liver function
*This parameter will not be available on the PulsioFlex monitor from software version 5.0
At a certain point you will need more information about your patient’s hemodynamic condition
Professional arterial flow* CO trend monitoring with ProAQT:
- CO trend monitoring via a standard arterial catheter line
- Manual and automatic calibration possible
- Validated start value determination and PiCCO based pulse contour algorithm for beat by beat cardiac output trend
* the Q of ProAQT is the physical symbol for flow

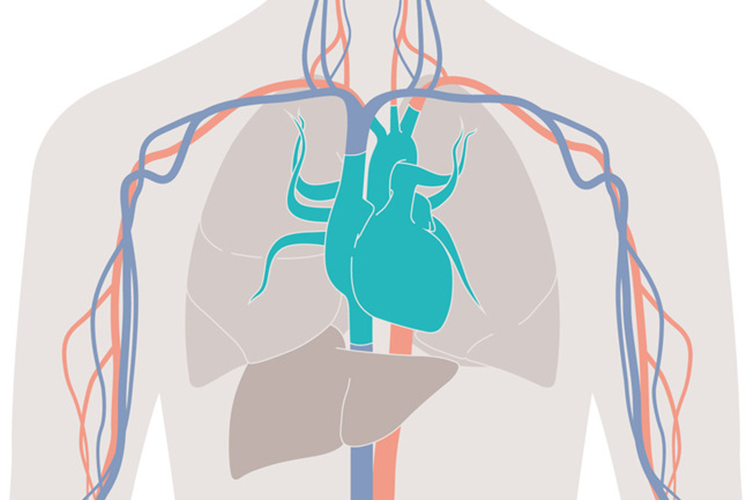

Complete hemodynamic monitoring with PiCCO:
- Calibrated real-time CO and stroke volume
- Determination of preload volume and diagnosis of pulmonary oedema
- Afterload, contractility and volume responsiveness

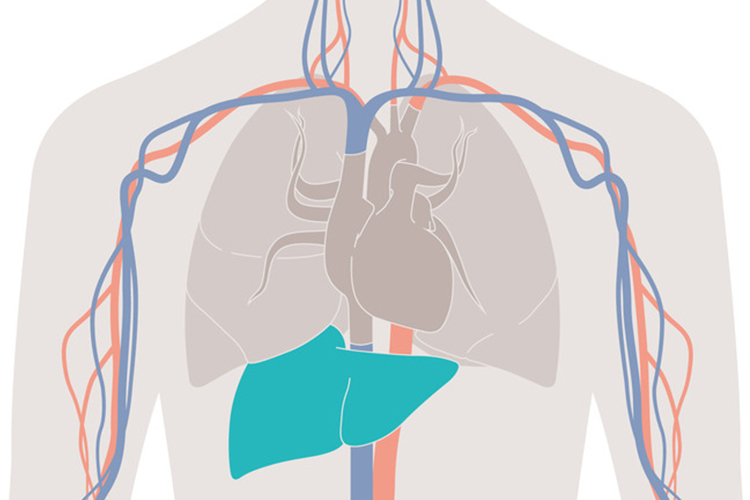

Liver function monitoring with LiMON:
- Liver function test available at the bedside
- Non-invasive measurement of the plasma disappearance rate of indocyanine green (PDRICG)
- High specificity and sensitivity for liver dysfunction

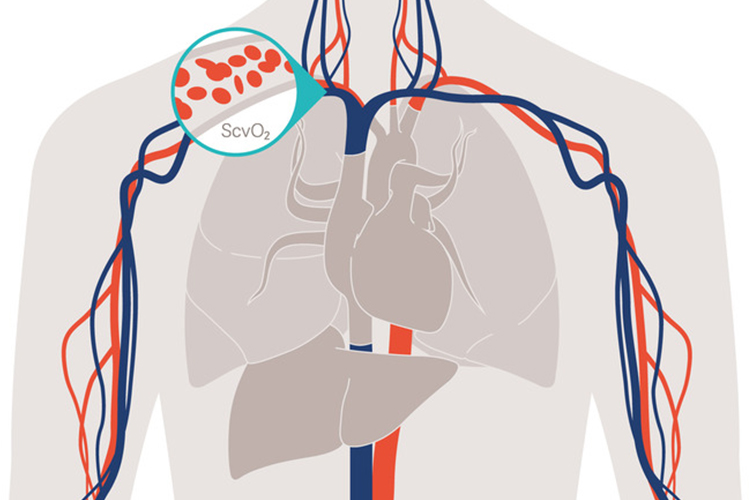

Continuous ScvO2 monitoring with CeVOX:
- Fiberoptic measurement via standard CVC
- Calculation of oxygen extraction O2 ER
- Assessment of oxygen balance (O2 delivery vs. O2consumption)
Pulse contour analysis (continuous)
|Blood Pressure||APsys, APdia, MAP||APsys, APdia, MAP||APsys, APdia, MAP|
|Flow||CITrend/Cal**, SVI||CITrend/Cal**, SVI||CIPC*, SVI|
|Contractility||dPmx, CPI||dPmx, CPI||dPmx, CPI|
|Pulmonary edema||ELWI, PVPI|
|Liver function||PDR, R15|
Getinge is a medical device manufacturer and does not practice medicine. Getinge does not recommend these values for use on a specific patient.
* Cardiac index derived from pulse contour
** Calibrated from internal or external reference value
*** Cardiac index derived from thermodilution
Marketing Sales - Brochures
The PulsioFlex Platform for advanced hemodynamic patient monitoring is easily adaptable to every patient’s individual needs and specific physician requirements, at all times.
Improve your knowledge with our eLearning and training courses
At Getinge Educational Institute, we have dedicated material for topics related to Intensive Care, Cardiovascular Procedures, Operating Room and Sterile Processing. We can support you with information about current technologies and best practices to boost your performance and productivity.
For more information about our onsite events or remote trainings, you can also contact your local sales & service representative.
